Hardware Installation Manual 38 Document #: LTRT-10764
Mediant 500 MSBR
Cable specifications:
Cable: 26-AWG min. wire
Connector: RJ-11
Connector Pinouts:
Table 5-2: RJ-11 Connector Pinouts for xDSL
Pin Function
3 CH0 – P/TIP
4 CH0 – N/RING
1 Not connected
2 Not connected
5 Not connected
6 Not connected
To connect the WAN xDSL WAN port:
1. Connect an RJ-11 cable connector to the device’s xDSL WAN port (labeled
V/ADSLoPOTS).

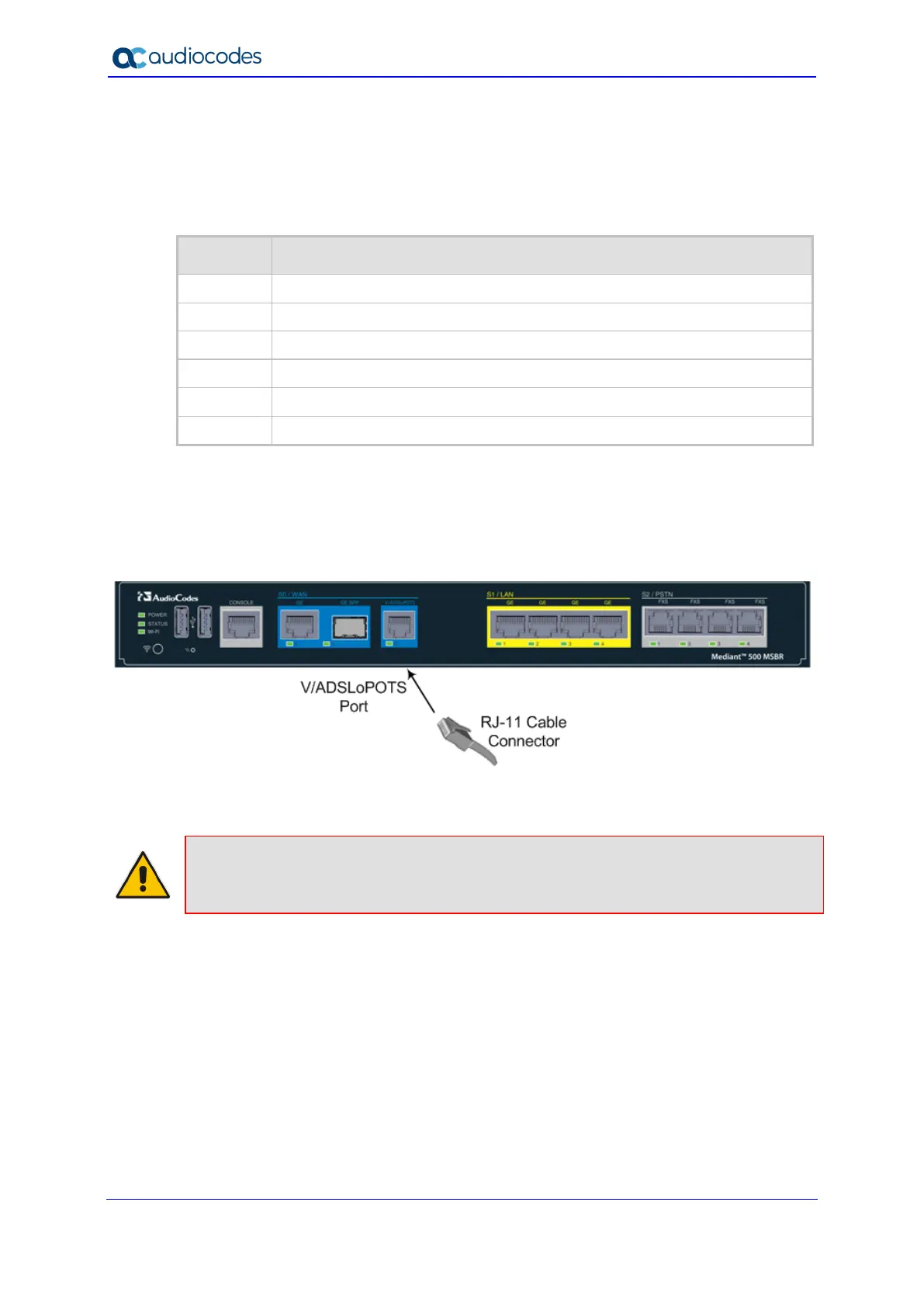

Figure 5-5: Cabling the xDSL WAN Port
2. Connect the other end of the cable to the access point.
Note: The xDSL filter/splitter should be provided by your service provider.
