Hardware Installation Manual 24 Document #: LTRT-10764
Mediant 500 MSBR
4.2 Wall Mounting
You can mount the device on a wall, using a special wall-mounting bracket. The bracket
enables you to hang the device in a horizontal (rear panel facing up) or vertical (rear panel
facing right) position. The bracket is a customer-ordered item and is shipped in a kit of five
wall-mounting brackets. The areas of the wall-mounting bracket are shown below:

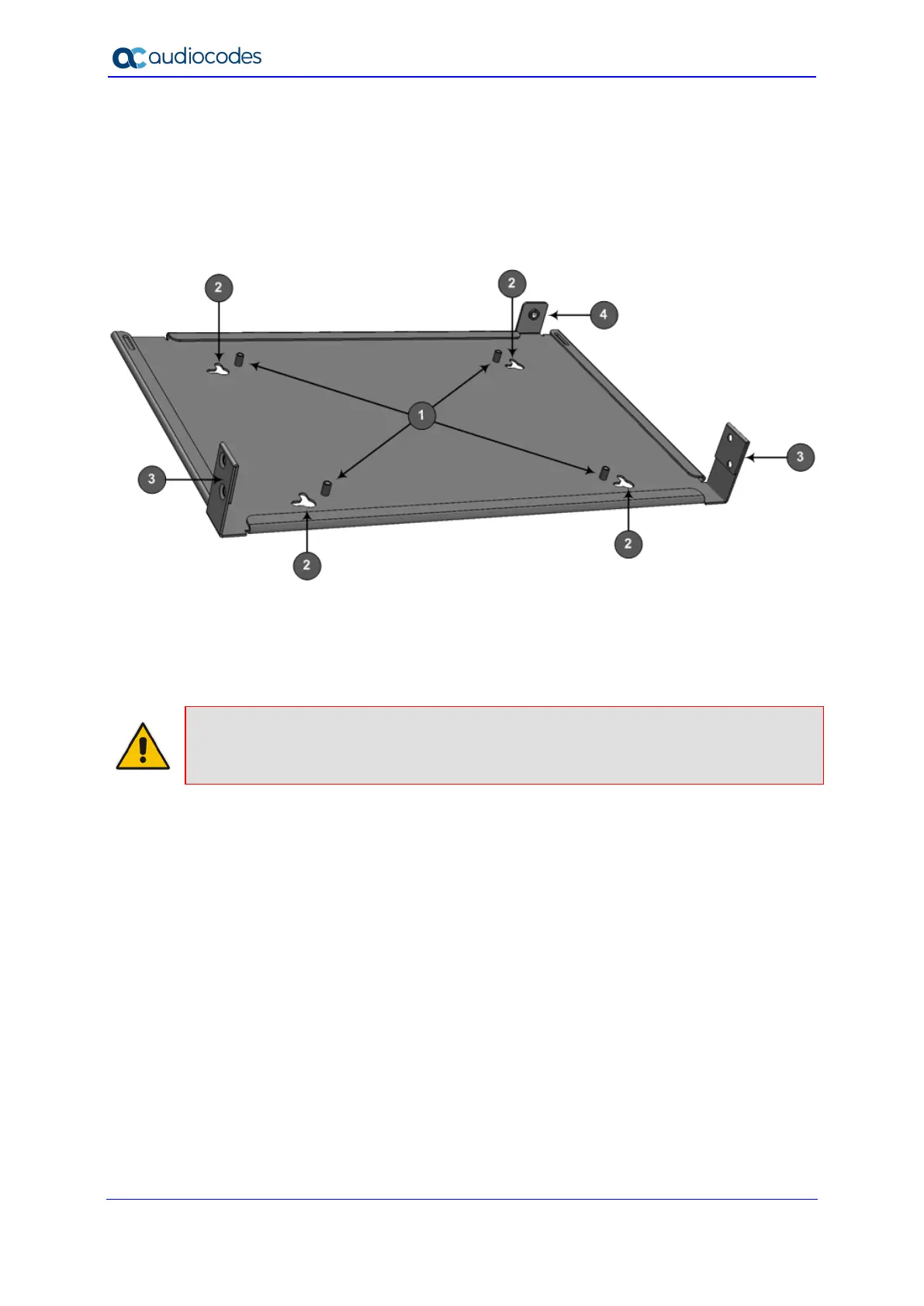

Figure 4-2: Wall-Mounting Bracket Parts
• 1 - Spacers to separate the device from the bracket.
• 2 - Keyholes for hanging the bracket on the wall.
• 3 - Screw-holes for attaching the bracket to the device's side panels
• 4 - Ground-screw hole for attaching the bracket to the device's grounding hole.
Note: When choosing the area on the wall to mount the device, make sure that sufficient
space is available for attaching the cables on the front and rear panels.
To mount the device on a wall:
1. Mark the drilling locations of the four mounting holes on the wall. You can use the wall-
mounting bracket as a template. Place the bracket flat against the wall in the desired
hanging orientation - horizontal or vertical (see figures below). Make sure that the
bracket is horizontal with the floor (you can use a level). With a pencil, stencil the
keyholes on the wall.
