Hardware Installation Manual 26 Document #: LTRT-10764
Mediant 500 MSBR

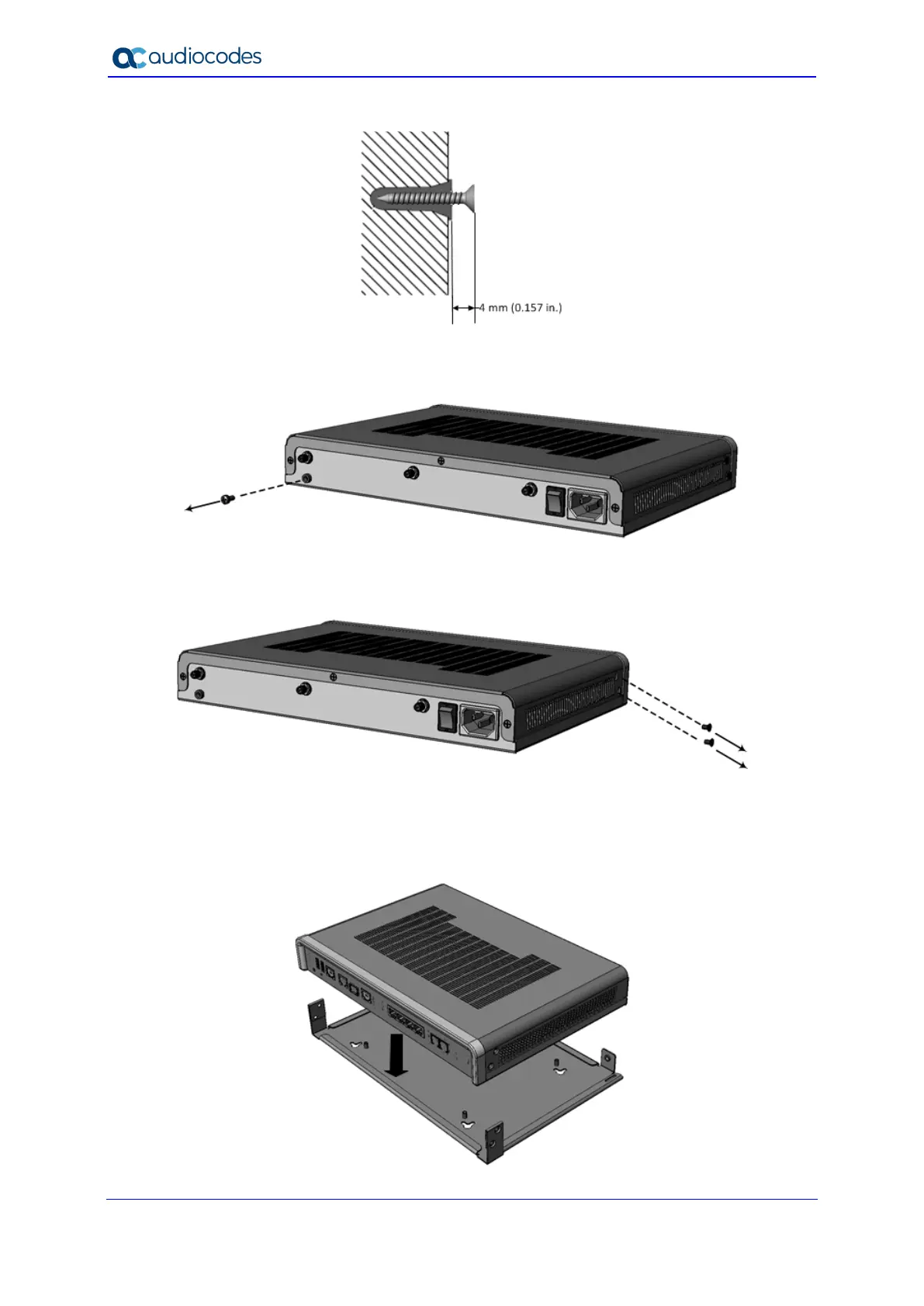

Figure 4-5: Protruded Screw Distance from Wall Surface
5. Using a Phillips-head screwdriver, remove the grounding-lug screw located on the rear
panel (keep the screw in a safe place for later use):
Figure 4-6: Removing Ground Screw
6. Using a Phillips-head screwdriver, remove the two screws located on the left- and
right-side panels (keep the screws in a safe place for later use):
Figure 4-7: Removing Side-Panel Screws
7. Place the bracket on a flat surface, and then with two hands, hold the device above the
bracket so that its bottom panel faces the bracket and its rear panel is on the same
side as the bracket's grounding-screw hole. Gently lower the device into the bracket
until it snaps into place:
Figure 4-8: Lowering Device into Wall-Mounting Bracket
