Hardware Installation Manual 40 Document #: LTRT-10764
Mediant 500 MSBR
Cable specifications:
Cable: 26-AWG min. wire
Connector: RJ-45
Connector Pinouts:
Table 5-3: RJ-45 Connector Pinouts for SHDSL
Left RJ-45 Port Right RJ-45 Port
Pin Function Pin Function
1 CH1-TIP 1 CH2-TIP
2 CH1-RING 2 CH2-RING
3 Not used 3 Not used
4 CH0-TIP 4 CH3-TIP
5 CH0-RING 5 CH3-RING
6 Not used 6 Not used
7 Not used 7 Not used
8 Not used 8 Not used
To connect the WAN SHDSL port:
1. Connect an RJ-45 SHDSL cable to the device’s SHDSL WAN port (labeled SHDSL).

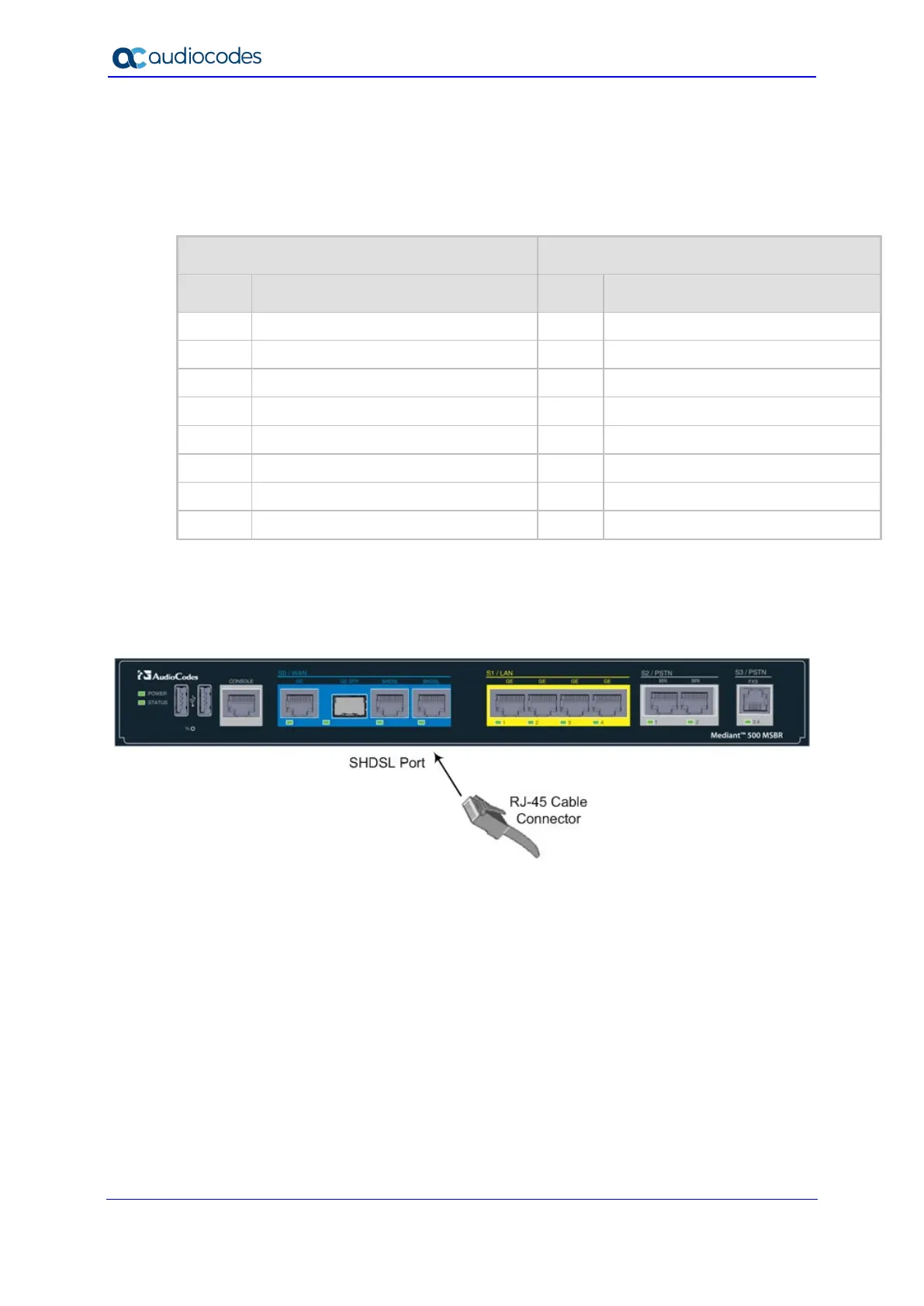

Figure 5-6: Cabling the SHDSL WAN Port
2. Connect the other end of the cable to the access point.
