MSBR Series 47 Mediant 500 MSBR
Hardware Installation Manual 5. Cabling the Device
To connect the FXS interfaces:
1. Connect one end of an RJ-11 cable to an FXS port (labeled FXS).

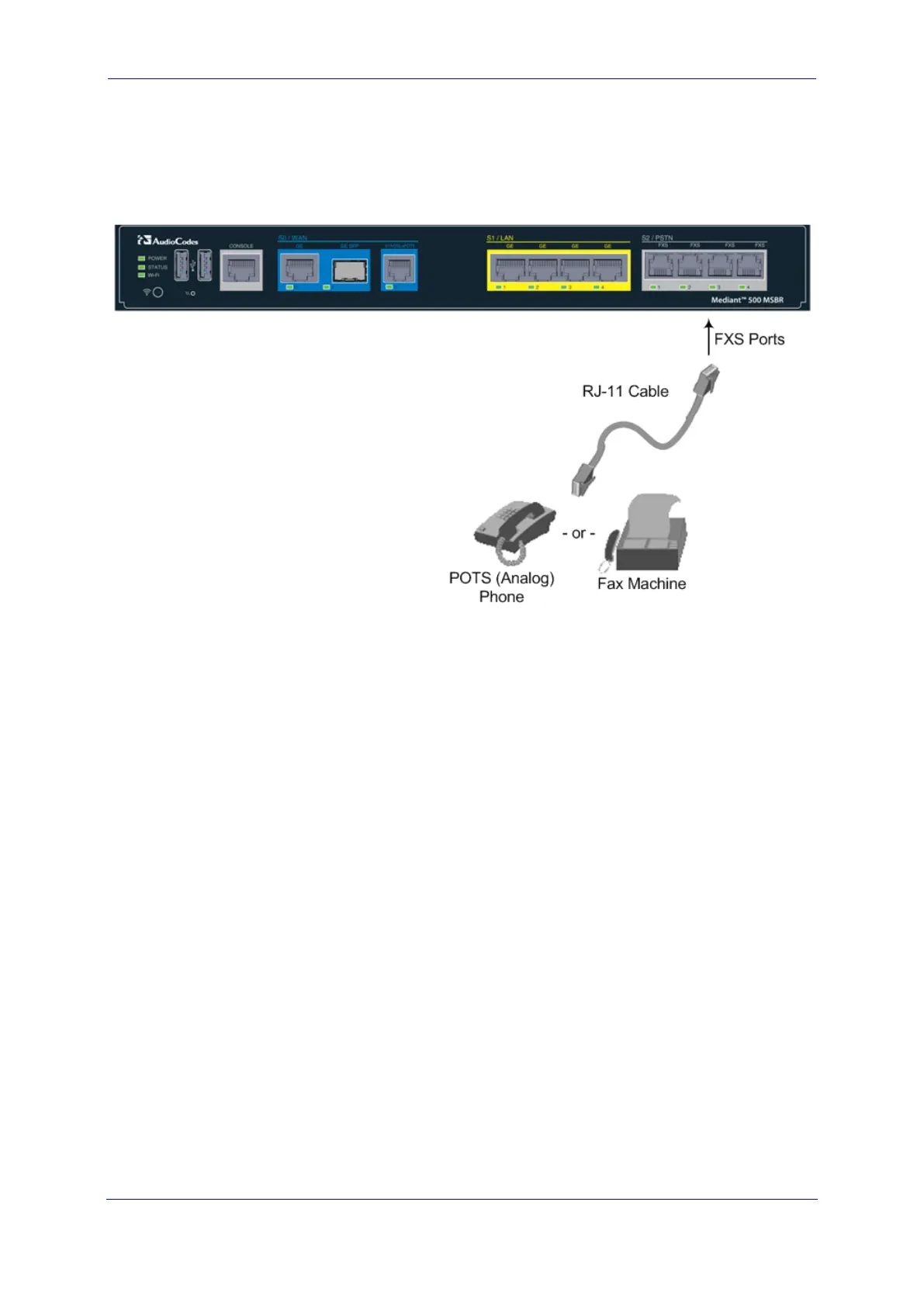

Figure 5-15: Connecting FXS Interfaces
2. Connect the other end of the cable to the required telephone interface (e.g., fax
machine, dial-up modem, or analog POTS telephone).
