Hardware Installation Manual 30 Document #: LTRT-10764
Mediant 500 MSBR
4.3.2 Using Mounting Brackets
The procedure below describes how to mount the device in a 19-inch rack. Rack mounting
involves placing the device on a pre-installed rack shelf and then attaching the device's
mounting brackets to the device and rack frame. The purpose of the mounting brackets is to
secure the device to the rack.

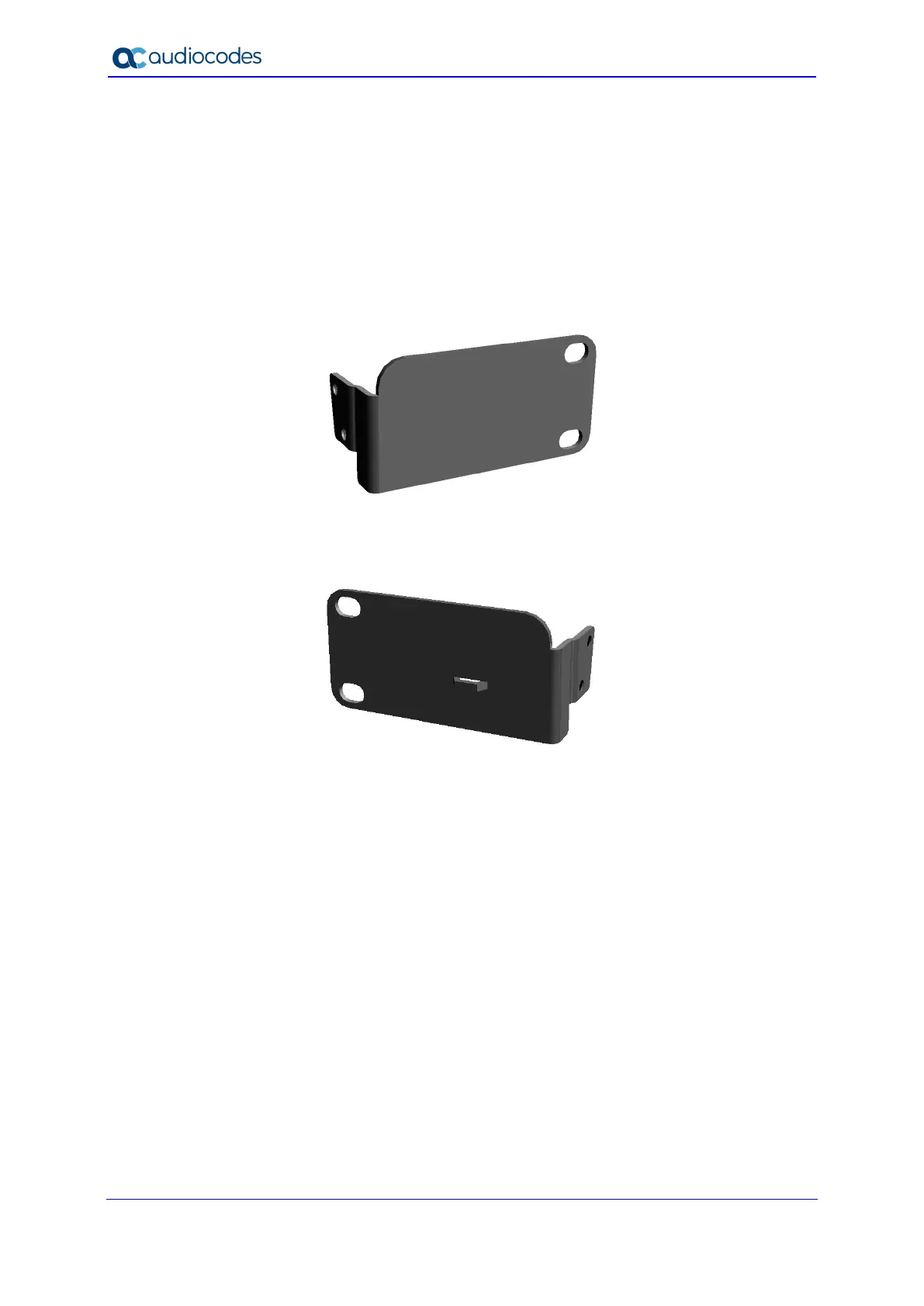

Two mounting brackets are provided:
Left mounting bracket:
Figure 4-15: Left Mounting Bracket
Right mounting bracket with hole for looping through an optional cable tie (not
supplied) for securing cables:
Figure 4-16: Right Mounting Bracket
