7.4. Optional indications
7.4.1. Mechanical position indication (self-adjusting)

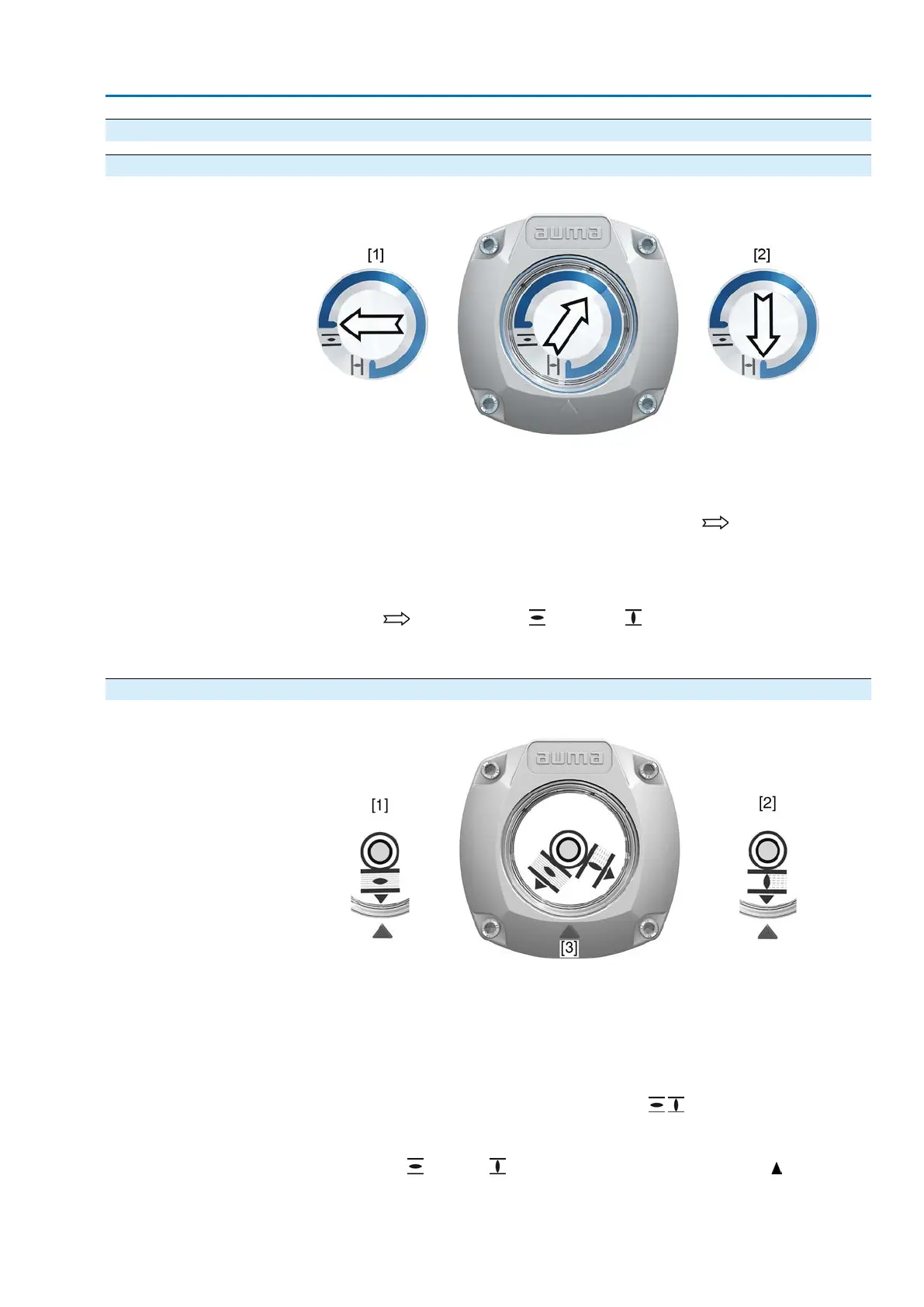

Figure 62: Mechanical position indicator
[1] End position OPEN reached
[2] End position CLOSED reached
Characteristics
●
Independent of power supply
●
Used as running indication: Indicator disc (with arrow ) rotates during actu-
ator operation and continuously indicates the valve position
(For “clockwise closing version”, the arrow rotates in clockwise direction for
operation in direction CLOSE)
●
Indicates that end positions (OPEN/CLOSED) have been reached
Arrow points to symbol (OPEN) or (CLOSED)
●
Self-adjusting upon commissioning
(The cover does not have to be opened)
7.4.2. Mechanical position indication via indicator mark
Figure 63: Mechanical position indicator
[1] End position OPEN reached
[2] End position CLOSED reached
[3] Indicator mark at cover
Characteristics
●
Independent of power supply
●
Used as running indication: Indicator disc rotates during actuator operation and
continuously indicates the valve position
(For “clockwise closing version”, the symbols / rotate in counterclockwise
direction for operation in direction CLOSE)
●
Indicates that end positions (OPEN/CLOSED) have been reached
(Symbols (OPEN)/ (CLOSED) point to the indicator mark at cover)
51
SA 07.2 – SA 16.2/SAR 07.2 – SAR 16.2 Control unit: electronic (MWG)
AC 01.2 Non-Intrusive HART Indications

AUMA SA Series Specifications

General

Torque range	10 Nm to 32, 000 Nm
Protection class	IP68
Ambient temperature	+70°C
Voltage	24V DC
Communication	PROFIBUS DP, MODBUS RTU, Foundation Fieldbus
Certifications	ATEX, IECEx, CSA, GOST, SIL
Control	Local, Remote, Bus (PROFIBUS, MODBUS)
