AUMA SA Series Operation Instructions

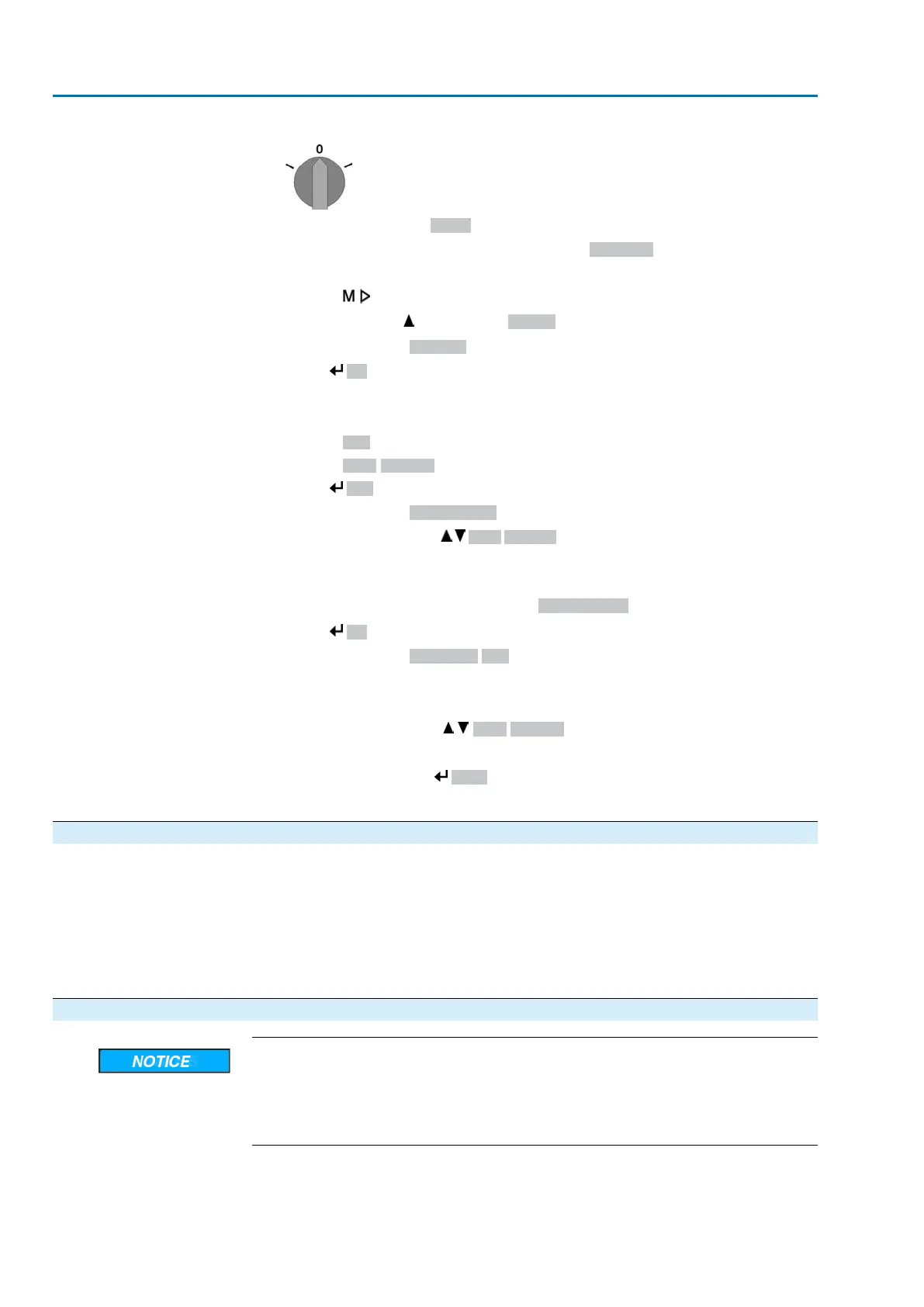

Select main menu
1. Set selector switch to position 0 (OFF).
2.
Press push button C Setup and hold it down for approx. 3 seconds.
➥
Display goes to main menu and indicates: ▶ Display...
Set HART address
3. Select parameter either:
→
(by clicking through the menu)
→
or press and enter ID M0098 (direct selection)
➥
Display indicates: Address
4.
Press Ok.
➥
Display shows the set address.
5. The bottom row of the display indicates:
→
Edit→ continue with step 6
→
Up ▲ Down ▼ → continue with step 10
6.
Press Edit.
➥
Display indicates: Observer (1)
7.
Select access level via Up ▲ Down ▼ resulting in the following significations:
→
black triangle: ▶ = current setting
→
white triangle: ▷ = selection (not yet saved)
Information: Required access level: Specialist (4) or higher
8.
Press Ok.
➥
Display indicates: Password 0***
9.
Enter password (→ enter password).
➥
Display shows the set address.
10.
Enter new address via Up ▲ Down ▼.
Information: The address range is displayed in round brackets on the screen.
11.
Confirm selection via Save.
➥
The HART address setting is complete.
9.5. Test run
Only perform test run only once all settings previously described have been
performed.
The direction of rotation can be checked at the position indicator if available. (Chapter
<Direction of rotation at mechanical position indicator: check>)
The direction of rotation must be checked at the hollow shaft/stem if no mechanical
position indicator is available. (Chapter <Direction of rotation at hollow shaft/stem:
check>)
9.5.1. Direction of rotation at mechanical position indicator: check
Valve damage due to incorrect direction of rotation!
→
If the direction of rotation is wrong, switch off immediately (press STOP).
→
Eliminate cause, i.e. correct phase sequence for cable set wall bracket.
→
Repeat test run.
Information Switch off before reaching the end position.
1. Move actuator manually to intermediate position or to sufficient distance from
end position.
58
SA 07.2 – SA 16.2/SAR 07.2 – SAR 16.2 Control unit: electronic (MWG)
Commissioning (basic settings) AC 01.2 Non-Intrusive HART

AUMA SA Series Specifications

General

Torque range	10 Nm to 32, 000 Nm
Protection class	IP68
Ambient temperature	+70°C
Voltage	24V DC
Communication	PROFIBUS DP, MODBUS RTU, Foundation Fieldbus
Certifications	ATEX, IECEx, CSA, GOST, SIL
Control	Local, Remote, Bus (PROFIBUS, MODBUS)
