AUMA SAEx 16.2 Operation Manual

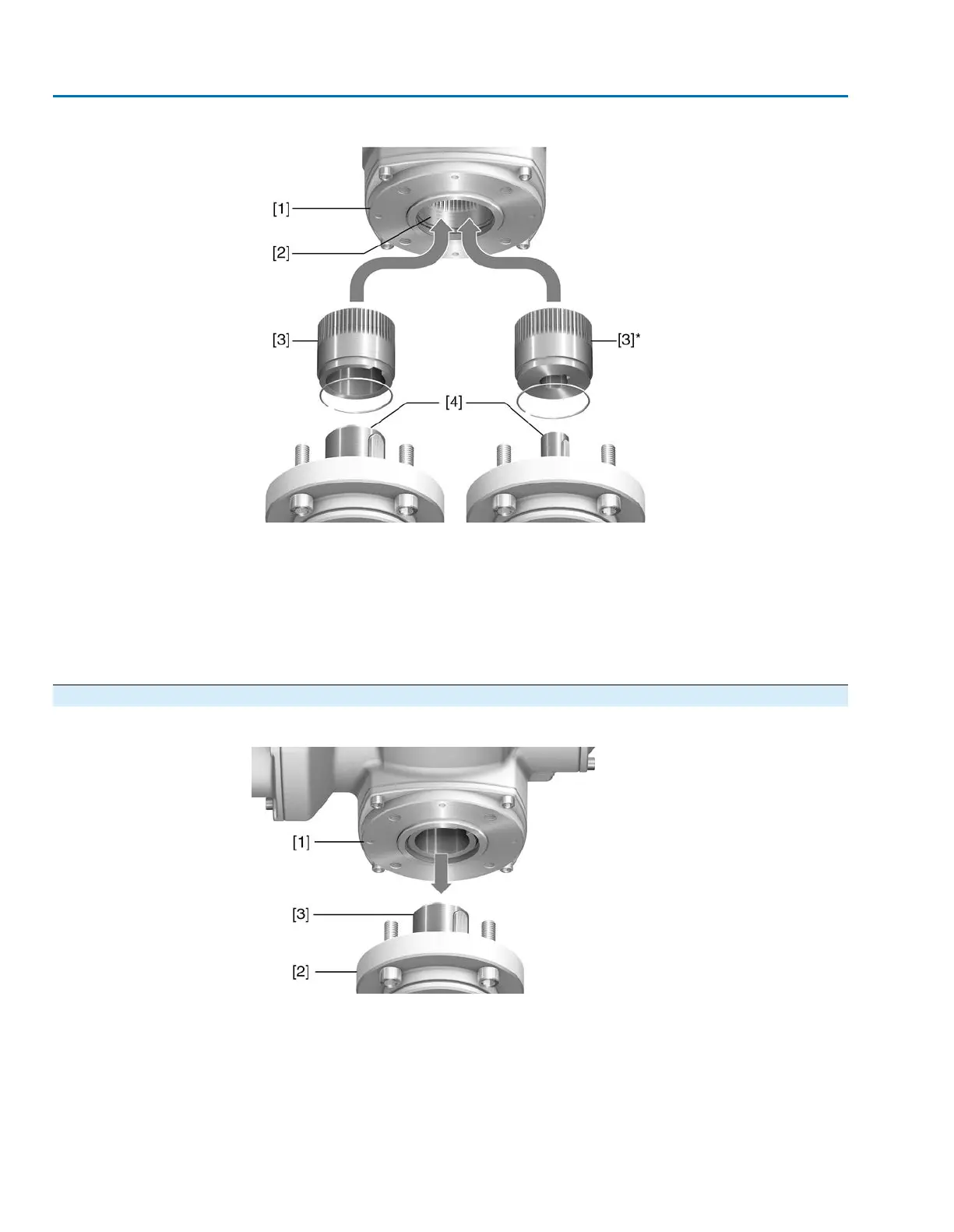

Figure 9: Output drive type B
[1] Multi-turn actuator flange (e.g. FA07)
[2] Hollow shaft
[3] Output drive sleeve (illustration examples)
[3] B/B1/B2 and [3]* B3/B4, respectively with bore and keyway
[4] Gearbox/valve shaft
Information Spigot at valve flanges should be loose fit.
4.3.2.1. Multi-turn actuator with output drive types B: mount to valve/gearbox
Figure 10: Mounting output drive types B
[1] Multi-turn actuator
[2] Valve/gearbox
[3] Valve/gearbox shaft
1. Check if mounting flanges fit together.
2. Check, if output drive of multi-turn actuator [1] matches the output drive of
valve/gearbox or valve/gearbox valve shaft [2/3].
16
SAEx 07.2 – SAEx 16.2 / SAREx 07.2 – SAREx 16.2
Assembly
