AUMA SAEx 16.2 - Connecting Via Ex Plug & Socket Connector with Terminal Blocks (KES); Terminal Compartment: Open

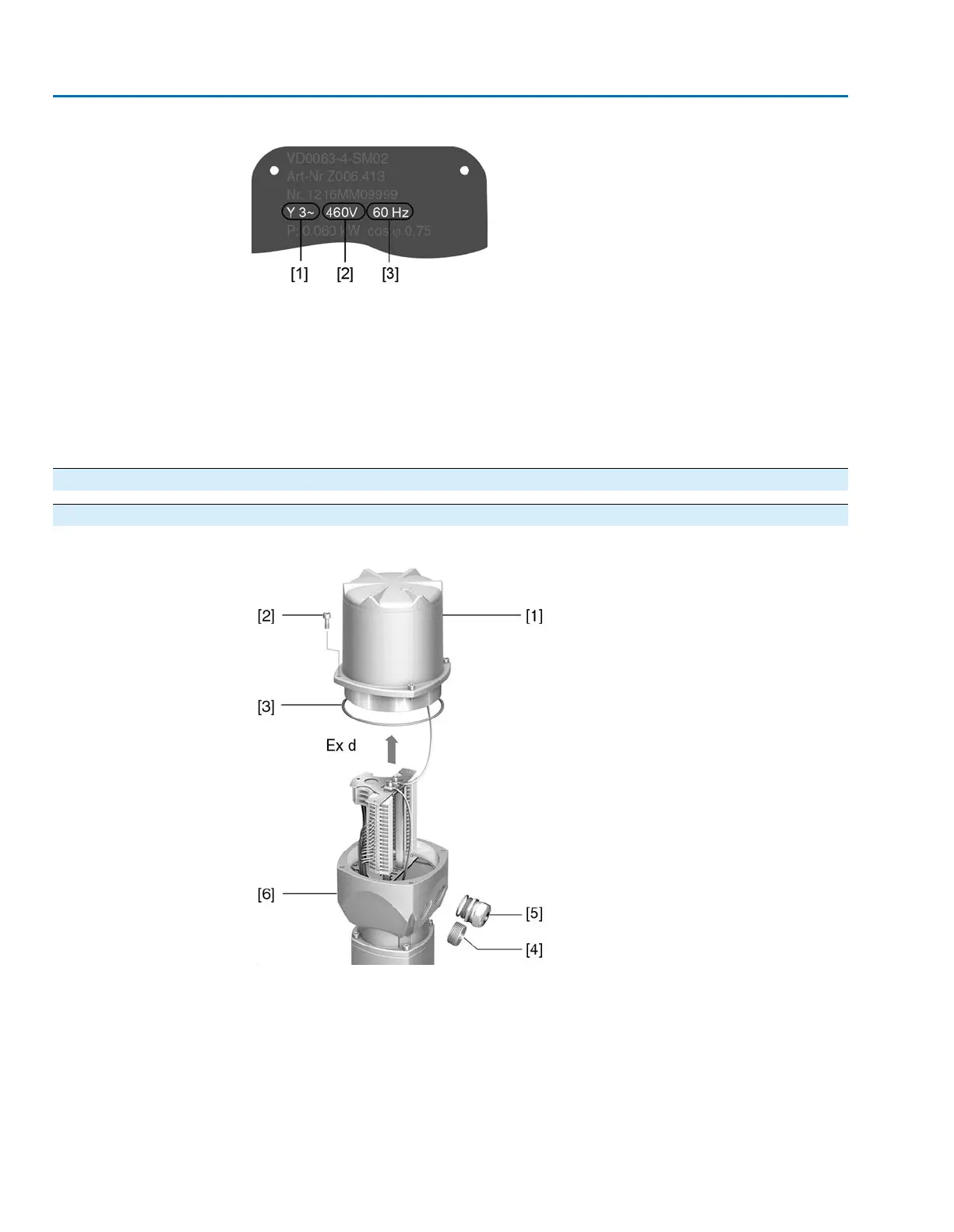

Figure 12: Motor name tag (example)
[1] Type of current
[2] Mains voltage
[3] Mains frequency (for 3-ph and 1-ph AC motors)
Connecting cables
●
Use suitable (voltage-proof) cables. Specify cables for the highest occurring rated
voltage.
●
Use connecting cables with a minimum temperature range of 165 °F (+80 °C).
●
For connecting cables exposed to UV radiation (outdoor installation), use UV resis-
tant cables.
5.2. Connecting via Ex plug & socket connector with terminal blocks (KES)
5.2.1. Terminal compartment: open
Figure 13: Terminal compartment: open
[1] Cover
[2] Screws for cover
[3] O-ring
[4] Blanking plugs
[5] Cable gland
[6] Frame
20
SAEx 07.2 – SAEx 16.2 / SAREx 07.2 – SAREx 16.2
Electrical connection
