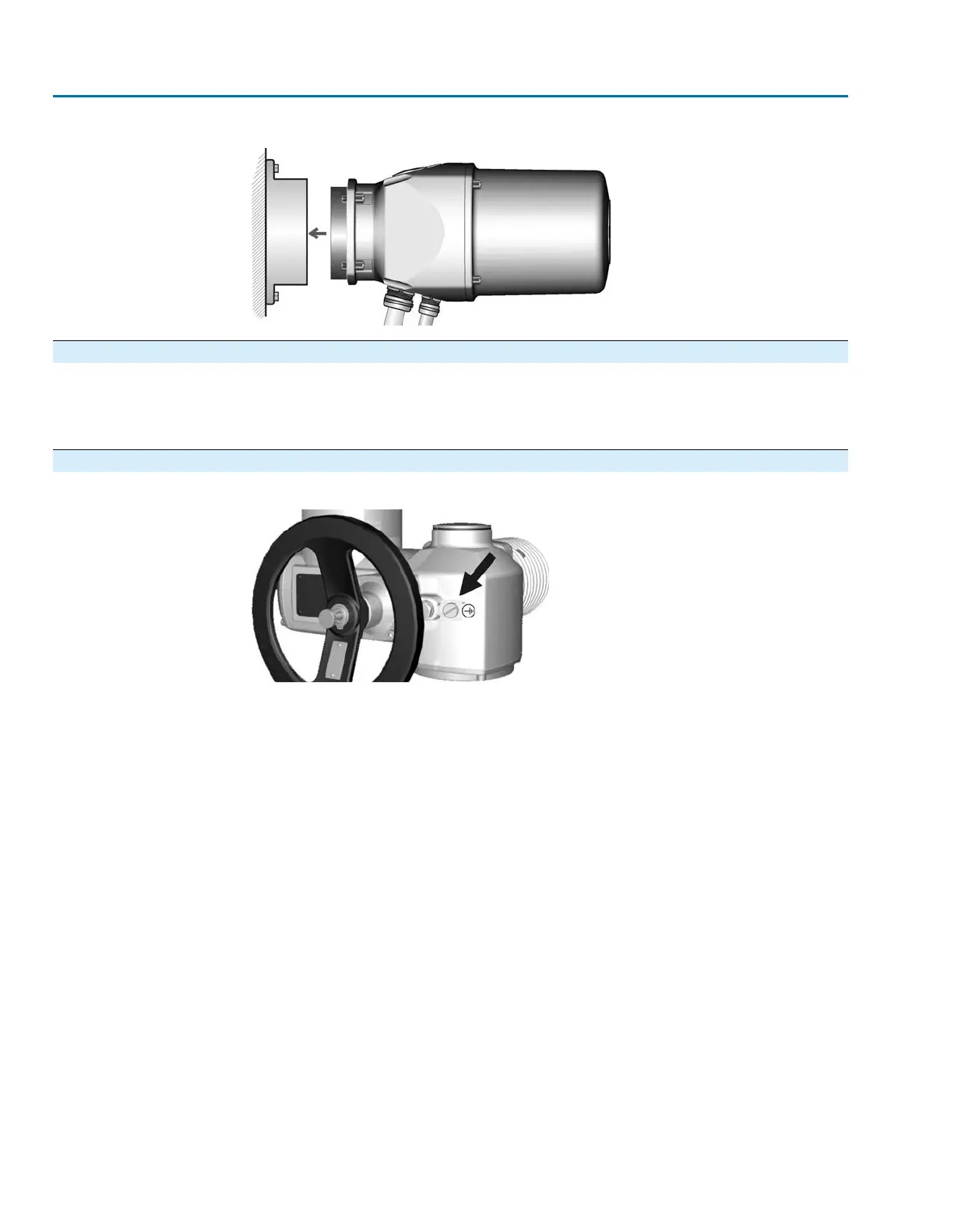

Figure 17: Parking frame and Ex plug & socket connector with terminal blocks (KES)
5.3.2. Protection cover
— Option —
Application
Protection cover for plug compartment when plug is removed.
The open terminal compartment can be closed using a protective cover (not illustrated).
5.3.3. External PE connection
Figure 18: Ground connection
Cross sections of External PE connection:
●
2 x 14 AWG to 10 AWG [2 x 2.5 mm² to 6 mm²] (solid and stranded conductors) or
●
2 x 16 AWG to 12 AWG [2 x 1.5 mm² to 4 mm²] (fine stranded conductors)
24
SAEx 07.2 – SAEx 16.2 / SAREx 07.2 – SAREx 16.2
Electrical connection
