4. Assembly
4.1. Mounting position
When using grease as lubricant, the product described herein can be operated in
any mounting position.
When using oil instead of grease within the actuator gear housing, perpendicular
mounting position is specified whereby the flange is pointing downward.The type of
lubricant used is indicated on the actuator name plate (short designation F...= grease;
O...= oil).
4.2. Valve attachments
Table 10: Overview on output drive types
AssemblyDescriptionApplicationValve attachment
➭ page 19, Multi-turn actuator with
output drive type A: mount
➭ page 16, Design of output drive type
A
●
for rising, non-rotating valve stem
●
capable of withstanding thrust
A
➭ page 20, Multi-turn actuator with
output drive type B: mount
➭ page 16, Design of output drive types
B and E
●
for rotating, non-rising valve stem
●
not capable of withstanding thrust
B, B1 – B4
E
4.2.1. Design of output drive type A
Output mounting flange [1] with axial bearing stem nut [2] form one unit.Torque is
transmitted to valve stem [3] via stem nut [2].

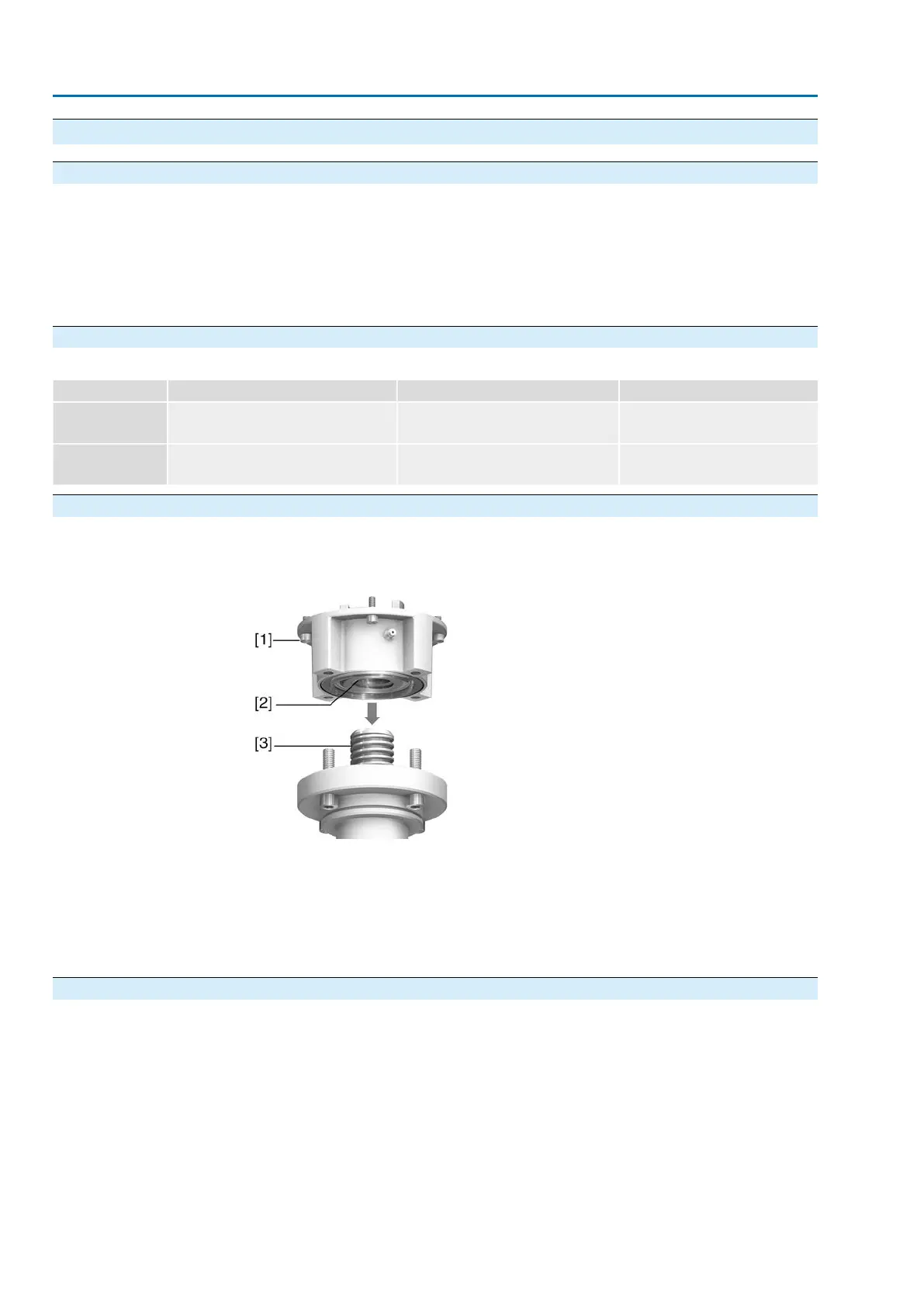

Figure 8: Design of output drive type A
[1] Output mounting flange
[2] Stem nut with dog coupling
[3] Valve stem
To adapt the actuators to available output drive types A with flanges F10 and F14
(year of manufacture 2009 and earlier), an adapter is required.The adapter can be
ordered from AUMA.
4.2.2. Design of output drive types B and E
Connection between hollow shaft and valve or gearbox via output drive sleeve fixed
to the hollow shaft of the multi-turn actuator via retaining ring.
When exchanging the output drive sleeve, later retrofitting to a different output drive
type is possible
●
Output drive types B and E: Output drive sleeve with bore according to DIN
3210
●
Output drive types B1 – B4: Output drive sleeve with bore according to EN ISO
5210
16
SA 07.2 – SA 16.2 / SAR 07.2 – SAR 16.2 Control unit: electronic (MWG)
Assembly AC 01.2 Non-Intrusive EtherNet/IP
