14.
Spare parts
14.1.

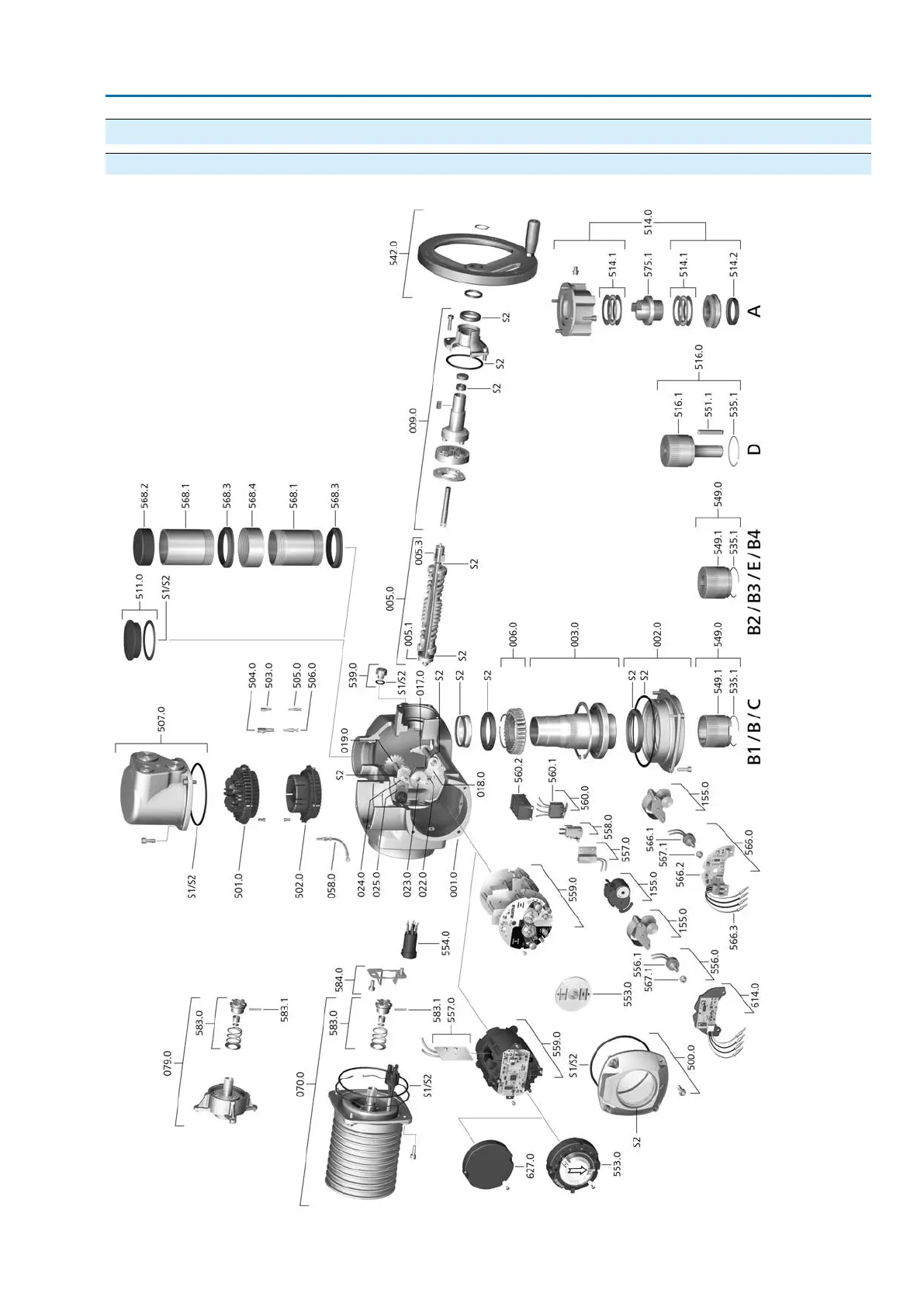

Multi-turn actuators SA(V) 07.2
–
SA(V) 16.2/SAR(V) 07.2
–
SAR(V) 16.2
91
SA 07.2
–
SA 16.2 / SAR 07.2
–
SAR 16.2 Control unit:
electronic (MWG)
A
C 01.2 Non-Intr
usiv
e EtherNet/IP
Spare par
ts
90
92
Table of Contents
Default Chapter
2
Table of Contents
2
1 Safety Instructions
5
Prerequisites for the Safe Handling of the Product
5
Range of Application
5
Applications in Ex Zone 22 (Option)
6
Warnings and Notes
7
References and Symbols
7
2 Identification
8
Name Plate
8
Short Description
11
3 Transport and Storage
12
Transport
12
Storage
14
4 Assembly
16
Mounting Position
16
Valve Attachments
16
Design of Output Drive Type a
16
Design of Output Drive Types B and E
16
Handwheel Fitting
17
Multi-Turn Actuator: Mount to Valve/Gearbox
18
Stem Nut for Output Drive Type A: Finish Machining
18
Multi-Turn Actuator with Output Drive Type A: Mount
19
Multi-Turn Actuator with Output Drive Type B: Mount
20
Accessories for Assembly
21
Stem Protection Tube for Rising Valve Stem
21
Mounting Positions of Local Controls
22
Mounting Positions: Modify
22
5 Electrical Connection
23
Basic Information
23
Overview of AUMA Electrical Connections
25
SJ Electrical Connection (AUMA Plug/Socket Connector)
26
Terminal Compartment (for Mains Connection): Open
27
Cable Connection
28
Terminal Compartment (for Mains Connection): Close
29
Fieldbus Terminal Compartment: Open
30
Industrial Ethernet Cable: Connect
30
Fieldbus Terminal Compartment: Close
31
Compact Version SF Electrical Connection for Ethernet/Ip
32
Terminal Compartment (for Mains Connection): Open
33
Cable Connection
34
Terminal Compartment (for Mains Connection): Close
35
Industrial Ethernet Cable: Connect
36
Accessories for Electrical Connection
36
Actuator Controls on Wall Bracket
36
Parking Frame
37
External Earth Connection
38
Operation
39
Manual Operation
39
Manual Valve Operation
39
Motor Operation
40
Local Actuator Operation
40
Actuator Operation from Remote
41
Menu Navigation Via Push Buttons (for Settings and Indications)
41
Menu Layout and Navigation
42
User Level, Password
43
Password Entry
44
Password Change
44
Language in the Display
45
Language Change
45
Indications
47
Indications During Commissioning
47
Indications in the Display
47
Feedback Indications from Actuator and Valve
48
Status Indications According to AUMA Classification
50
Status Indications According to NAMUR Recommendation
51
Indication Lights of Local Controls
53
Optional Indications
54
Mechanical Position Indication (Self-Adjusting)
54
Mechanical Position Indication Via Indicator Mark (Not Self-Adjusting)
54
Signals (Output Signals)
55
Status Signals Via Output Contacts (Digital Outputs)
55
Assignment of Outputs
55
Coding the Outputs
55
Analogue Signals (Analogue Outputs)
55
Commissioning (Basic Settings)
56
Type of Seating: Set
56
Torque Switching: Set
57
Limit Switching: Set
58
Connection between Ethernet/Ip Module and Computer: Check
60
Ethernet/Ip Module Configuration
61
Test Run
63
Direction of Rotation at Mechanical Position Indicator: Check
63
Direction of Rotation at Hollow Shaft/Stem: Check
65
Limit Switching: Check
65
Commissioning (Settings/Options in the Actuator)
67
Switch Compartment: Open/Close
67
Mechanical Position Indicator (Self-Adjusting)
68
Mechanical Position Indicator: Set
68
Gear Stage of the Reduction Gearing: Test/Set
69
Mechanical Position Indication Via Indicator Mark (Not Self-Adjusting)
70
Mechanical Position Indicator: Set
70
Gear Stage of the Reduction Gearing: Test/Set
71
Corrective Action
74
Faults During Commissioning
74
Fault Indications and Warning Indications
74
Fuses
78
Fuses Within the Actuator Controls
78
Fuse Replacement
79
Replace Fuses
79
Test/Replace Fuses
80
Motor Protection (Thermal Monitoring)
80
Servicing and Maintenance
81
Preventive Measures for Servicing and Safe Operation
81
Maintenance
82
Disposal and Recycling
82
Technical Data
83
Technical Data Multi-Turn Actuators
83
Technical Data Actuator Controls
85
Spare Parts
91
Multi-Turn Actuators SA(V)
91
Sa(V) 16.2/Sar(V) 07.2
91
Sar(V) 16.2
91
AC 01.2 Actuator Controls with SJ Electrical Connection
93
AC 01.2 Actuator Controls SF Compact
95
Certificates
97
Declaration of Incorporation and EU Declaration of Conformity
97
Index
98
Addresses
101
