11.3.2.2. Test/replace fuses F3/F4

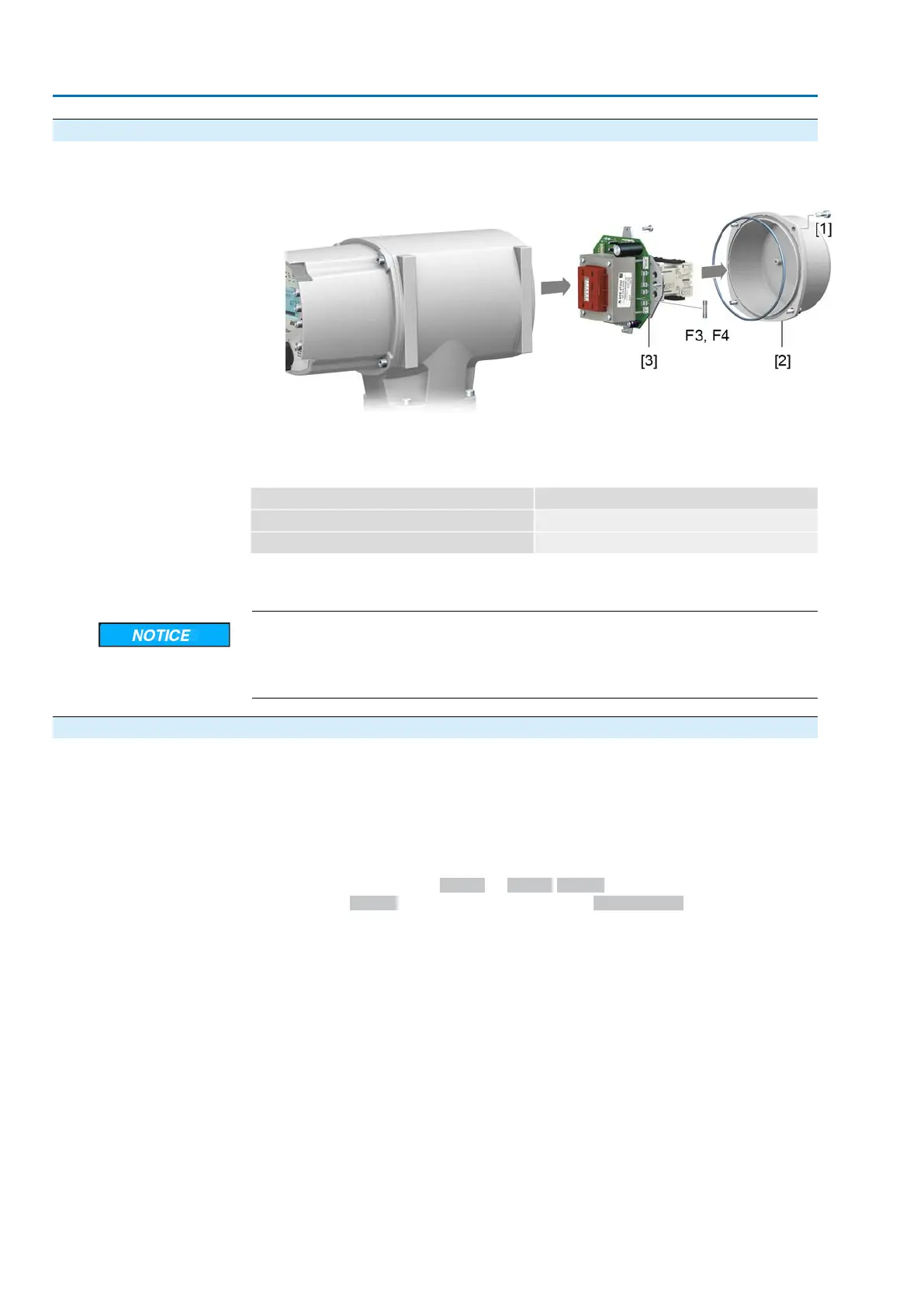

1. Loosen screws [1] and remove cover [2] on the rear of the actuator controls.
Figure 80:
Check fuses.
2. The power supply unit has measurement points (solder pins) allowing to perform
a resistance (continuity) measurement:
Table 39:
Measuring pointsChecking
MTP5 – MTP6F3
MTP7 – MTP8F4
3. To replace defective fuses: Carefully loosen power supply unit [3] and pull out.
(The fuses are on the equipped part of the power supply board.)
Cable damage due to pinching!
Risk of functional failures.
→
Carefully assemble power supply unit to avoid pinching the cables.
11.3.3. Motor protection (thermal monitoring)
In order to protect against overheating and impermissibly high surface temperatures
at the actuator, PTC thermistors or thermoswitches are embedded in the motor
winding. Motor protection trips as soon as the max. permissible winding temperature
has been reached.
The actuator is switched off and the following signals are given:
●
LED 3 (motor protection trippped) on the local controls is illuminated.
●
The status indications S0007 or S0011 Failure display a fault.
The fault Details is displayed when selecting Thermal fault.
The motor has to cool down before operation can be resumed.
Depending on the parameter setting (motor protection behaviour), the fault signal is
either automatically reset or the fault signal has to be acknowledged.
The acknowledgement is made:
●
in selector switch position Local control (LOCAL) via push button RESET.
●
In selector switch position Remote control (REMOTE) with Reset command
via fieldbus.
80
SA 07.2 – SA 16.2 / SAR 07.2 – SAR 16.2 Control unit: electronic (MWG)
Corrective action AC 01.2 Non-Intrusive EtherNet/IP
