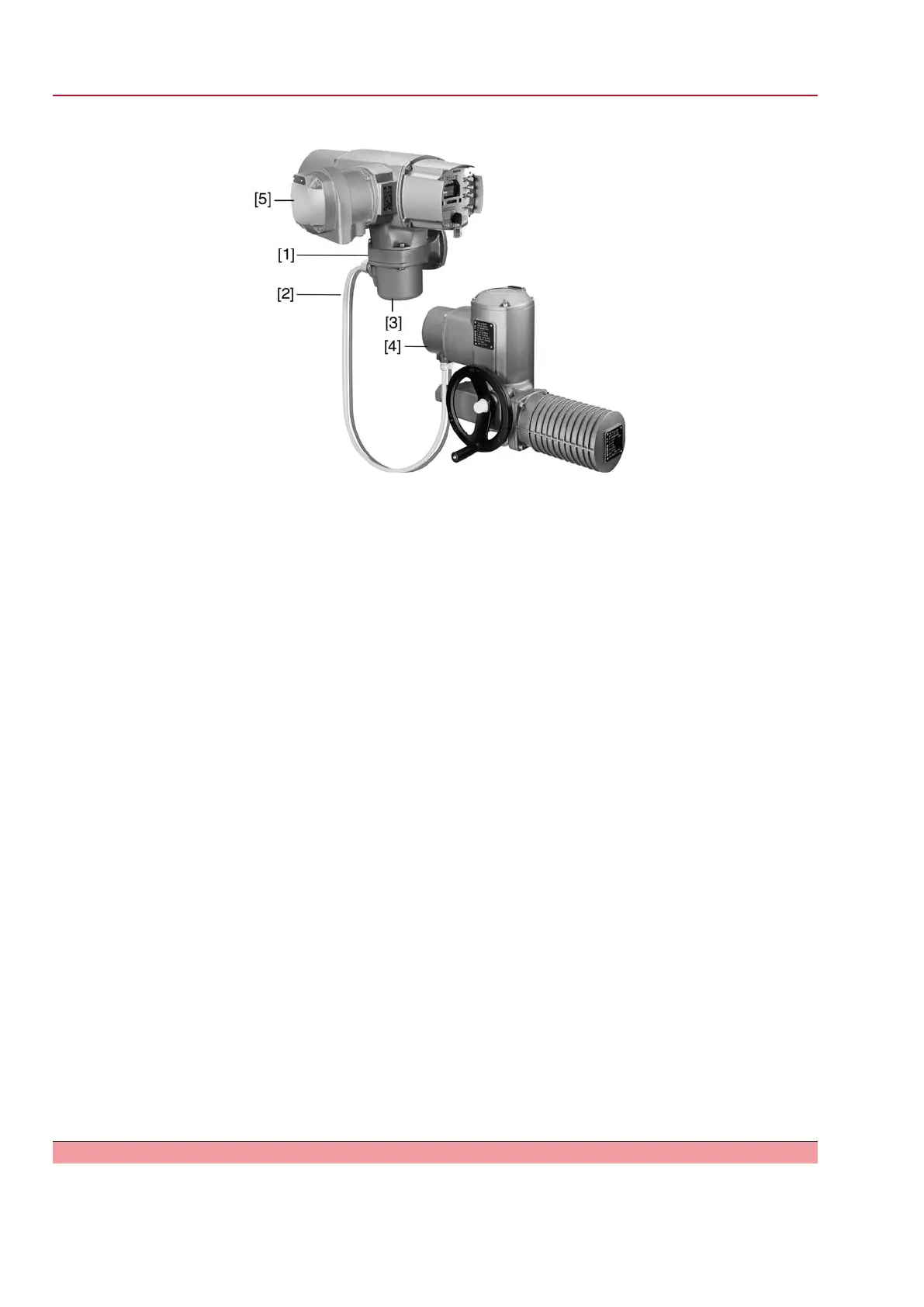

Design Figure 20: Design principle with wall bracket
[1] Wall bracket
[2] Connecting cables
[3] Electrical connection of wall bracket (XM)
[4] Electrical connection of actuator (XA)
[5] Electrical connection of controls (XK) - customer plug
Observe prior to
connection
●
Permissible length of connecting cables: max. 100 m.
●
Permissible length of connecting cables for later separation of actuator and
controls: max. 10 m.
●
We recommend: AUMA cable set LSW20.
●
If the AUMA cable set is not used:
- Use suitable flexible and screened connecting cables.
- Use separate, CAN bus cable for MWG of 120 Ohm character impedance
(e.g. UNITRONIC BUS-FD P CAN UL/CSA - 2 x 2 x 0.5 mm², manufacturer:
Lapp).
- Data cable connection: XM2-XA2 = CAN L, XM3-XA3 = CAN H.
- MWG voltage supply if the AUMATIC has been ordered and delivered with
wall bracket: XM6-XA6 = GND, XM7-XA7 = + 24 V DC (refer to wiring
diagram).
- MWG voltage supply if AUMATIC has been subsequently separated from
the actuator: XM6-XA6 = GND, XM11-XA117 = + 5 V DC (refer to wiring
diagram).
- For the electrical connection at wall bracket [3], the terminals are made
as crimp connections.
- Use a suitable four indent crimp tool for crimping.
- Cross sections for flexible wires:
- Control cables: max. 0.75 to 1.5 mm²
- Mains connection: max. 2.5 to 4 mm²
●
When using connecting cables, e.g. of the heater, requiring direct wiring from
the actuator to the XK customer plug (XA-XM-XK, refer to wiring diagram),
these connecting cables must be subject to an insulation test in compliance
with EN 50178. Connecting cables for MWG do not belong to this group.They
may not be subject to an insulation test.
5.3.2 Parking frame
Application
Parking frame for safe storage of a disconnected plug.
24
SG 05.1 – SG 12.1/SGR 05.1 – SGR 12.1 Control unit: electronic (MWG)
Electrical connection AC 01.1 Non-Intrusive Modbus RTU
