3. Apply a thin film of non-acidic grease (e.g. petroleum jelly) to the O-ring and
insert it correctly.
4. Place cover [1] on switch compartment.
5. Fasten screws [2] evenly crosswise.
9.13 Operating time: set
For part-turn actuators with 1-phase AC motors, the operating time can be adjusted.
Table 8: Operating time setting for 90°
Operating timesSize
5.6 to 45 secondsSG 05.1/SGR 05.1
11 to 90 secondsSG 07.1/SGR 07.1
11 to 90 secondsSG 10.1/SGR 10.1
22 to 180 secondsSG 12.1/SGR 12.1

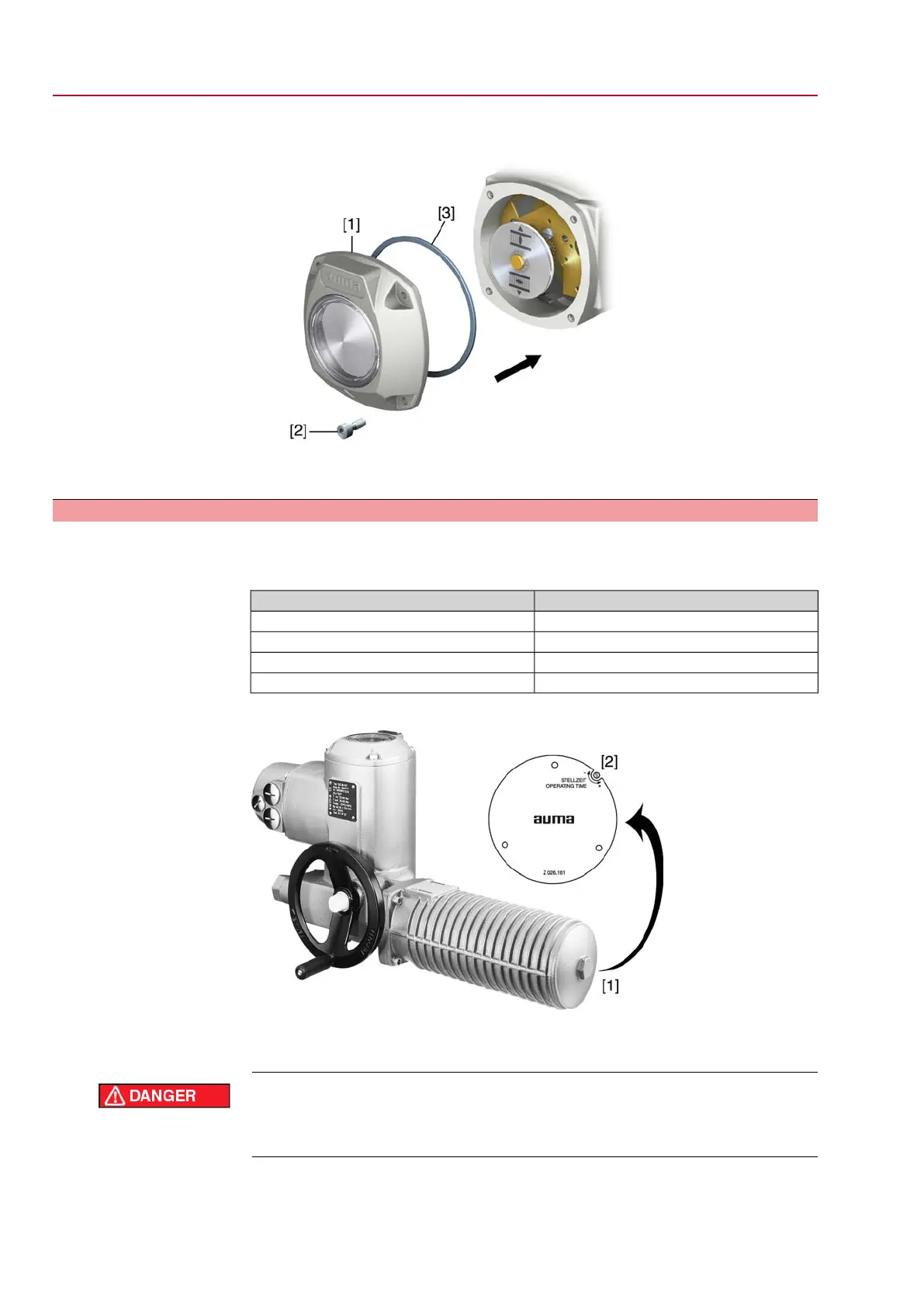

Figure 53: Part-turn actuator with 1-ph AC motor
[1] Motor cover
[2] Potentiometer
Hazardous voltage!
Risk of electric shock.
→
Disconnect device from the mains before opening.
56
SG 05.1 – SG 12.1/SGR 05.1 – SGR 12.1 Control unit: electronic (MWG)
Commissioning (basic settings) AC 01.1 Non-Intrusive Modbus RTU
