18. Return to status display:
→
Press C several times until S0 is displayed.
Information: If an end position cannot be set: Check the type of control unit in
actuator.
Information The end positions can be approached (via push buttons and selector switch in posi-
tion LOCAL) even during motor operation. Position the selector switch to 0 (OFF)
for setting. Direct approaching of the mechanical end stops during motor operation
may cause valve damage. Consequently, during motor operation, the travel to the
mechanical end stop of valve/gearbox must be interrupted prior to reaching the
preset position (press push button STOP).
9.7 Baud rate, parity and bus addres (slave addess): set
Via the menu to parameter:
MAIN MENU (M0)
SETTINGS (M1)
MODBUS 1 (M1F)
BAUDRATE (M1F11)
PARITY (M1F12)
SLAVEADDRESS (M1F14)
Setting ranges and default values:
BAUDRATE: 300 – 38 400 BAUD (4 800 BAUD)
PARITAET: (EVEN, 1 STOPBIT)
ODD, 1 STOPBIT
NO, 2 STOPBITS
SLAVEADRESSE: 1 – 247 (247)

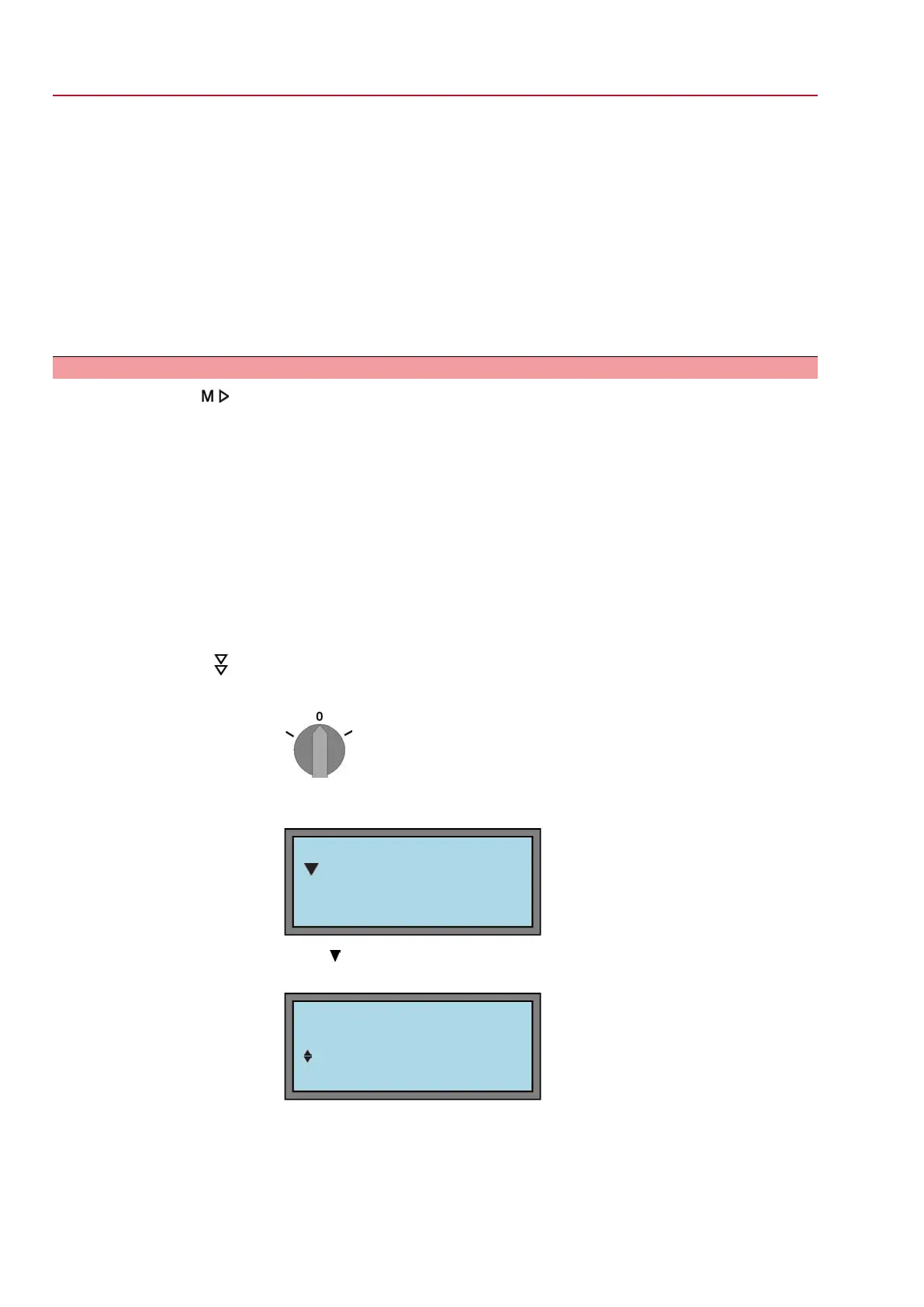

Step by step:
1. Set selector switch to position 0 (OFF).
2.
Press C and hold it down for approx. 3 seconds.
➥
Display indicates:
MAIN MENU M0
LANGUAGE/CONTRAST
SETTINGS
OPERATIONAL DATA
3.
Press .
➥
Display indicates:
MAIN MENU M1
LANGUAGE/CONTRAST
SETTINGS
OPERATIONAL DATA
50
SG 05.1 – SG 12.1/SGR 05.1 – SGR 12.1 Control unit: electronic (MWG)
Commissioning (basic settings) AC 01.1 Non-Intrusive Modbus RTU
