AUMA SG 05.1 User Manual

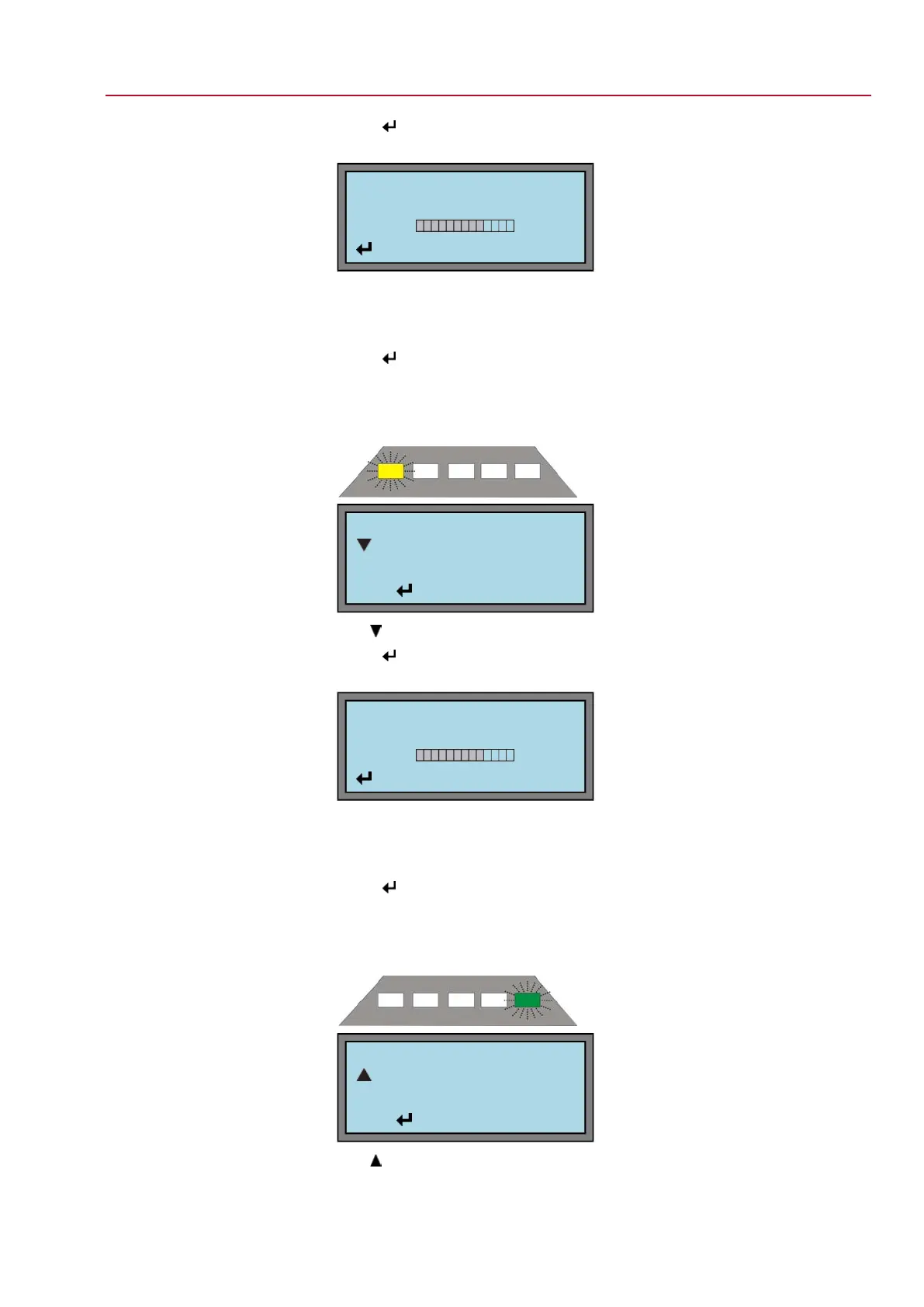

Set end position CLO-
SED
8.
Press to enter the edit mode.
➥
Display indicates:
SET LIMIT SWITC M100
CLOSED POSITION
:ACCEPT C:ESC
9. Engage manual operation.
10. Turn handwheel until valve is closed.
11. Turn handwheel by approximately 4 turns (overrun) in the opposite direction.
12.
Press to accept new end position setting.
➥
LEDs and display indicate that the new end position has been accepted:
- The left LED is illuminated (default setting).
- Display indicates: 0.0 %
➥
SET LIMIT SWITC M100
CLOSED POSITION
0.0 %
:EDIT C:ESC
Use to select OPEN POSITION.
Setting end position
OPEN:
13.
Press to enter the edit mode.
➥
Display indicates:
SET LIMIT SWITC M101
OPEN POSITION
:ACCEPT C:ESC
14. Engage manual operation.
15. Turn handwheel until valve is open.
16. Turn handwheel by approximately 4 turns (overrun) in the opposite direction.
17.
Press to accept new end position setting.
➥
LEDs and display indicate that the new end position has been accepted:
- The right LED is illuminated (default setting).
- Display indicates: 100.0 %.
➥
SET LIMIT SWITC M101
OPEN POSITION
100.0 %
:EDIT C:ESC
Use to select CLOSED POSITION.
49
SG 05.1 – SG 12.1/SGR 05.1 – SGR 12.1 Control unit: electronic (MWG)
AC 01.1 Non-Intrusive Modbus RTU Commissioning (basic settings)
