2.
Press C and hold it down for approx. 3 seconds.

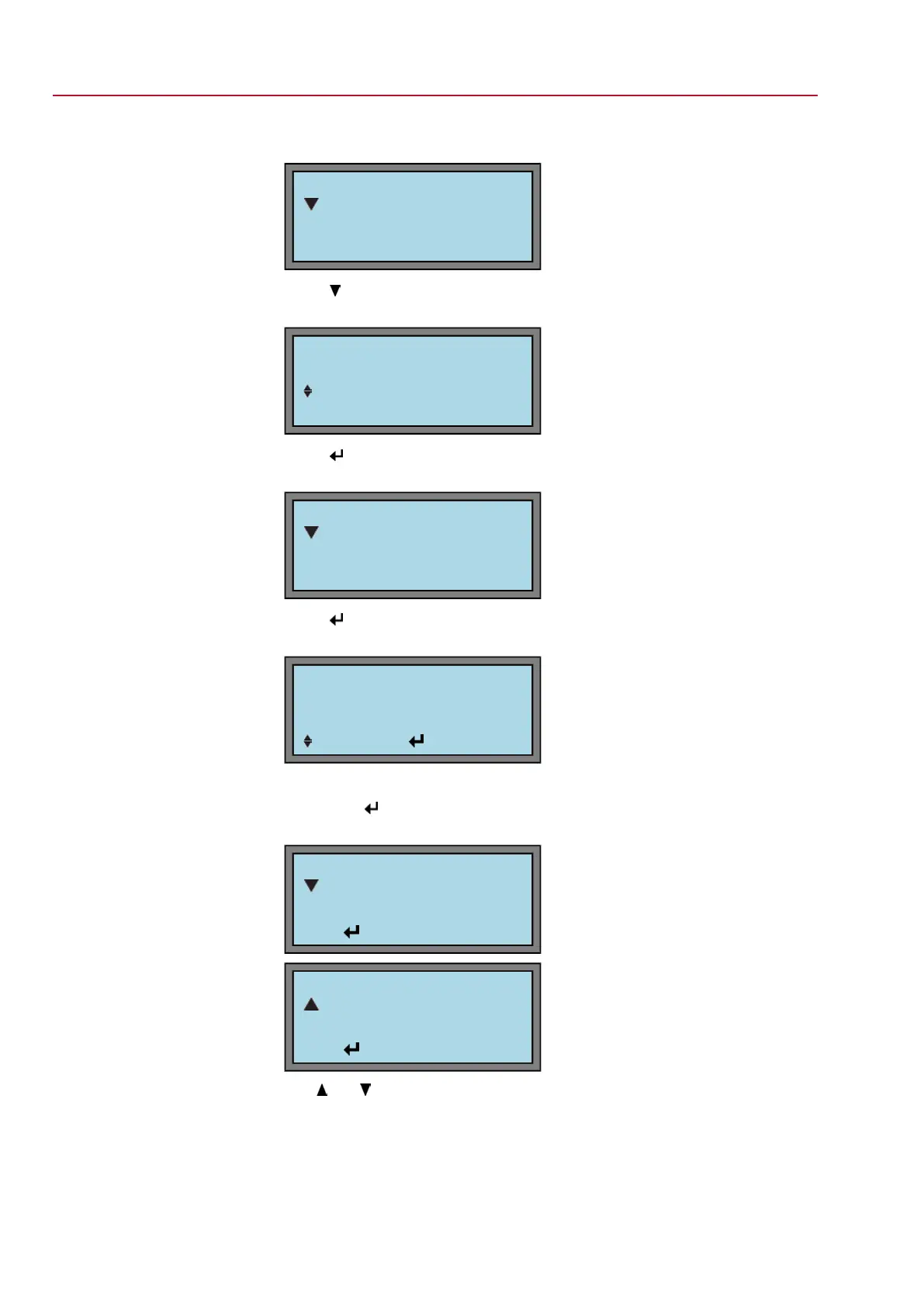

Display indicates:
MAIN MENU M0
LANGUAGE/CONTRAST
SETTINGS
OPERATIONAL DATA
3.
Press .
Display indicates:
MAIN MENU M1
LANGUAGE/CONTRAST
SETTINGS
OPERATIONAL DATA
4.
Press .
Display indicates:
SETTINGS M10
SET LIMIT SWITCHES
SEATING MODE
TORQUE
5.
Press .
Display indicates:
ENTER PASSWORD
0 * * *
:EDIT :OK C:ESC
6. Enter password:
Press 4 x = 0000 (default factory password).
The current actuator position is displayed:
SET LIMIT SWITC M100
CLOSED POSITION
63.3 %
:EDIT C:ESC
SET LIMIT SWITC M101
OPEN POSITION
63.3 %
:EDIT C:ESC
Use and to select between OPEN POSITION and CLOSED POSITION.
7. Set end position CLOSED or end position OPEN?
Set end position CLOSED: continue with 8.
Set end position OPEN: continue with 13.
48
SG 05.1 SG 12.1/SGR 05.1 SGR 12.1 Control unit: electronic (MWG)
Commissioning (basic settings) AC 01.1 Non-Intrusive Modbus RTU
