ENGINE MANUAL

IAE50R – AA

E1.01.05 – E

Issue date: 25.Jan.2018

Page: 5-2

Revision no: 9

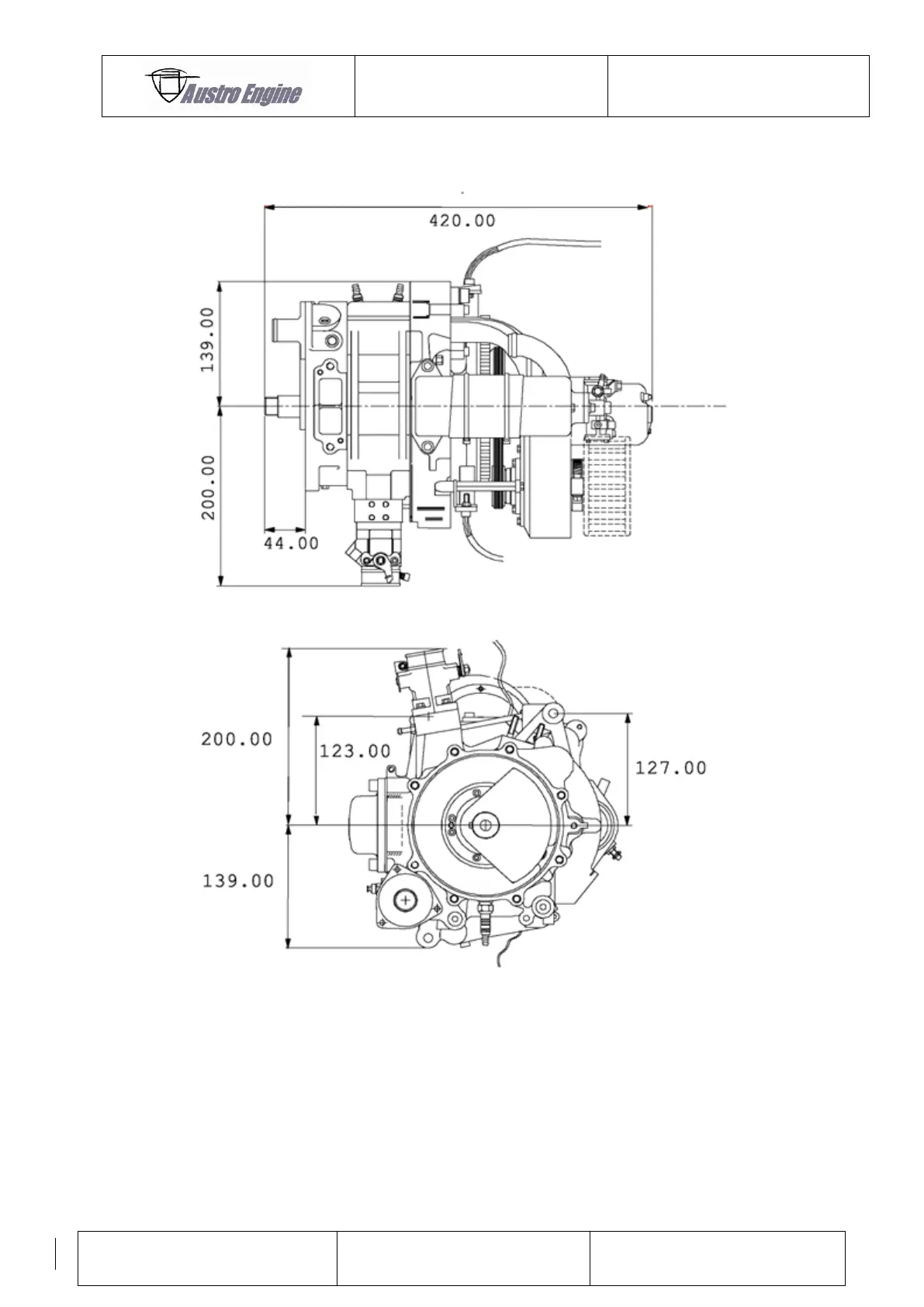

5.2.3 Engine Overall Dimensions

Fig. 1: Engine overall dimensions
