ENGINE MANUAL
IAE50R – AA
19.3.3 Map Sensors
The sensor must be mounted by the installer with the pressure inlet at the bottom and the
flexible pipes running down the throttle body spacer, thus allowing any fuel in the pipe to
drain back into the engine.
The flexible pipe (Inner-Diameter 6mm) must be at least oil resistant (fuel, engine oil) and
does not change the inner diameter at inlet pressures of 20kPa.

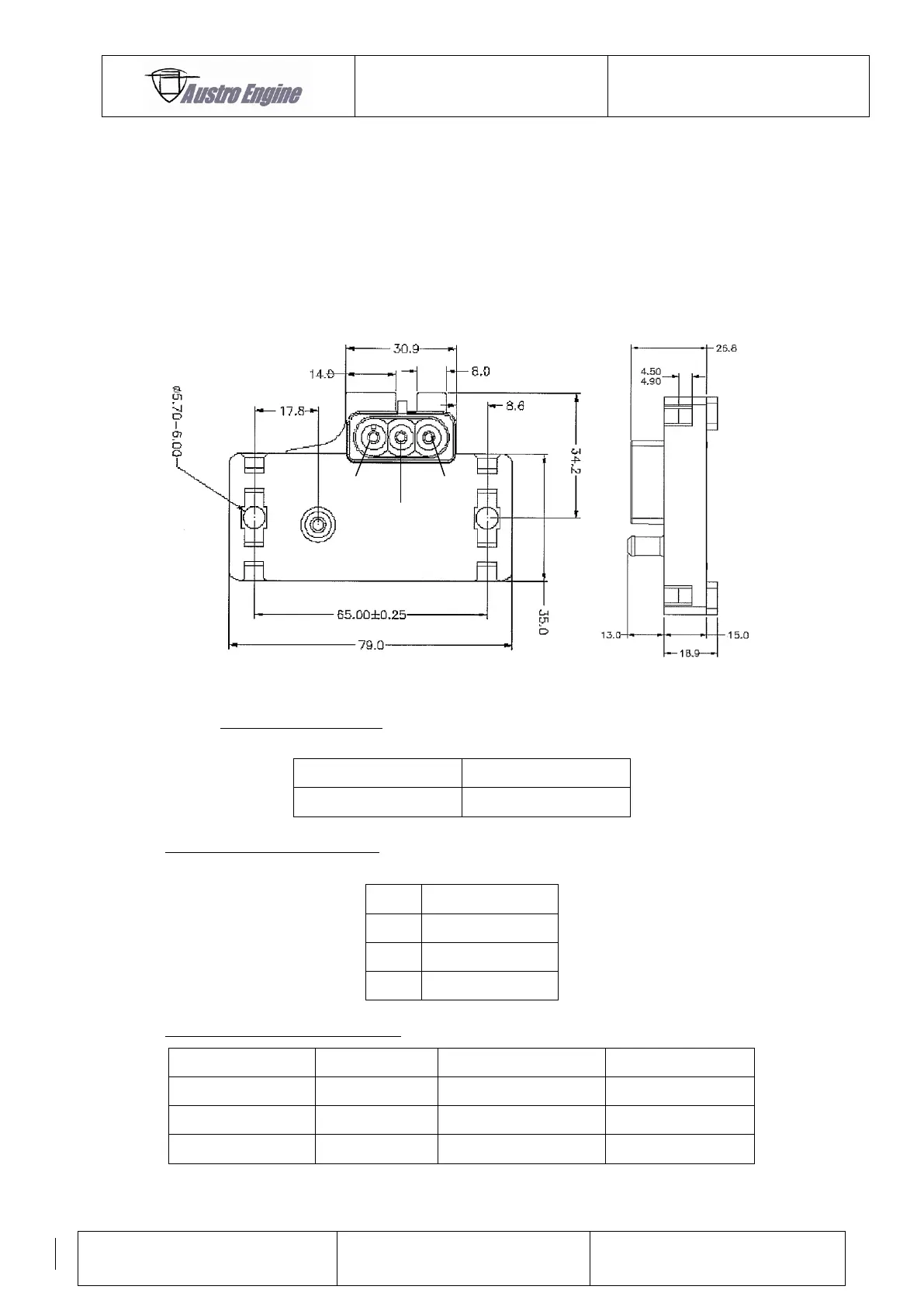

Fig. 22
Type of MAP Sensor(s):
Pin Assignment MAP Sensor(s):
Mating Connector for MAP Sensor:
