ENGINE MANUAL
IAE50R – AA
E1.01.05 – E
Issue date: 25.Jan.2018
Page: 19-15
Revision no: 9
Type of Rotor Cooling Air out Temp Sensor(s):
Part Number
QTY per engine
E4A-40-000-804
1

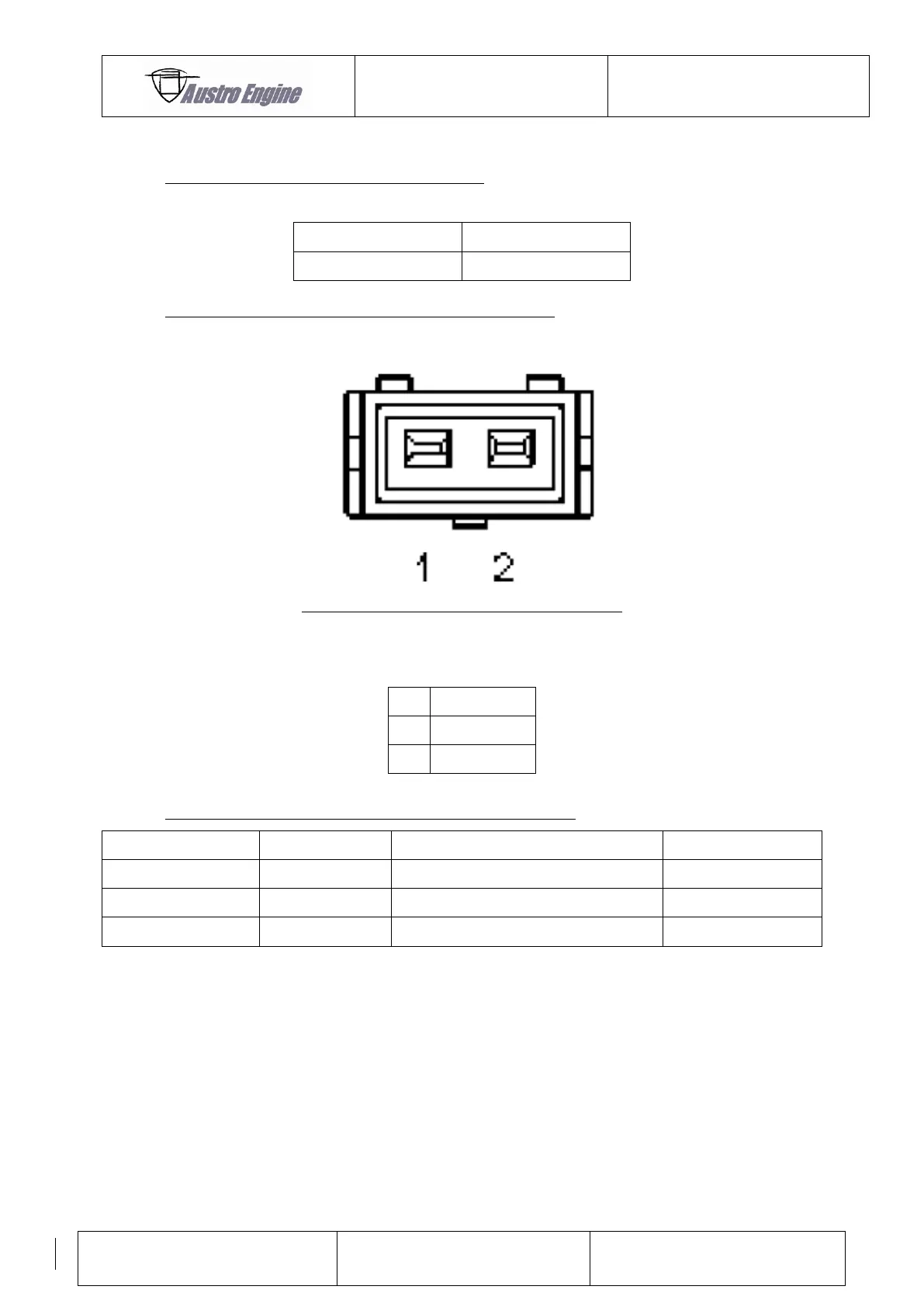

Pin Assignment of Rotor Cooling Air out Temp Sensor(s):
Fig. 21
Pin
Description
1
Signal
2
GND
Mating Connector for of Rotor Cooling Air out Temp Sensor:
Description
Manufacturer
Part Number
QTY (per sensor)
Seal
Bosch
1 987 280 106 / 1 987 280 107
2
Crimp
Bosch
1 987 280 103 / 1987 280 105
2
Connector Housing
Bosch
1 237 000 036
1
