19.5 Starter
The starter R1A-90-000-000 is an electric nominal 12V / 0,6kW. It is of a Bendix Type,
engaging the gear when operated (refer to drawing no. R1A-90-000-000).
Description
Condition
Min
Typ
Max
Unit
Start Current
(Battery 12,5V 18Ah)
---
---
80
---
A
Voltage of Battery drops down during cranking. Inrush current can reach up to 350A for some
milliseconds.
19.5.1 Mechanical installation
The starter is mounted on the engine. Two M8 screws are used.

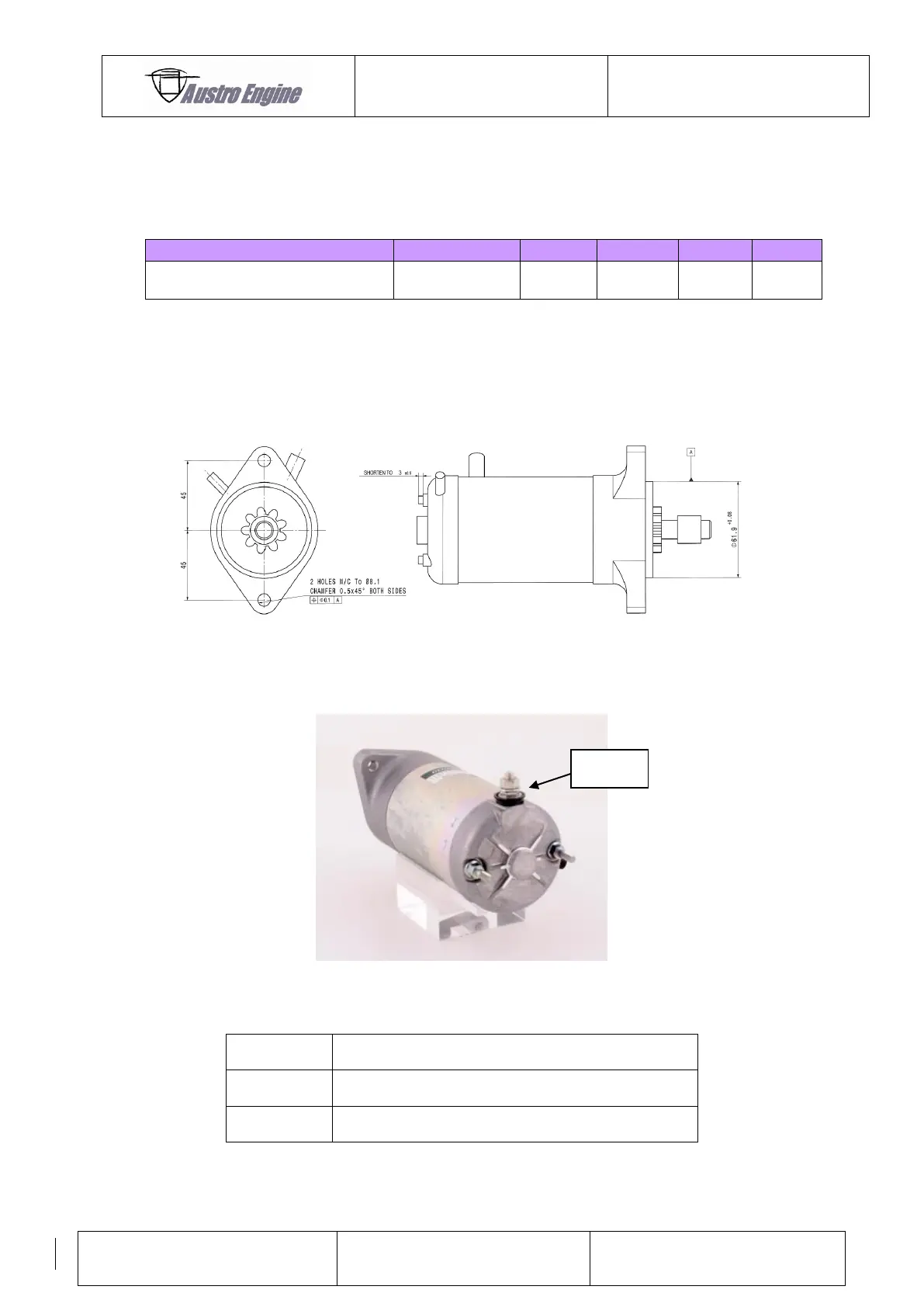

Fig. 29: Mechanical installation of the starter
19.5.2 Electrical connection of starter
Fig. 30: Starter
Description
Electrical Connection
GND
Ground connection of starter via housing to engine
Bolt1
Switch able 12V starter actuation
For fastening torque of bolt 1 see chapter 11.2.1. .
Bolt 1
