ENGINE MANUAL
IAE50R – AA
19.3.5 Ignition Coils
It hast to be mentioned that the ignition coils are close enough to spark plugs
(Note the maximum length of ignition cable R1A-09-000-501 -> 200 mm)
Power supply ignition coil: The installer should provide independent switches to interrupt the
power supply for each ignition coil separately if required.
Type of Ignition Coil:
Mechanical and electrical connection
For the mechanical mounting of the coils two M5 screws with washers should be used.
Connect the power supply for the coil on the positive terminal and the ECU-signal on negative
terminal of the coil.
Pin Assignment Ignition Coil:
Fig. 4
Fig. 5
Negative
To spark plug
Positive

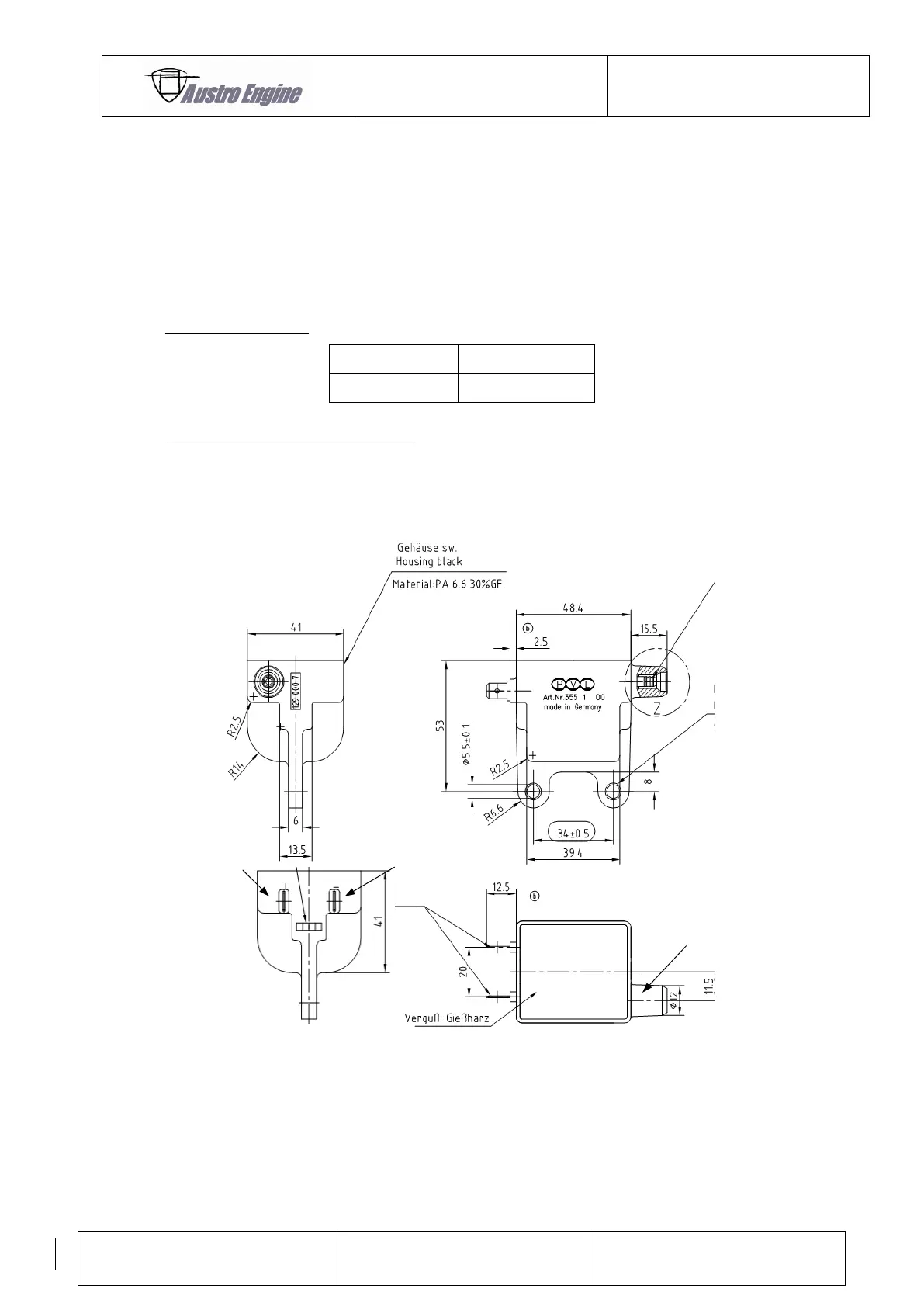

Fig. 24: Ignition coil
