19.1.3 Mechanical installation of the ECU
It is suggested to install the ECU outside of a dedicated fire zone.
Fig. 12: Mechanical installation of the ECU

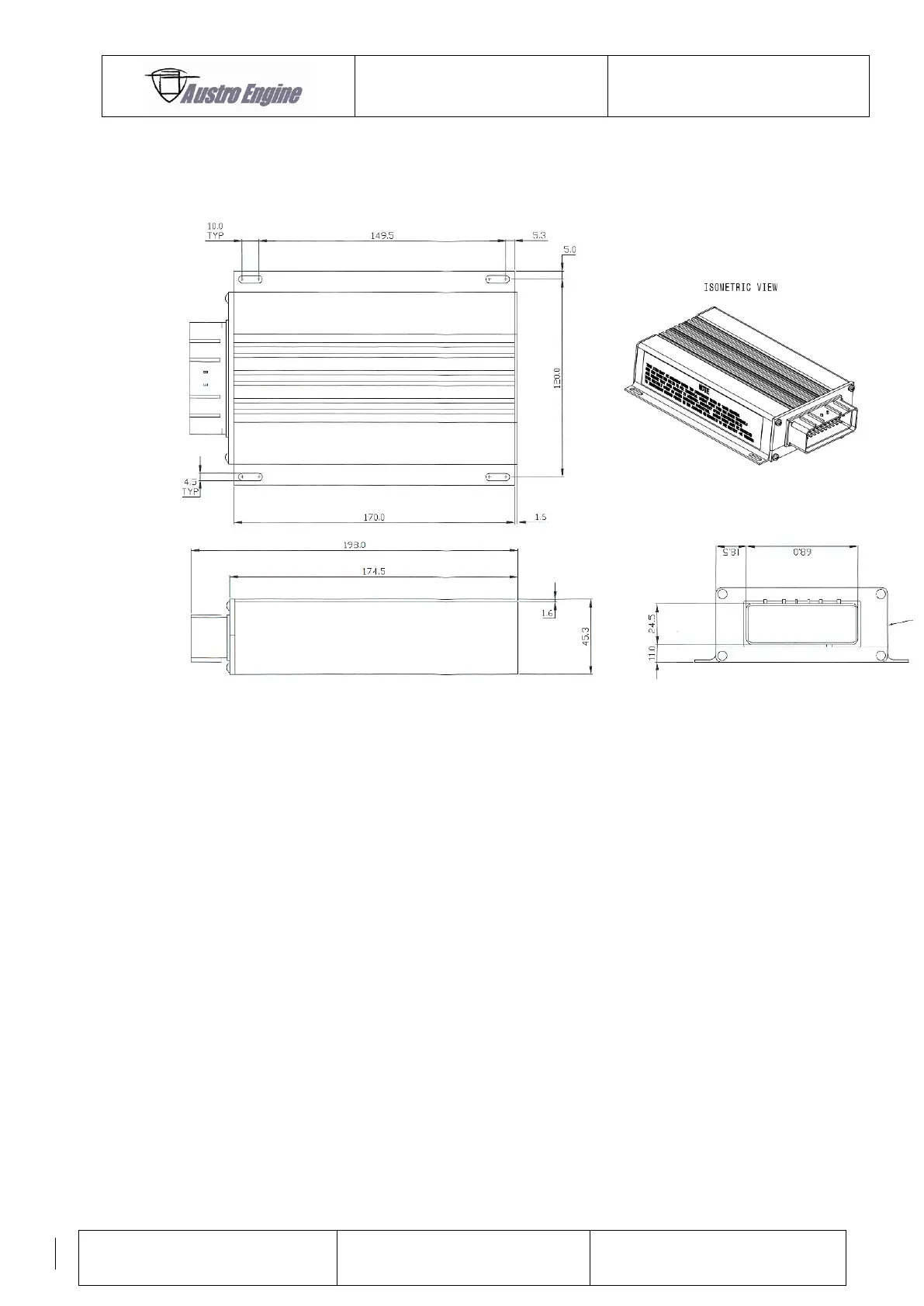

Fig. 13 ECU Dimensions (in mm)
Mounting of the ECU is possible via 4 elongated holes. M4 screws with washers on the side
of the ECU housing are suggested.
The ECU must be grounded using two independent wires of 16AWG minimum. The
mounting bolts can be used to fix terminals. Remove paint from box under terminals and
ensure that good contact is achieved. Reprotect after tightening bolts with suitable paint or
other corrosion protection. Ground wires must be connected to independent ground points
on the airframe or directly to the battery GND Terminal
