ENGINE MANUAL

IAE50R – AA

E1.01.05 – E

Issue date: 25.Jan.2018

Page: 19-17

Revision no: 9

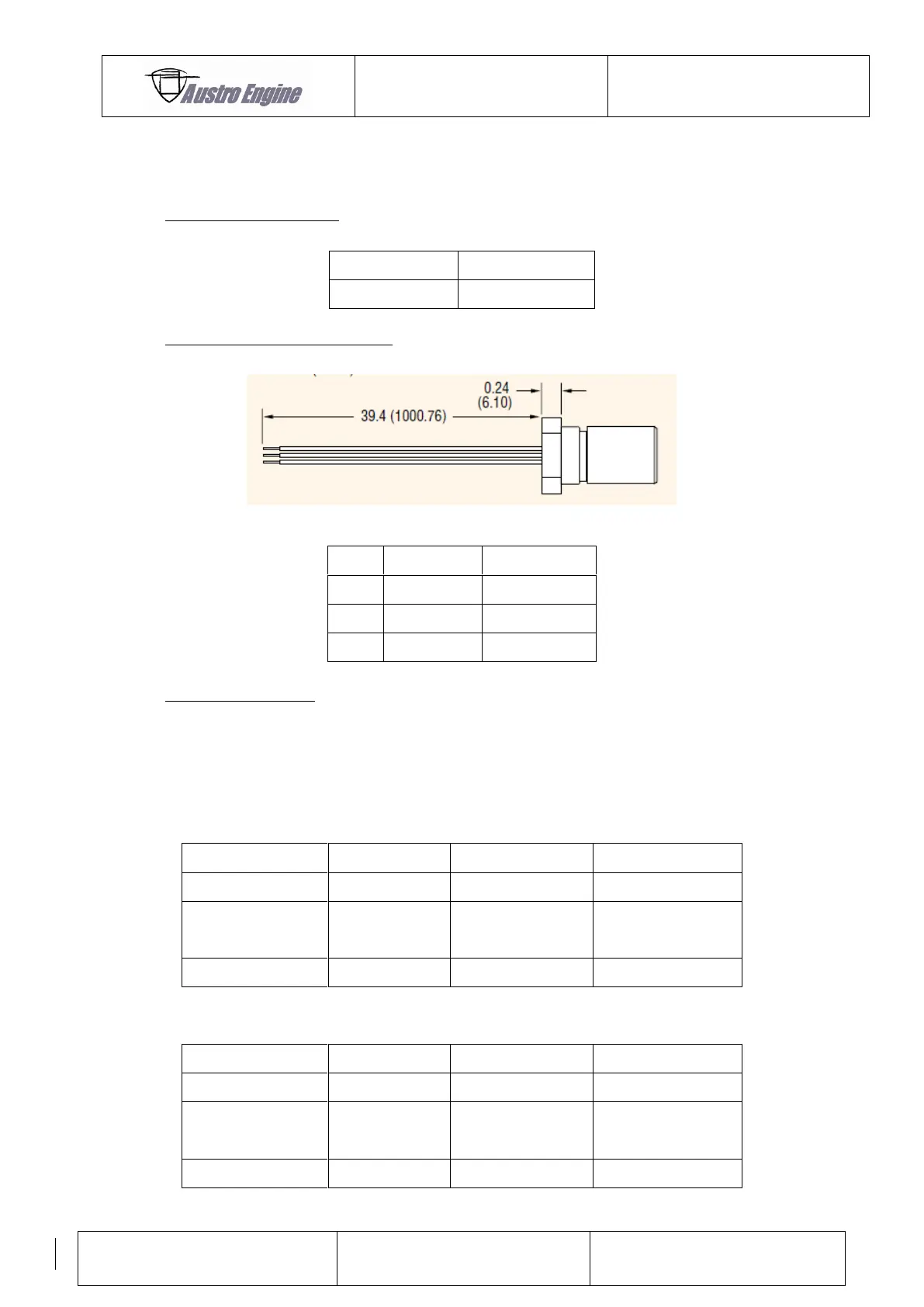

19.3.4 Speed Sensors

Mounting provisions are given on the engine.

Type of Speed Sensor(s):

Part Number

QTY per engine

R1A-09-000-802

Pin Assignment Speed Sensor(s):

Fig. 23

Wire Color

Description

VCC

Brown

Sensor Supply

VOUT

Black

Output Signal

GND

Blue

GND

Connector for Sensor:

Sensor is supplied with open wires. It is recommended to use dust and water protected

connectors for engine harness adaption. An adequate connector type can be found in the

following tables.

Possible Sensor connector:

Description

Manufacturer

Part Number

QTY (per sensor)

Seal

Tyco / TE

281934-4

Crimp

Tyco / TE

AWG20: 183024-1

AWG22: 183036-1

Connector Housing

Tyco / TE

282105-1

Possible Mating connector:

Description

Manufacturer

Part Number

QTY (per sensor)

Seal

Tyco / TE

281934-4

Crimp

Tyco / TE

AWG22: 183035-1

AWG20: 282404-1

Connector Housing

Tyco / TE

282087-1
