ENGINE MANUAL
IAE50R – AA
5.2.7 Cooling
Approximately 90% of surplus heat is rejected into
the liquid cooling system; the balance is rejected via
rotor cooling air.
Coolant 50 : 50 Distilled Water – Ethylene Glycol mix
Silkolene PRO–COOL (or equivalent)
5.2.8 Fuel Specification
AVGAS 100LL
EUROSUPER, ROZ 95, in accordance with EN228
or equivalents.
5.2.9 Fuel Consumption Curve

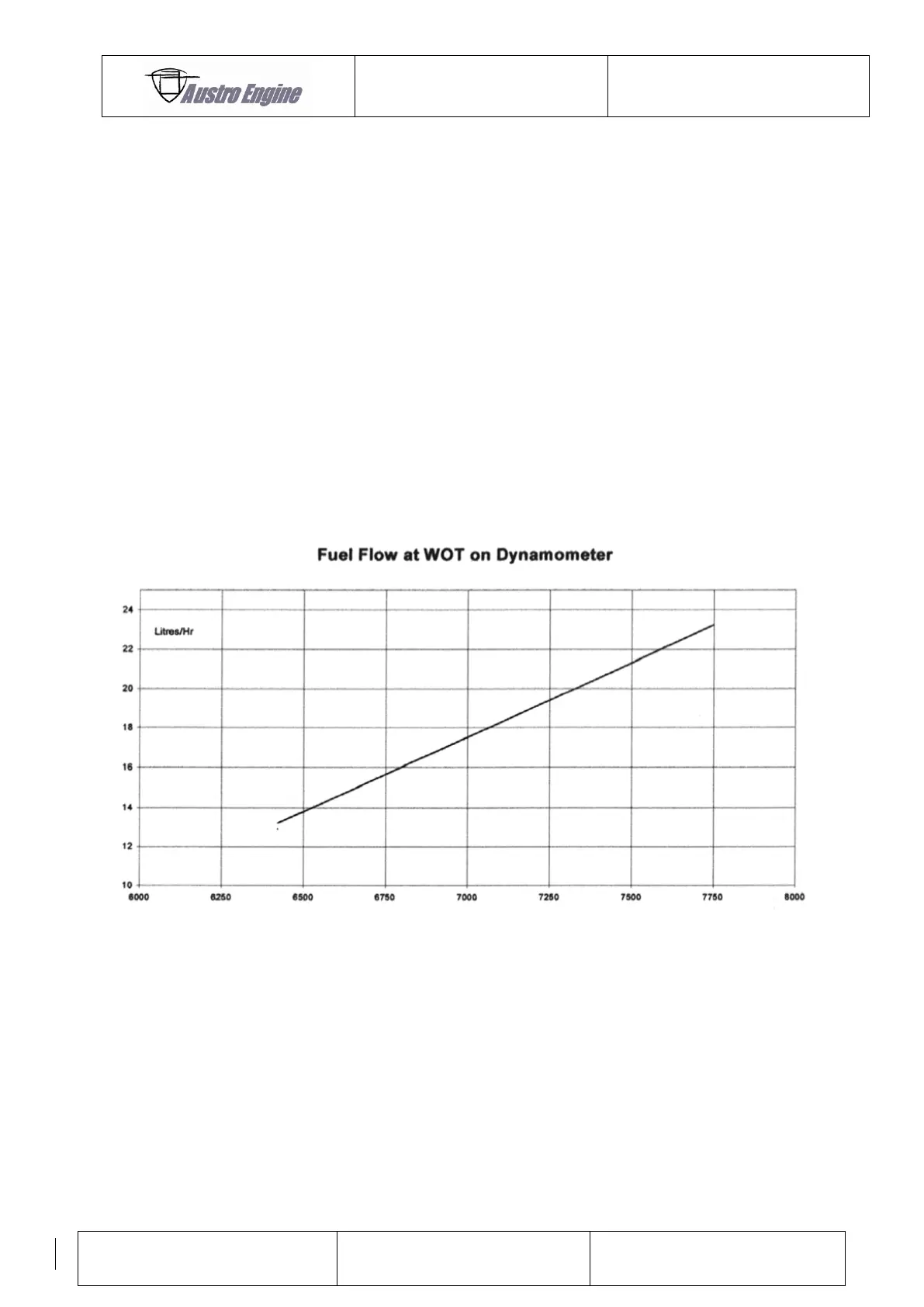

Fig. 2: Fuel consumption curve
Note that these values are taken from JAR 22 calibration test results and are not indicative of
actual consumption rates.
Typical in–flight fuel flows, particularly at part–throttle conditions, may be expected to be
significantly lower.
