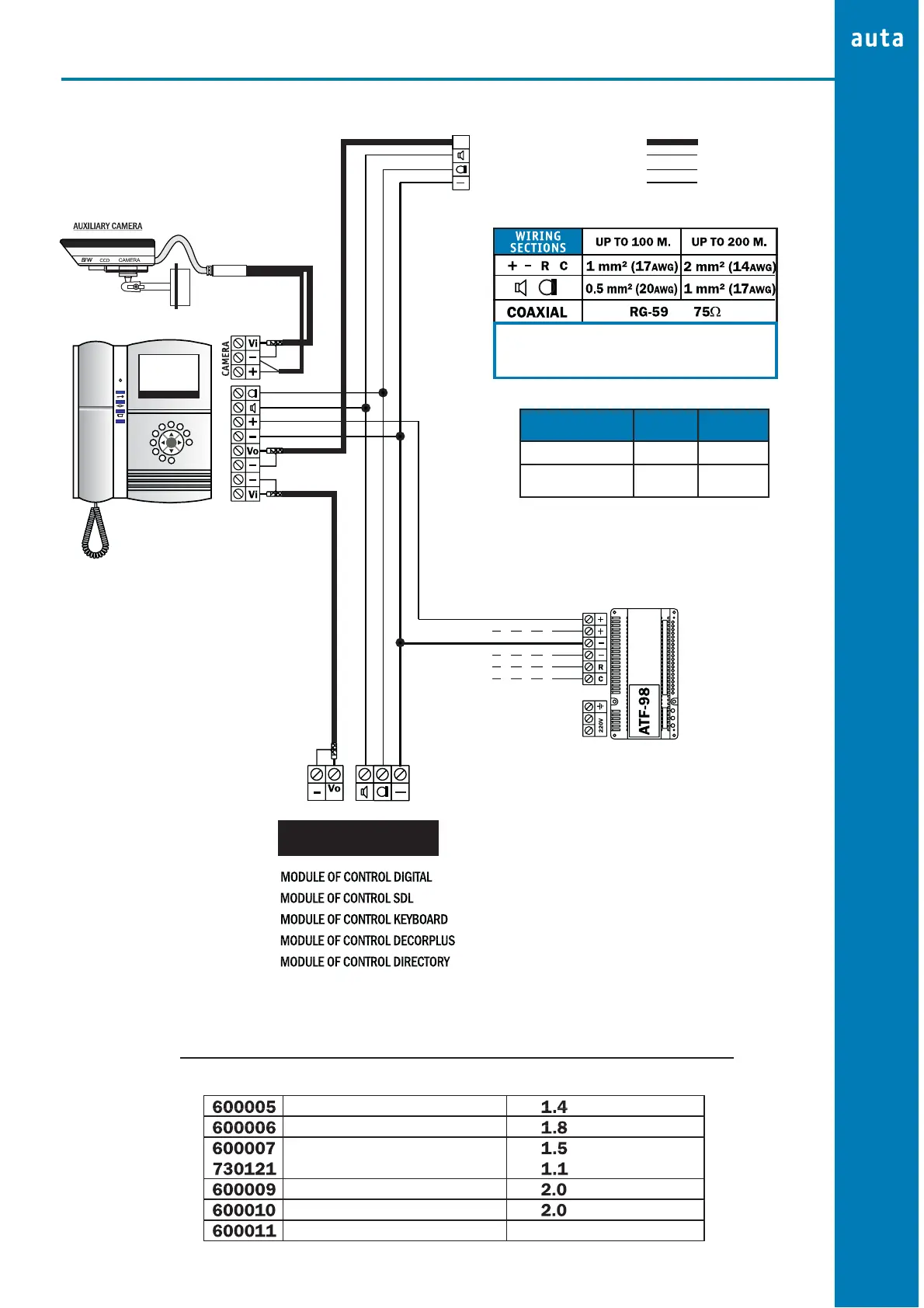

VIDEO SYSTEM. Integrated Compact Switchboard
*The power supply unit ALV-DIGITAL 3.5A does not give A/C current
(R-C). So it has to be installed with and ATF-12 power supply unit
to release the electrical strike & to light the cardholder
POWER SUPPLY
ATF-98
10
UP TO
PHONES
UP TO
MONITORS
20
ALV-3.5A + ATF-12*
40
80
*If the installation has less than 40 monitors
and the distance is shorter than 50 mts., the
negative wire of the rise can be supressed
DIGITAL
27
SWITCHBOARD UNIT
OK
INTEGRATED COMPACT GUARD UNIT COMPATIBILITY
DESCRIPTION VERSIONREF:
DIGITAL C.M.
KEYPAD C.M.
SDL C.M.
DIGITAL DECORPLUS C.M.
DIRECTORY PANEL C.M.
VISUALTECH 5H C.M.
DIGITAL LINES SELECTOR
SDL
or LATEST
or LATEST
or LATEST
or LATEST
or LATEST
or LATEST
NO COMPATIBILITY
TO
GENERAL BUS
a
INTEGRATED COMPACT SWITCHBOARD
COAX
TO PANEL
