Auta AC-900 - AC-900 Monitor; Correspondence Connections between AC-900 and AV-900; AC-900 Relay; Connection Module

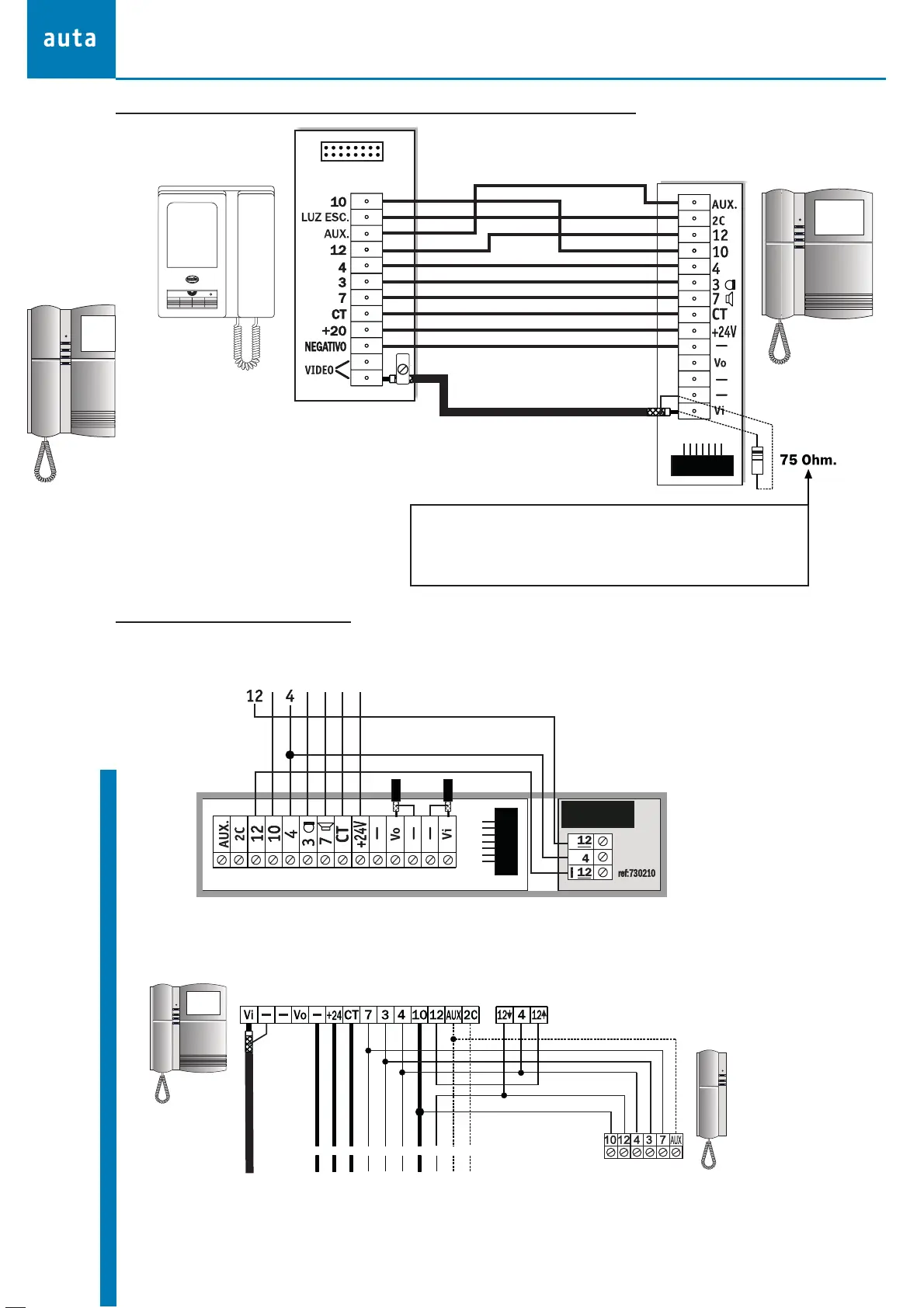

Correspondence connections between AC-900 and AV-900
AC-900 Monitor
ANALOG
54
AC-900
CONNECTION MODULE
AV-900 MONITOR
AC-900 COMPACT MONITOR
If the AC-900 compact monitor is installed at the end of the line *,
we have to connect a 75 Ohm. resistor between Vi and Negative
*We know that the AC-900 compact monitor is connected at the end of
the line because we only have one coax wire in the conexion module
AC-900 Relay ref: 730210
If we have a 2nd AV-900 monitor, phone or an auxiliary buzzer in the flat, we have to use an
AC-900 relay
AC-900 installation with an analogical buzzer compact phone
AC-900 COMPACT MONITOR
AC-900 RELAY
ANALOGICAL BUZZER
COMPACT PHONE
RELAY
AC-900
