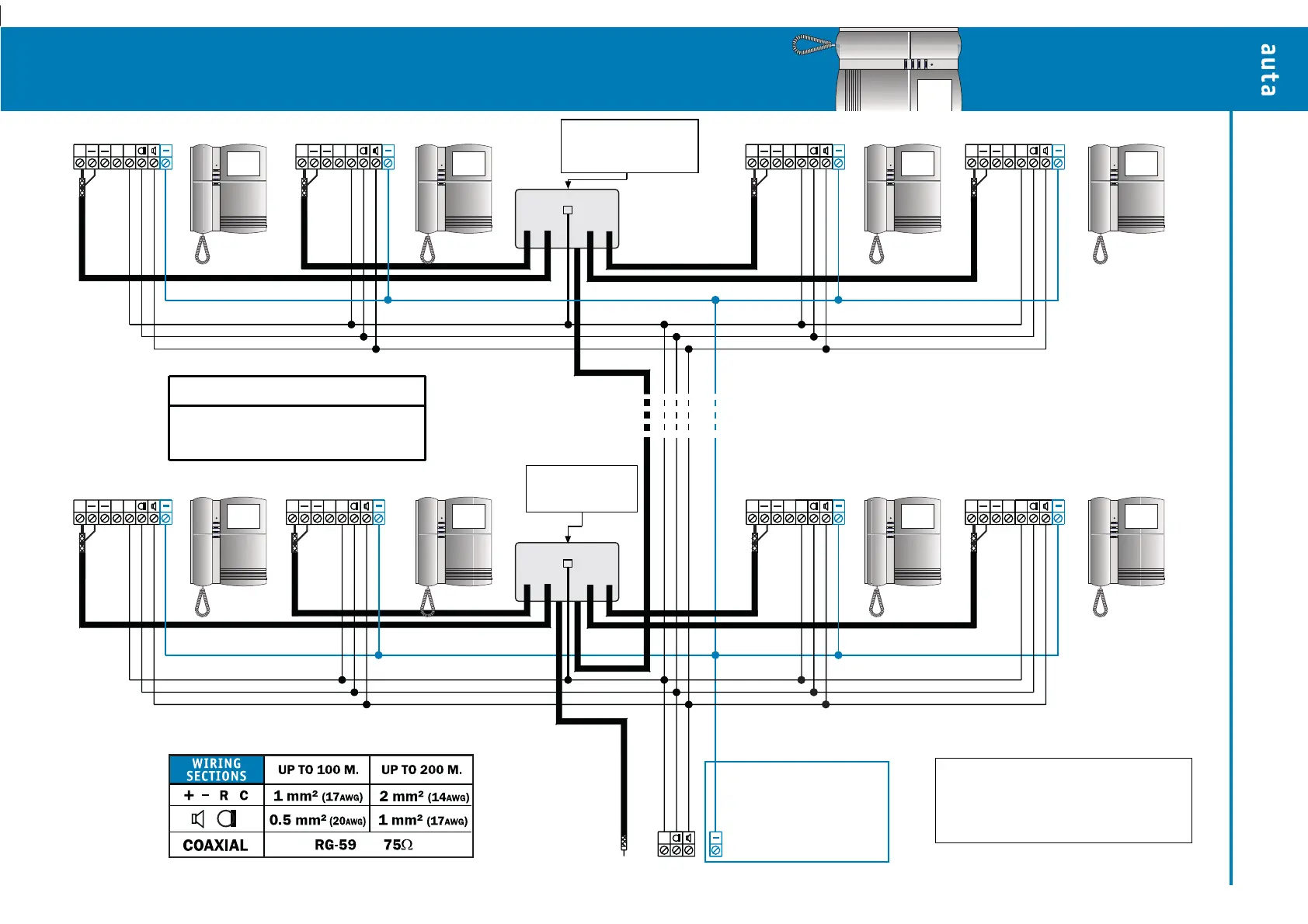

Auta AC-900 - Monitors Distribution

Video distribution per floor
6
WARNING
TAKE ALL THE DISTRIBUTORS JUMPERS
OUT UNLESS THE FINAL ONE.
SUPPLY THE DISTRIBUTORS CONNECTING
THEM TO THE + POLE
DIGITAL
38
MONITORS
DISTRIBUTION
GENERAL RISER
+
+ + + +
Set up main all the monitors,
J2 in the 2-3 position
DIGITAL COMPACT MONITOR
L
S3 S4
+
+ + + +
*
L
S1 S2
S3 S4
L
S1 S2
L
+
Vi VoVi Vo Vi VoVi Vo
Vi Vo Vi Vo Vi Vo
***
Vi Vo
*
****
* If the installation has less than
40 monitors and the distance is
shorter than 50 mts., the negative
wire of the rise can be supressed
DO NOT TAKE OUT THE
DISTRIBUTOR JUMPER
DVC-4S
TAKE OUT THE
DISTRIBUTOR JUMPER
DVC-4S
