Auta AC-900 - Replace of MF-93 by a MF-S2; Replace of ALV-96 by a ALV-DIG 3.5 A + ATF-12

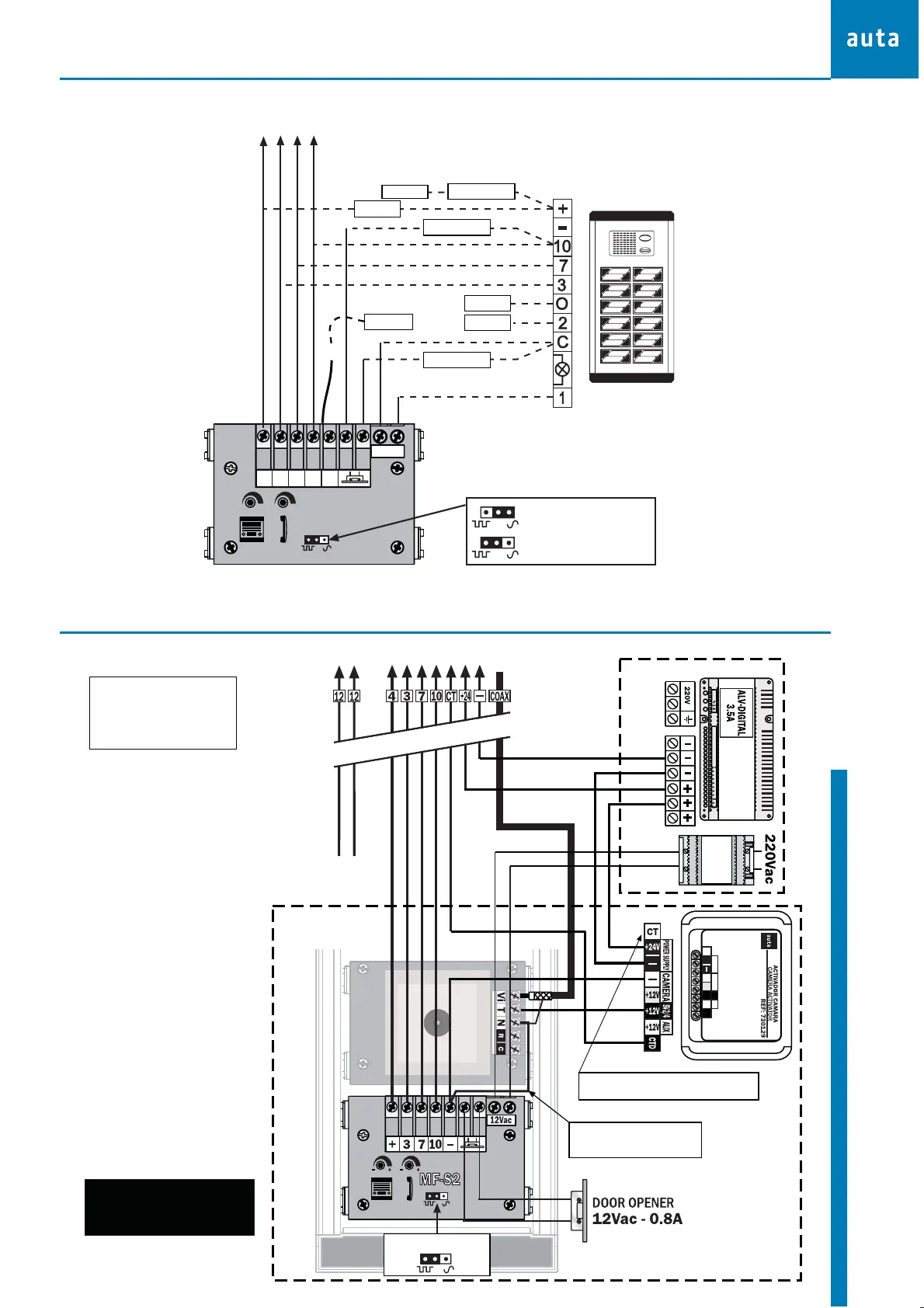

Replace of a MF-93 by a MF-S2
Replace of a ALV-96 by a ALV-DIG 3.5A + ATF-12
55
ANALOG
ATENTION
CONNECT "N" with "-"
POWER SUPPLY
PANEL
+
3710
-
12Vac
MF-S2
MF-93
MODULE
Cp = Common push-buttons
Cg = Call generator
37104
RISER
NULL
BUZZER CALL
ELECTRONIC CALL
DOOR OPENER
DOOR OPENER
NULL
RISER
POWER SUPPLY
NULL
CG
CP PANEL
CONNECTION FOR COMPACT MONITORS
ATF-12
-POWER SUPPLY ALV-3.5A
-POWER SUPPLY ATF-12
-CAMERA ACTIVATOR
-MF-S2 (audio module)
MATERIAL
COMMON WIRES
C/1
C/n
JUMPER
WE CAN NOT CONNECT
THE CAMERA ACTIVATOR
WITH THE MF-S MODULE
