Auta AC-900 - Audio Keypad Panel Material and Functioning

4
2
Door opener
PD DIGITAL FV
KEYBOARD
4*
1
2
220 Vac
ATF-98
O
ALV-DIGITAL
4
2
Door Opener
4
PD DIGITAL F
KEYBOARD
4
4
2
220 Vac
4
ATF-98
OR
ALV-DIGITAL
Material and Functioning

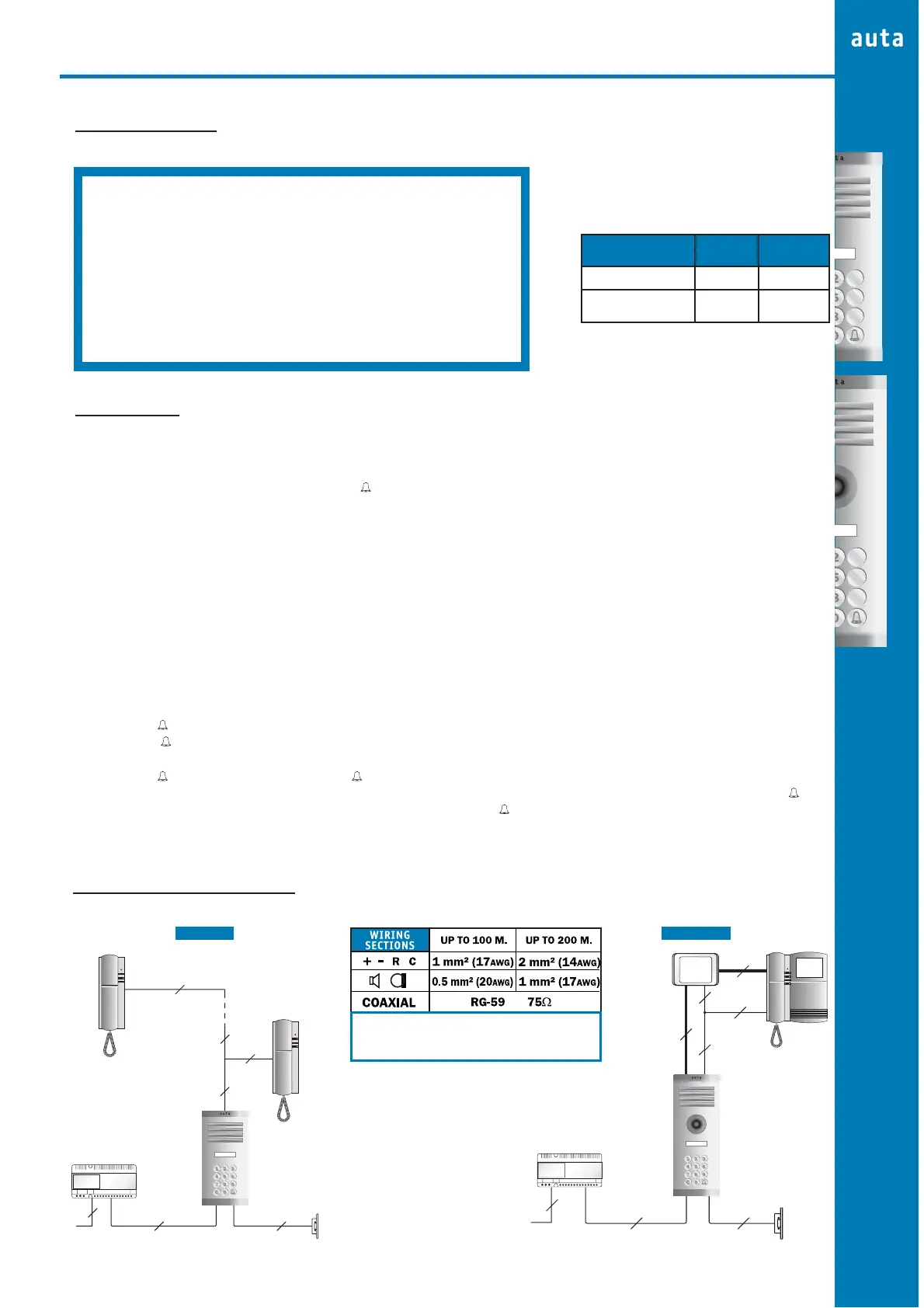

Schematic representation
List of Materials
COMPONENTS NAMES UNITS REF.
Monitor Digital compact monitor (1) 750105
Distributor video DVC-4S (1) 750498
Phone Digital decor phone (1) 700198
Outside panel PD DIGITAL F T (1) 603000
PD DIGITAL FV T (1) 614001
Cardholder panel PD CARDHOLDER (1) 66*000
Mounting Box Mounting box (2) 50902*
Power supply ATF-98 (3) 715103
ALV - 3.5A* (3) 715403
Aux. Power supply ATF-12 (1) 715203
Module of control Module of control (1) 600006
Door opener Door opener (1) 720001
Functioning
Call
In the digital system the call is done in 2 phases:
1st phase: Dial the flat number on the keypad and press
2nd phase: The flat number code is transmited and the corresponding phone would ring 4 times during 30 seconds. The message *CALLING* NEW
CODE_ _ _
 is showed up on the panel.
The call can be readdressed by repeating 1st phase.
The call can be cancelled by pressing C key.
Communication
Picking up the hanset, the communication starts. The LCD screen would show the message COMMUNICATION ESTABLISHED.
Pressing the door release button at phone, the door will be released.
Communication will be finish by hanging up the hanset or after 90 seconds. The LCD screen will show the message 
END OF CALL, then the message

INTRODUCE CODE_ _ _ will be show again.
Remark:
The electrical strike is activated by 2 seconds impulses.
Door opener function on the panel
The door release can be released from the panel´s keypad:
1st phase: Push
and dial the code 0000 (code from factory).
2nd phase: Push
again, the door will be released.
How to modify the door release code
1st phase: Push and dial the code 1664, then push again.
2nd phase: The panel will show you the message OLD CODE_ _ _. Dial the old code (0000 if is the first time the code is modified) and push
.
3rd phase: The message NEW CODE_ _ _ will be show. Dial the new code and push
. The new door release code is activated.
4*
*The power supply unit ALV-DIGITAL 3.5A does not give A/C current
(R-C). So it has to be installed with and ATF-12 power supply unit
to release the electrical strike & to light the cardholder
POWER SUPPLY
ATF-98
10
UP TO
PHONES
UP TO
MONITORS
20
ALV-3.5A + ATF-12*
40
80
*If the installation has less than 40 monitors
and the distance is shorter than 50 mts., the
negative wire of the rise can be supressed
(1) Units depending on installation
(2) See series and outside panel reference
in the catalogue
(3)
DIGITAL
7
AUDIO KEYPAD
3
6
9
VIDEO KEYPAD
3
6
9
1 ACCESS 2 ACCESSES
COAXIAL
COAXIAL
DVC-4S
