2 wires (2HT). One way audio kit
ANALOG
52
2HT SYSTEM
Description.-
The Compact 2HTE its a phone to increase the 2HT KIT to 4 extensions maximun. (Main + 3 2HTE extensions).
Functioning.-
When we finish all the connections like the wiring diagram the system will be ready to work.
Standby state.-
The cardholder of the main panel will be light up.
We able to open the door from the phone as we want, without pick up the hanset.
Calling.-
When we press the call push-button in the external panel, the cardholder illumination will be off.
We will listen the calling in the phones (Electronic call), at the same time the LED will be on.
When we pick up the hanset we have comunication between phone and panel, remember that only one phone
can have the comunication with the panel. The prority is for the nearest phone.
NOTE.-
If we pick up the hanset of the phone or we open the door, we can listen a small buzzing in the ears, that's normal in
this system.

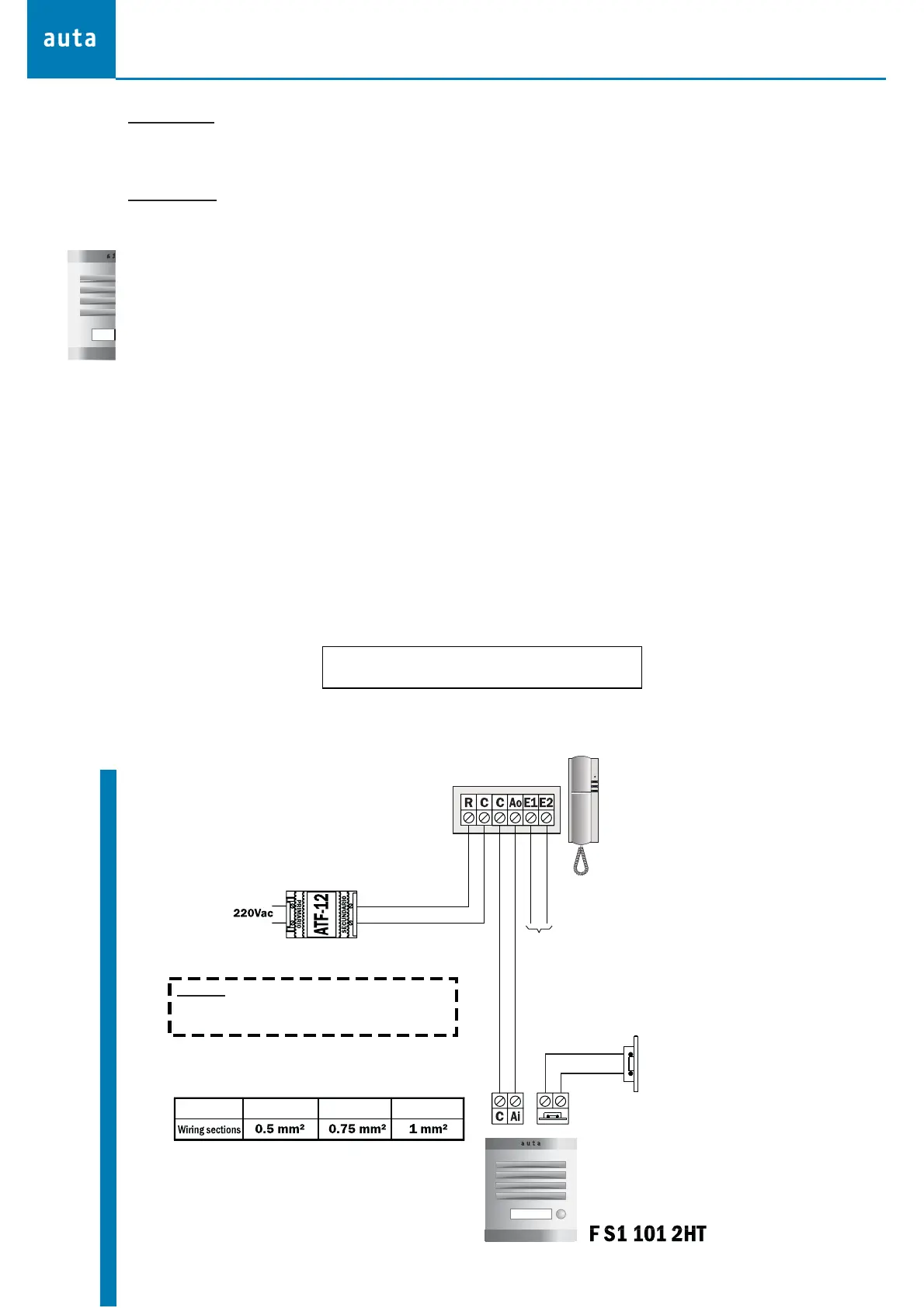

Standard Installation
WITHOUT CONNECTION
2HT COMPACT
PHONE
NOTE
To make the connection of the system we can use the existing wiring.
If we need make a new wiring do it like this diagram
Up to 60m.
Up to 90m.
Up to 120m.
WARNING: to make the ATF-12 installation we have to know
that suggestions:
- Make a water proof installation.
- Make the installation in a DIN line.
DOOR OPENER
