2 wires (2HT). One way audio kit
53
ANALOG
2HT SYSTEM
NOTE
To make the connection of the system we can use the existing wiring.
If we need make a new wiring do it like this diagram
Up to 60m.
Up to 90m.
Up to 120m.

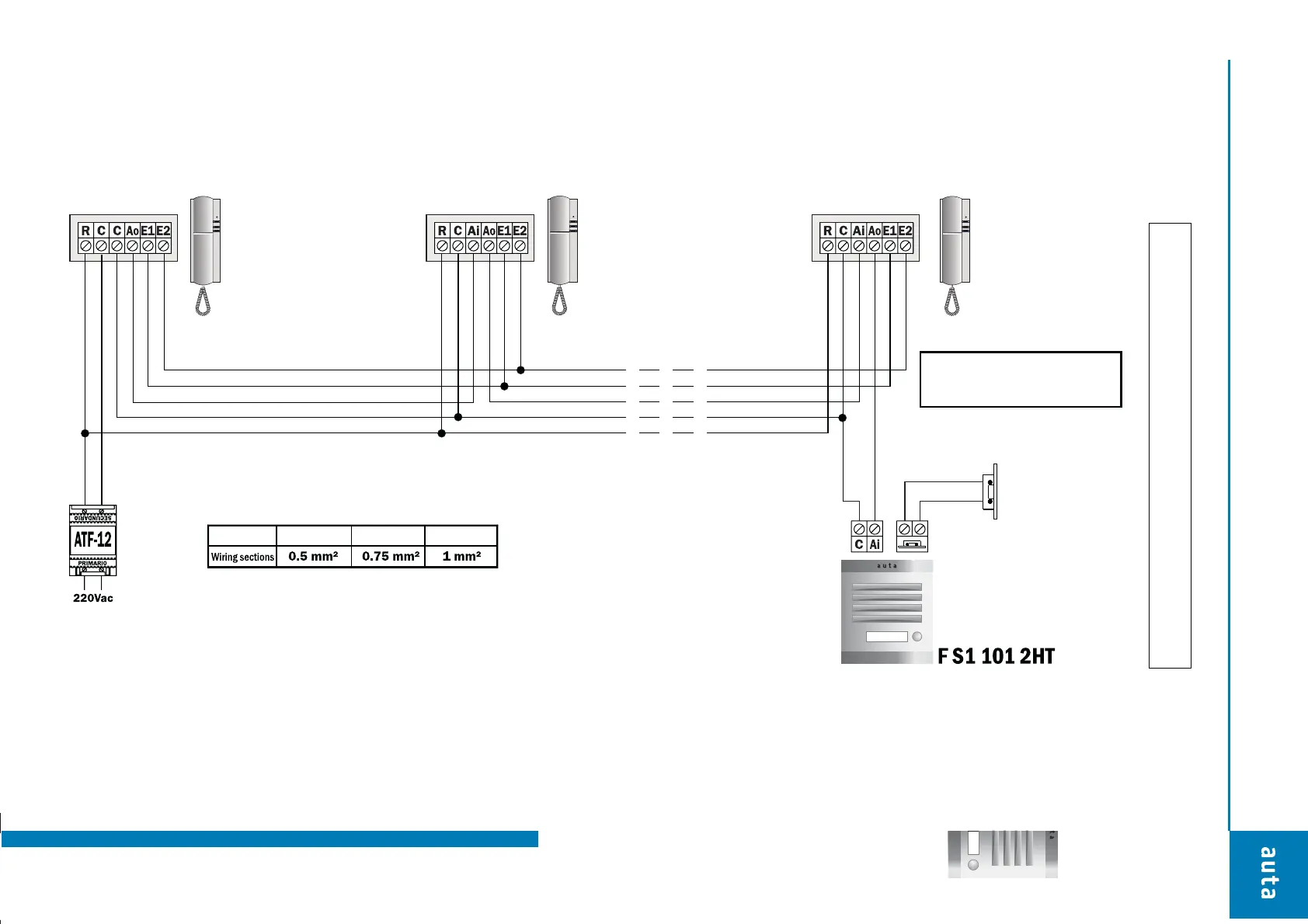

Installation with 3 extensions
2HT COMPACT
PHONE
(MAIN)
2HT COMPACT
PHONE
(EXTENSION)
2HT COMPACT
PHONE
(EXTENSION)
DOOR OPENER
We have to do the connection
of the external panel from the
last (extension) phone
