Auta AC-900 - Video Door Entry System

ATF-98
OR
ALV-DIGITAL
ATF-98
OR
ALV-DIGITAL
DIGITAL COMPACT MONITOR
DIGITAL
5
VIDEO DOOR ENTRY SYSTEM
1 ACCESS 2 ACCESSES
5
Material and Functioning

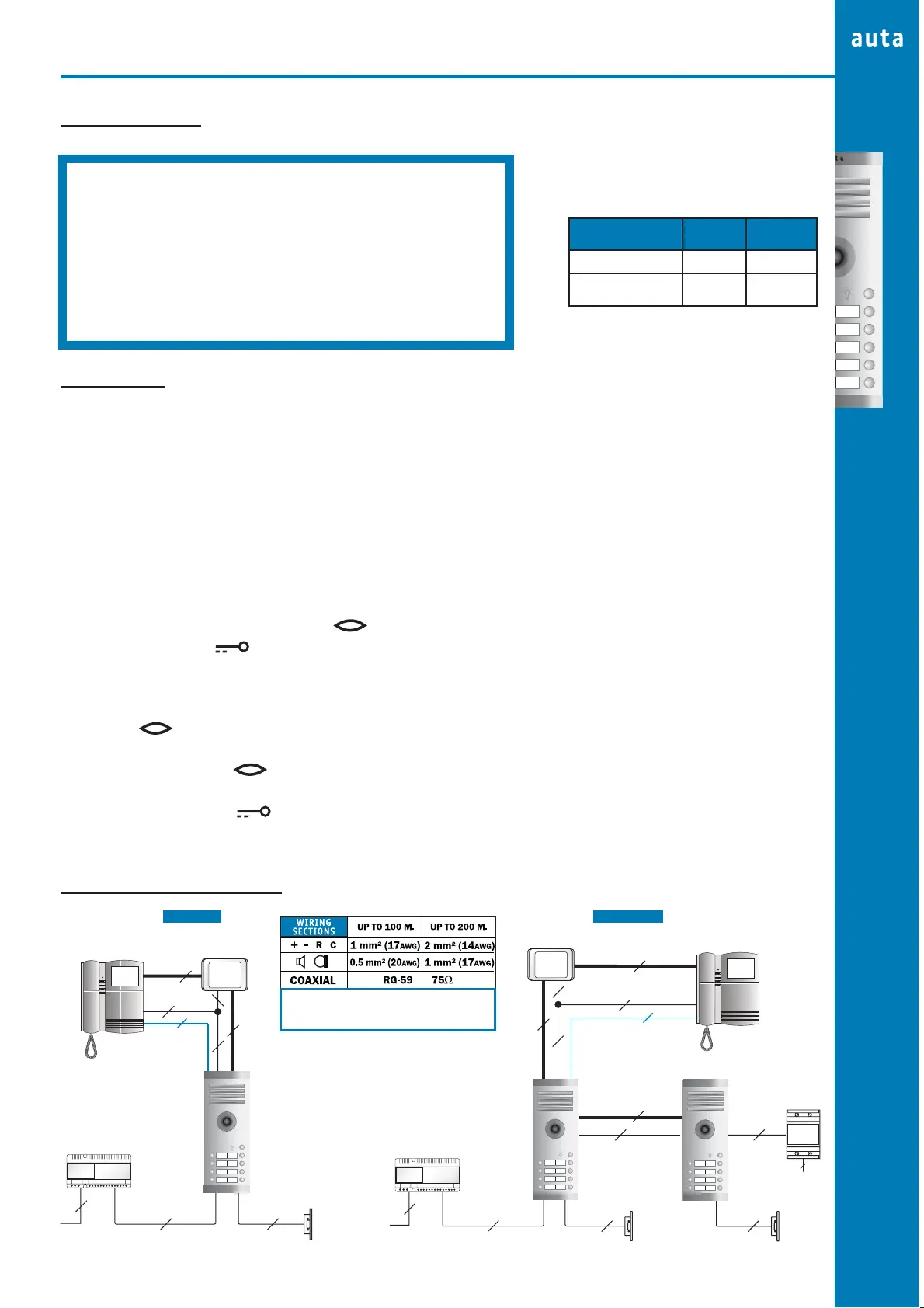

Schematic representation
Functioning
Call from the outdoor panel
In the digital system the call is done in 2 phases:
1st phase: Pressing the push-button the panel deivers a confirmation tone.
2nd phase: Releasing the push-button the code is transmited and the corresponding phone would ring 4 times during 30 seconds.
Traffic LED on the panel. Red LED means line engaged.
Monitor / Phone status
ON: Green LED on.
Line engaged: Red LED on.
Call
The screen light ON when a call is recived on the monitor. The monitor would ring 4 times during 30 seconds, after the 30 seconds the
monitor would turn off.
The comunication can be cancelled by pressing (
). Lift the hanset up to get audio.
To release the door press ( )
Auxiliary Monitor
The auxiliary monitor will not get picture but when lift up the handset or doing self-starting.
Self-Starting
Video; press (
) button, there is no need to lift the handset up.
Audio - Video
Lift the handset up and press ( ) button. Communication time is 90 seconds.
Call to guard porter
Lift the handset up and press (
) button. Communication time is 90 seconds.
Remark:
The electrical strike is activated by 2 second impulses.
(1) Units depending on installation
(2) See series and outside panel reference
in the catalogue
(3)
List of Materials
COMPONENTS NAME UNITS REF.
Monitor Digital compact monitor (1) 750198
Distributor video DVC-4S (1) 750498
Outside panel PD DIGITAL FV (2) 6*****
Mounting Box Mounting Box (2) 50902*
Power Supply ATF-98 (3) 715103
ALV DIGITAL (3) 715003
ALV DIGITAL 3.5A (3) 715403
Aux. power supply ATF-12 (1) 715203
Module of control Module of control (1) 600005
Module files columns Module rows and columns (1) 600002
Door opener Door opener (1) 720001
*The power supply unit ALV-DIGITAL 3.5A does not give A/C current
(R-C). So it has to be installed with and ATF-12 power supply unit
to release the electrical strike & to light the cardholder
POWER SUPPLY
ATF-98
10
UP TO
PHONES
UP TO
MONITORS
20
ALV-3.5A + ATF-12*
40
80
*If the installation has less than 40 monitors
and the distance is shorter than 50 mts., the
negative wire of the rise can be supressed
4
2
Door Opener
2
Abrepuertas
4
2
PD DIGITAL FV
PD DIGITAL FV
3
1
2
220 Vac
3
4
2
Door Opener
PD DIGITAL FV
3
1
DIGITAL COMPACT MONITOR
2
220 Vac
220 Vac
2
1
1
COAXIAL
COAXIAL
DVC-4S
COAXIAL
COAXIAL
DVC-4S
COAXIAL
3
ATF-12
