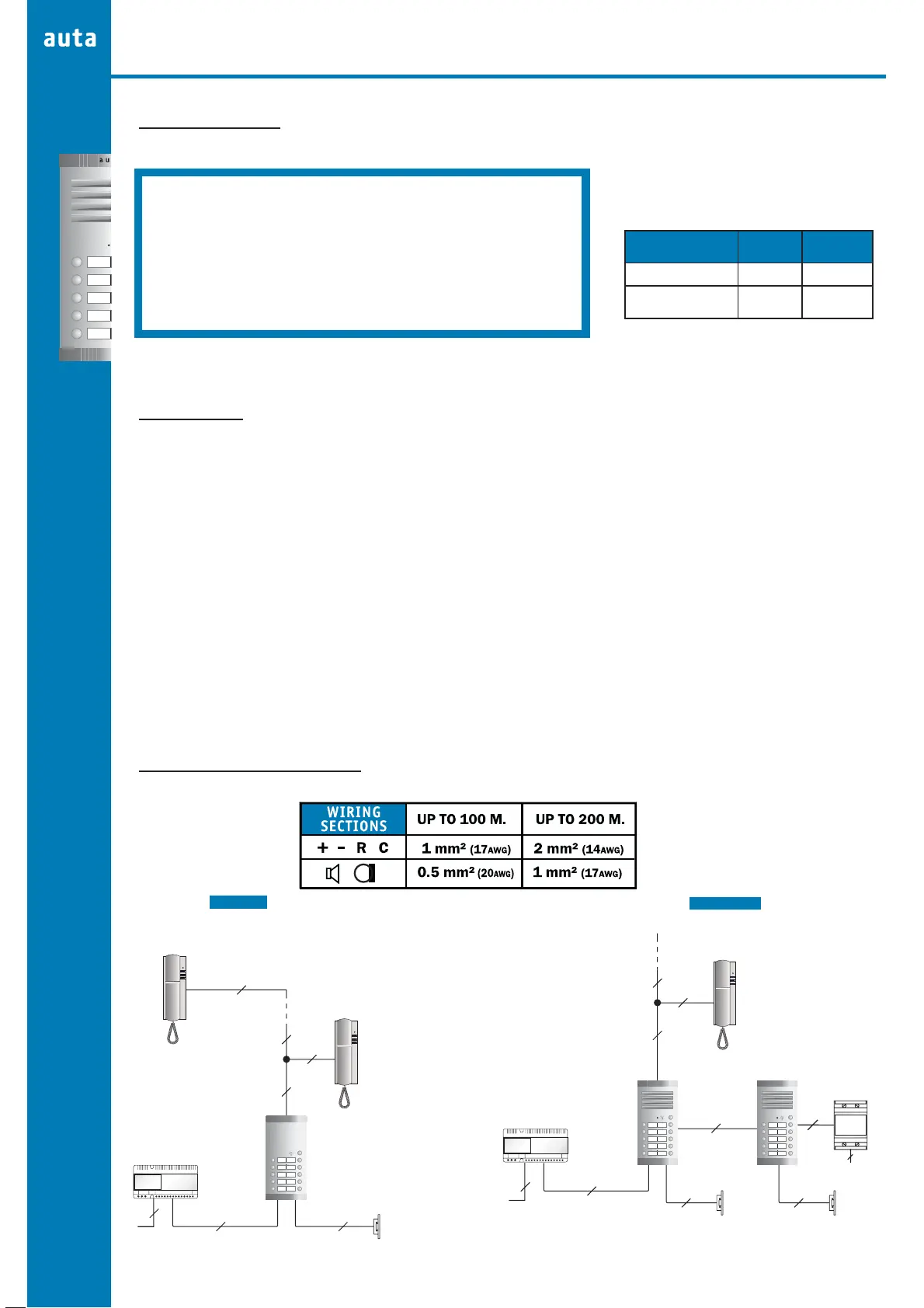

Auta AC-900 - Digital System - Core Components and Functioning; List of Materials and Functioning

4
2
4
PD DIGITAL F
4
4
2
220 Vac
4
2
2
220 Vac
2
PD DIGITAL F
4
2
Door Opener
4
PD DIGITAL F
4
4
2
220 Vac
4
DIGITAL COMPACT
PHONE
DIGITAL COMPACT
PHONE
DIGITAL COMPACT
PHONE
Door Opener Door Opener
ATF-98
OR
ALV-DIGITAL
ATF-98
OR
ALV-DIGITAL
DIGITAL
4
DOOR ENTRY SYSTEM
DIGITAL
1 ACCESS
2 ACCESSES
4
4
Material and Functioning
Schematic representation
List of Materials
Functioning
Call from the outdoor panel
In the digital system the call is done in 2 phases:
1st phase: Pressing the push-button the panel delivers a confirmation tone.
2nd phase: Releasing the push-button the code is transmitted and the corresponding phone would ring 4 times during 30 seconds.
Traffic LED on the panel. Red LED means line engaged.
The call can be readdressed by pressing another push-button.
Picking up the phone's hanset the communication stars. Red LED on the panels means line engaged.
Pressing the door release button at the phone the door will be released.
Communication will be finished by hanging up the hanset or after 90 seconds.
Remark:
The electrical strike is activated by 2 second impulses.
COMPONENTS NAME UNITS REF.
Phone Digital compact phone (1) 700105
Outside panel PD digital F (2) (2) 6*****
Mounting box Mounting box (2) 50902*
Power supply ATF-98 (3) 715103
ALV 3.5A (3) 715403
Aux. power supply ATF-12 (1) 715203
Module of control Module of control (1) 600005
Mod. files and columns Mod. rows and columns (1) 600002
Door opener Door opener (1) 720001
(1) Units depending on installation
(2) See series and outside panel reference
in the catalogue
(3)
*The power supply unit ALV-DIGITAL 3.5A does not give A/C current
(R-C). So it has to be installed with and ATF-12 power supply unit
to release the electrical strike & to light the cardholder
POWER SUPPLY
ATF-98
10
UP TO
PHONES
UP TO
MONITORS
20
ALV-3.5A + ATF-12*
40
80
ATF-12
