Additional Accessories
The Digital Inspection Camera and its fittings are the additional accessories.
Both sizes (8.5 mm and 5.5 mm) of the imager head are optional and available
for purchase along with the standard MaxiSys tool kit.
Digital Inspection Camera

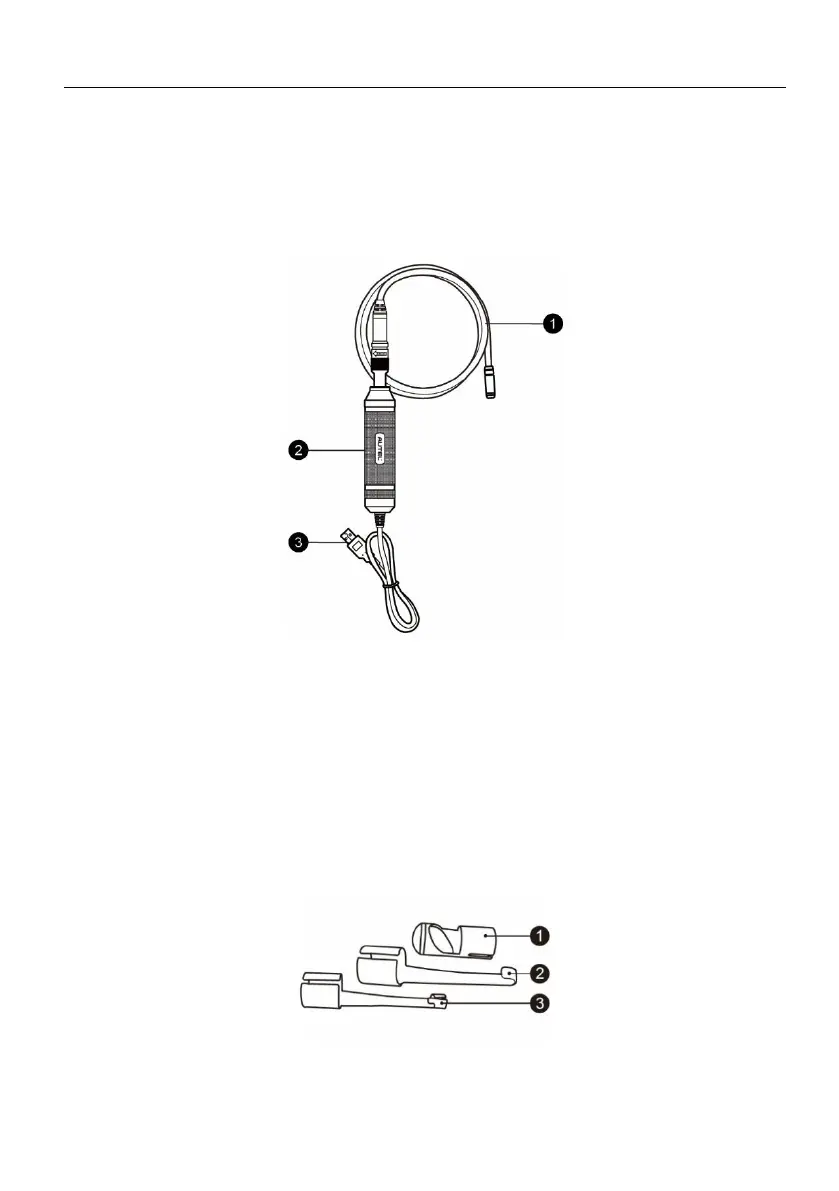

Figure 16-1 Digital Inspection Camera
1. Removable Imager Head Cable – connects to the tool when performing
digital inspections for image and video viewing.
2. Handgrip – ergonomically designed handle for comfortable grips and
agile operation.
3. USB Cable – connects the Digital Inspection Camera to MaxiSys tablet.
Imager Head Accessories
Figure 16-2 8.5mm Imager Head Accessories
1. Magnet – picks up small metal objects, such as dropped rings or screws.
