Automated Logic RC642D User Manual

14
NOTE Connect the shield wire to the GND terminal with the ground wire.
Dry
contact
Gnd
Gnd
Gnd

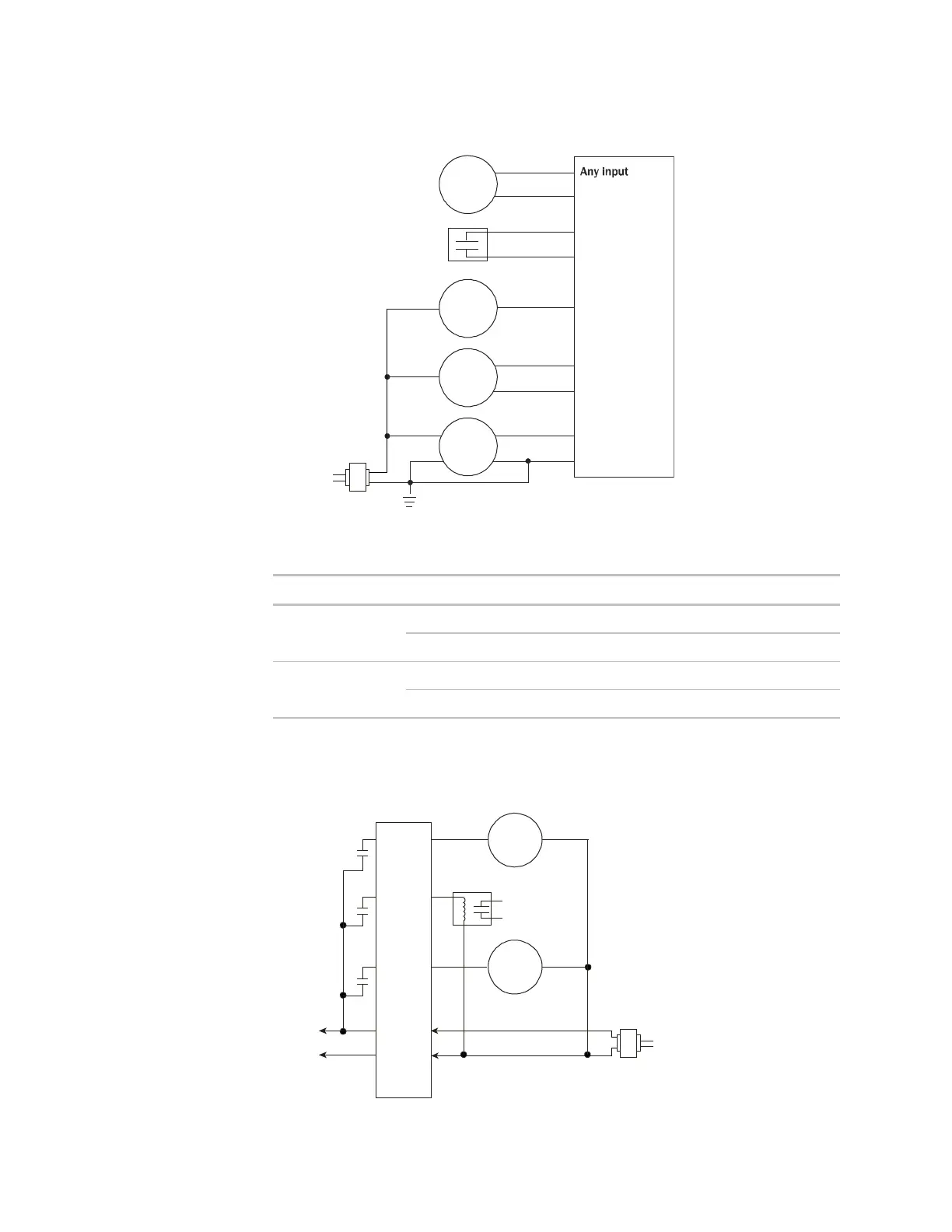

Any input
Input 3 & 4 only
Input 3 & 4 only
Input 3 & 4 only
Gnd
Gnd
Thermistor
24 Vdc
half-wave
power
supply
2 wire
3 wi
re
4 wir e
Out
V+
Gnd
Out
V+
n/c
Ou
t +
Out -
V+
Gnd
0-5 Vdc
0-5 Vdc
0-5 Vdc
4 Set the UI-3 and UI-4 jumpers.
If...
Is used for...
Then...
Input 3 Dry contact Put on
UI-3 Jumper
0-5 Vdc Remove
UI-3 Jumper
Input 4 Dry contact Put on
UI-4 Jumper
0-5 Vdc Remove
UI-4 Jumper
5 Connect the digital output wiring to the screw terminals on the Room Controller and to
the controlled device.
24 Vac
Motor
Valve
Any DO
Any DO
24 Vac in
Com
Control
Module
Power
Any DO
