8.2.2. PROCEDURE FOR A SOLUTION 3 OR 4

The procedure is almost identical for a solution 3 or 4 gate.

However, in this case the stop is reversed and the lever movement is therefore counter-clockwise. It is therefore more

convenient to make this movement with the right hand and to accompany the movement of the boom with the left hand.

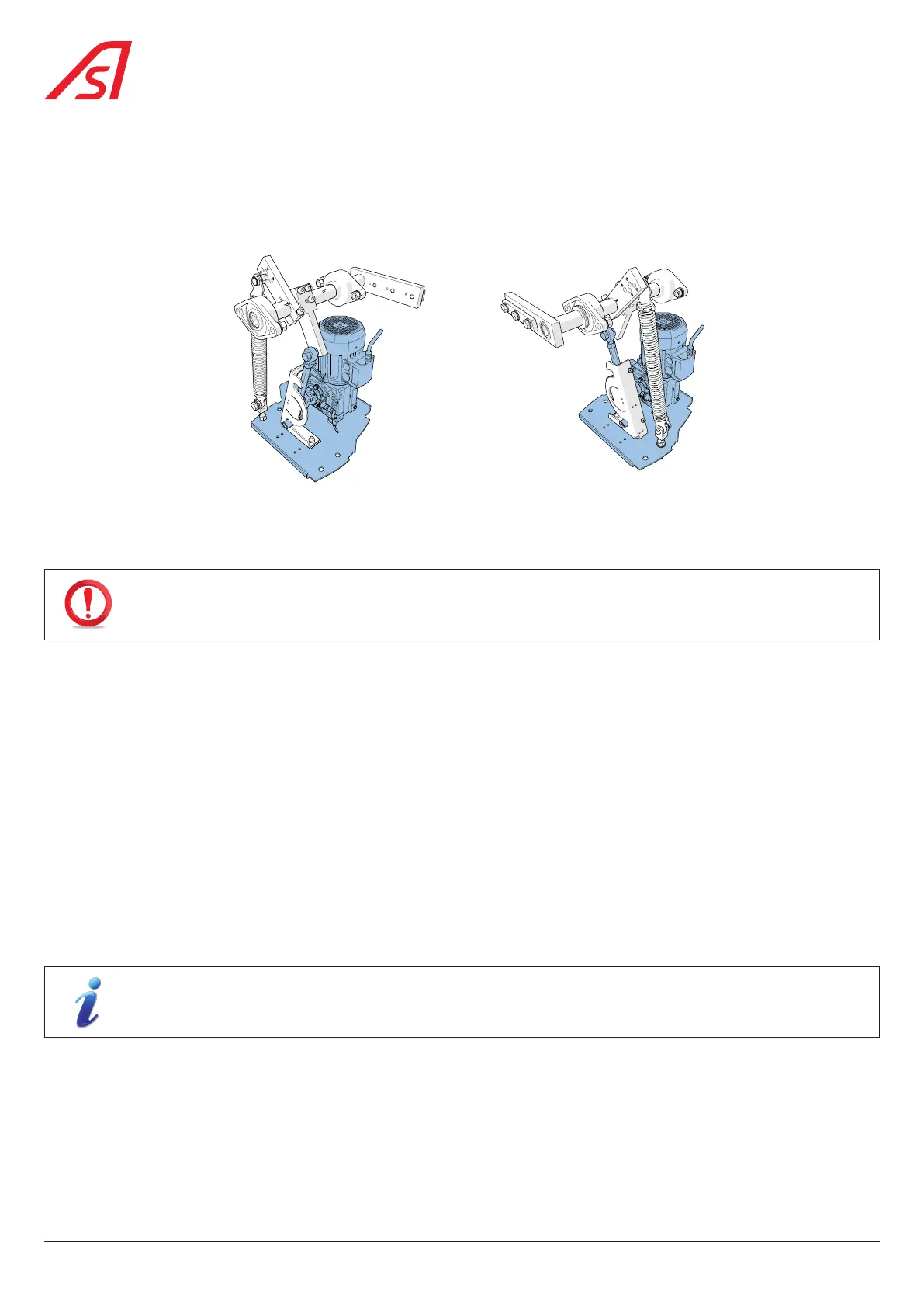

Fig. 37 - Solution 1 Fig. 38 - Solution 3

8.3. MAINTENANCE

MAINTENANCE OPERATIONS MUST BE CARRIED OUT IN COMPLIANCE WITH THE SAFETY WARNINGS STATED IN CHAPTER 1.

Unlock and remove door ( Rep. 5, Fig. 1, page 9) without damaging the ground wire that connects it to the housing.

Switch off the circuit breaker ( Rep. 24, Fig. 1, page 9).

If necessary, remove the cover ( Rep. 2, Fig. 1, page 9) without damaging the ground wire that connects it to the housing.

After the first 1000 operations, check the adjustment of the analog sensor ( Chap. 7.6, page 33).

Every 6 to 12 months, depending on the traffic level:

• Check all the adjustments described in Chapter 7.

• Check that all the nuts and screws of the mechanical unit are tight.

• Check that all the electrical connections are tight.

• Check if the arm can be stopped by hand in the course of movement, both at opening and at closing. If not, check the

balance adjustment ( Chap. 7.2, page 29).

• Dust and clean the interior of the housing.

• Clean the outside of the housing and the arm by means of a soft cloth impregnated with a non-aggressive detergent.

• For the countries with a lot of sun, it is also advised to treat the outside of the body with a glossing product.

• Clean the stainless steel parts/options to prevent deposition of metallic particles (approved product reference 0/6031/000).

The frequency of maintenance must be adjusted to the conditions of use of the equipment, in particular when it

is located in an oxidizing atmosphere: near the sea, industrial environment, etc.

• Lubricate rod ends ( Fig. 28, page 32) with anti-corrosive multifunction grease.

• Lubricate the bearings ( Rep. 8, Fig. 2, page 9) and check the wear state of pivots and rings of the balancing spring.
