6.2. PLACING THE EQUIPMENT
• Bring the equipment on site by means of an appropriated handling device (hand truck or equivalent).
• Unlock and remove the side door (5). The keys are attached on the arm’s fixing clamp (7).
• Unlock and to remove the cover (2).
• Strip the cable jacket starting from 50 cm from the ground.
• Remove the wooden slats attached to the bottom of the housing.
FASTENING ON A CONCRETE BASE FASTENING ON A RAISED BASE (OPTION)
While avoiding damaging the fixing bolts, place the barrier
on its base according to the chosen command solution
(position of the arm in relation to the door and the road:
page 18).
Drill 4 holes Ø 15 mm x 85 mm thickness, clean them
by blowing and fix the raised base in the floor with the
expandable screws (40). Tighten to 40 Nm.
WARNING: the provided expandable screws are intended to
be fixed in concrete (class C20/25 to C50/60). Adapt the
fixing means to the nature of the support.
Introduce the two fixing clamps (23) into the housing onto
the fixing bolts (27).
Secure the housing to the base plate by tightening the
clamps (23) n the fixing bolts by means of the flat washers
(35) and nuts (36) supplied.
Place the barrier on the raised base and secure it by
tightening the clamps (23) din the base using the screws
(42) and washers (41) supplied.
36
35
23
38
27
34
37

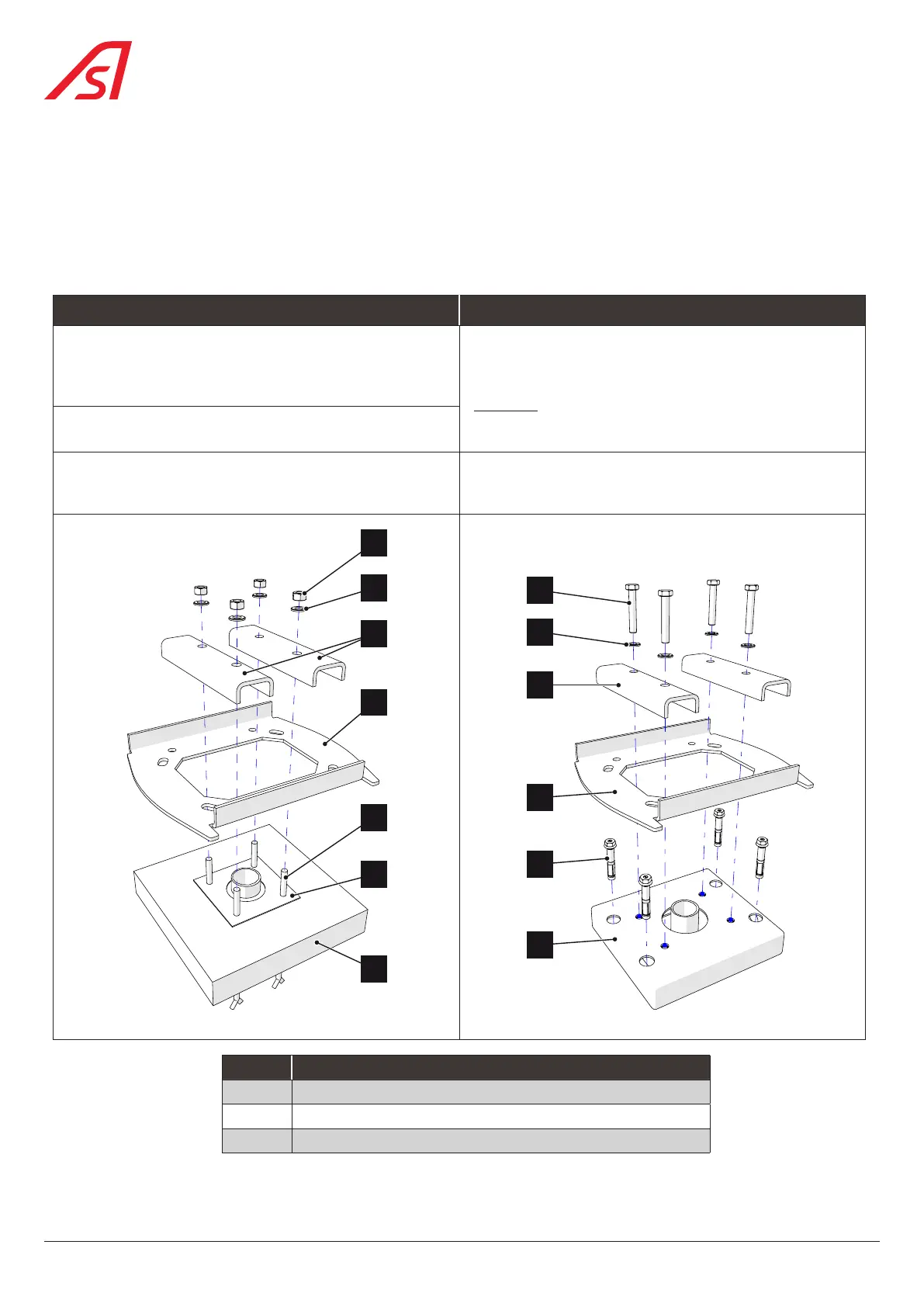

Fig. 6 - Fixing on a concrete base
42
41
23
38
40
39
Fig. 7 - Fixing on a raised base
REP. DESIGNATION
37 Concrete base
38 Base of the housing
39 Raised base
