Autonics TK4M User Manual

6 Parameter Settings and Functions
56 © Copyright Reserved Autonics Co., Ltd.
6.2 Control Output
6.2.1 Control Output Mode [PAR3 → O-FT]
 Control output modes for general temperature control include heating, cooling, and
heating and cooling.
 Heating control and cooling control are mutually opposing operations with inverse
outputs.
 The PID time constant varies based on the controlled objects during PID control.
Setting
Group
Parameter Setting Range
Factory
Default
Unit
PAR3
O-FT
Standard Model:
HEAT
/
COOL
HEAT
-
Heating/Cooling Model:
HEAT
/
COOL
/
H-C
H-C
-

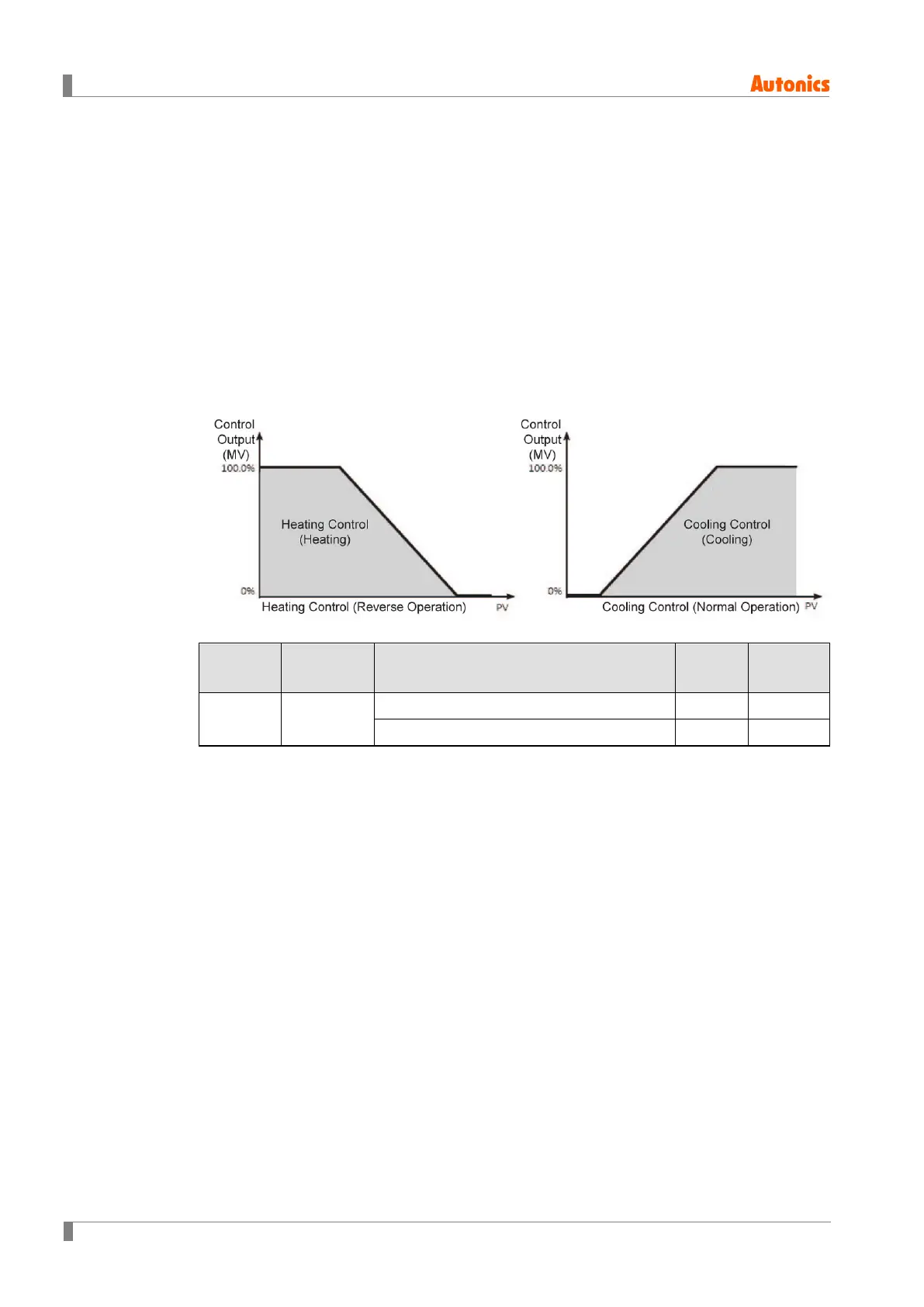

6.2.1.1 Heating Control [PAR3 → O-FT → HEAT]
Heating control mode: the output will be provided in order to supply power to the load
(heater) if PV (Present Value) falls below SV (Setting Value).
6.2.1.2 Cooling Control [PAR3 → O-FT → COOL]
Cooling control mode: the output will be provided in order to supply power to the load
(cooler) if PV (Present Value) rises above SV (Setting Value).
