Autonics TK4M User Manual

6 Parameter Settings and Functions
© Copyright Reserved Autonics Co., Ltd. 51

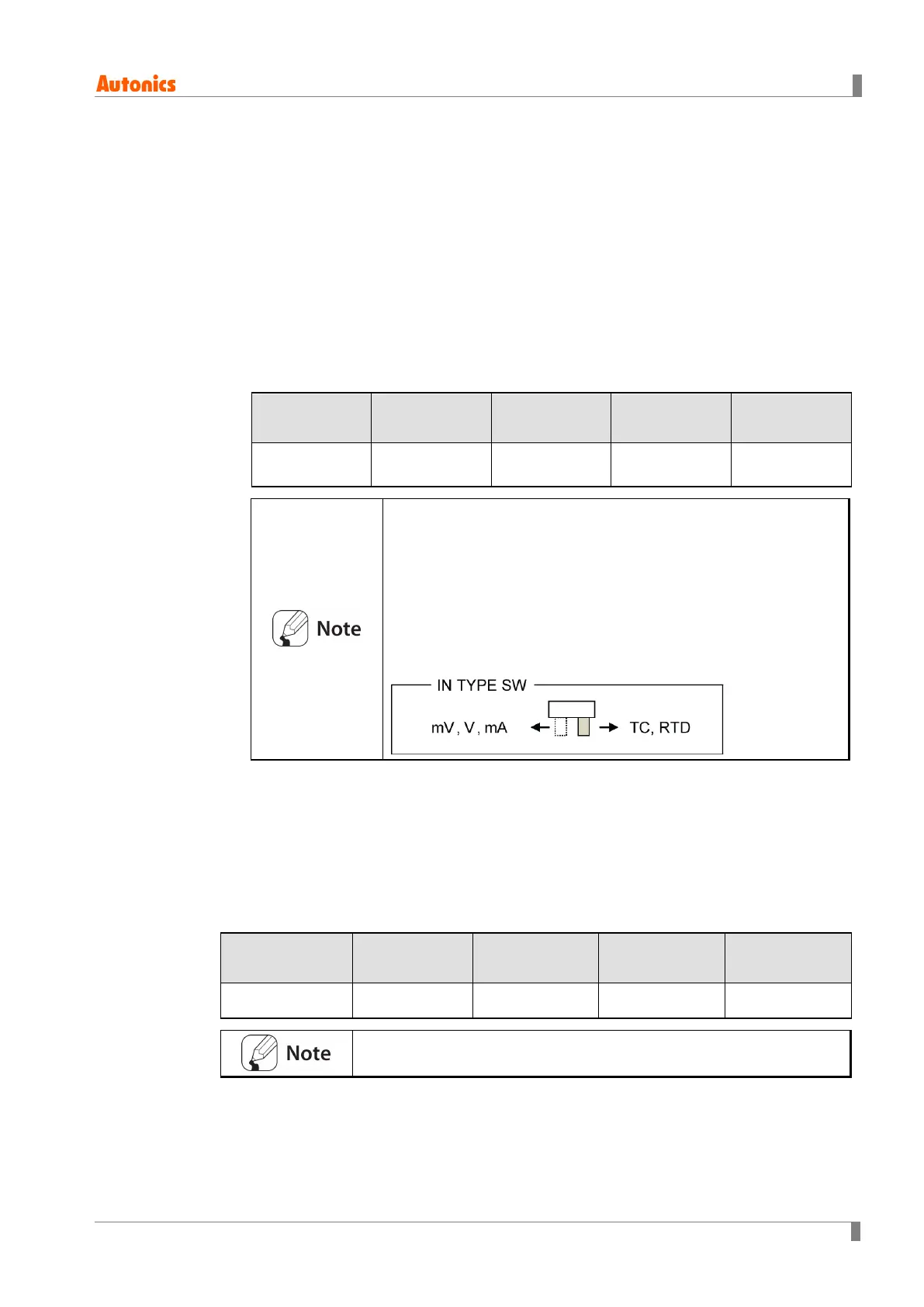

6.1.2 Input Type Settings [PAR3 → IN-T]
 This product supports multiple input types, making it possible for the user to choose
from thermocouples, resistors, and analog voltage/current.
 If you change the input specification, the SV's upper/lower limits are automatically set
to the new specification's max/min values for temperature sensors. As for analog
inputs, upper/lower input values are set to the max/min temperature range and the SV
upper/lower limits set to upper/lower scale values. Therefore, you need to reconfigure
the settings.
Setting
Group
Parameter
Setting
Range
Factory
Default
Unit
PAR3
IN-T
Refer to
section 6.1.1.
KCA.H
-
 If you change the input selection switch position, the temperature
sensor input is reset to
KCA.H
. Only the input types of
thermocouple/RTD are displayed. In addition, analog input is
reset to AV1 and only the input types of analog voltage/current
are displayed. Make sure to reconfigure the input types after
changing the input selection switch position.
 The scope of Setting Values will be limited depending on the
setting of the input selection switch, which is located on the
underside of the product.
6.1.3 Temperature Unit Settings for Input Temperature
Sensor [PAR3 → UNIT]
When selecting the input temperature sensor, you can set the desired units of
temperature/scale value to be displayed.
Setting Group Parameter Setting Range
Factory
Default
Unit
PAR3
UNIT
?C
/
?F
?C
-
This parameter will not be displayed if analog input has been selected.
