Before You Start
• Before scanning a vehicle,
the EZ-SCAN scanner
must be correctly config-
ured for your vehicle.
Refer to “Setup /
Operating Instructions” on
page 8 if you need to con-
figure the scanner.
Data Communications Link
(DCL) Scan
This scan displays live opera-
tional data from vehicles that sup-
port DCL. Certain vehicles from
1989 to 1995 support the DCL
scan.
1. Connect the EZ-SCAN scan-
ner cable to the scanner and to
the vehicle EEC-IV computer
connector, then press
POWER
to display the EZ-SCAN scan-
ner opening screen.
2. Turn the vehicle ignition key to
ON or start the engine.
3. Vehicles that support DCL will
display a Scan menu. Use the
arrow keys until
2-DCL Data
Scan
is highlighted, then
press
ENTER.
4. When the scanner is ready to
scan the vehicle,
ENTER to
Page 38

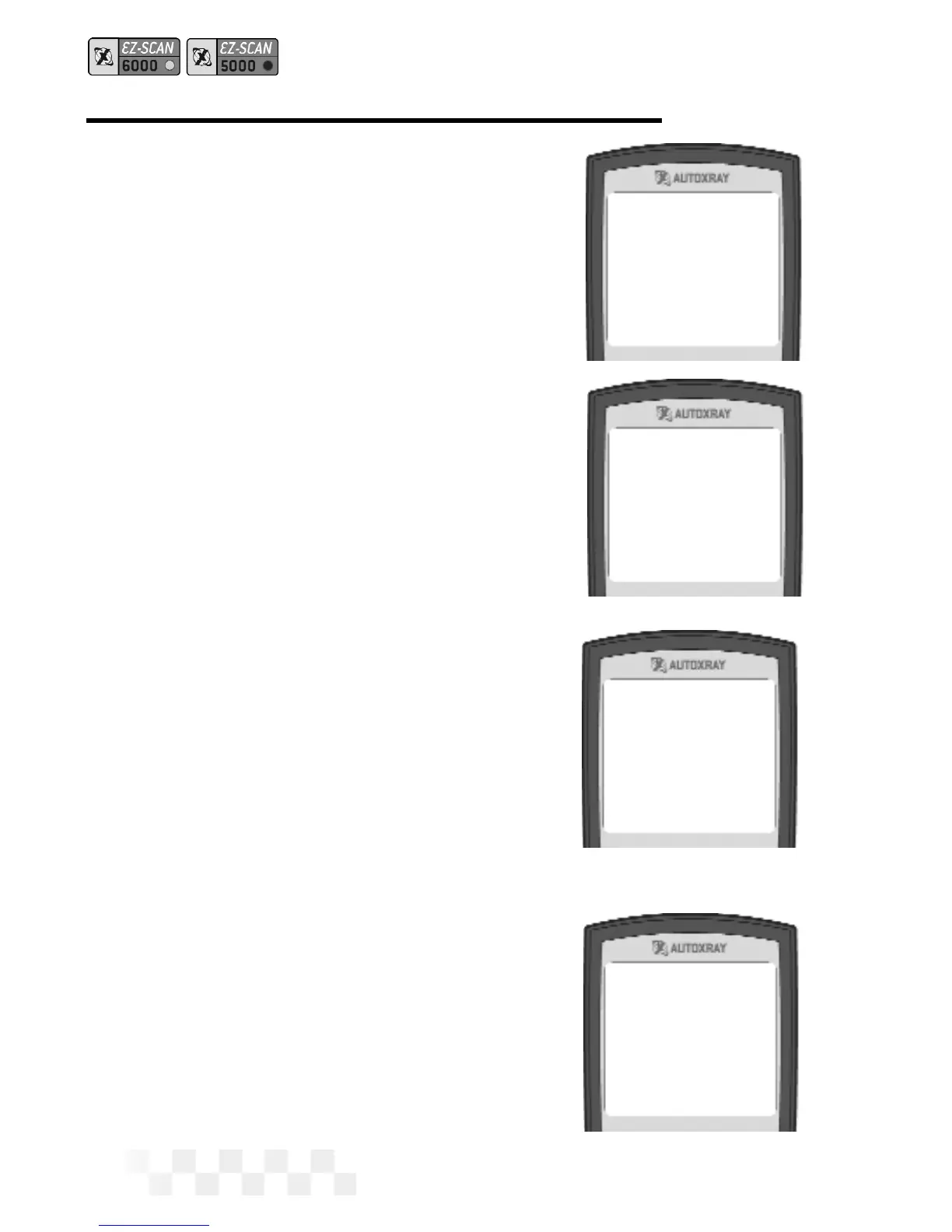

AutoXray 6000
FORD ‘90 VIN=N
1-KOEO/KOER Scan
2-DCL Data Scan
Enter to Scan
Scan to Exit
*Scanning Data*
Please Wait
SCAN THE DCL DATA - FORD
To Next Page
