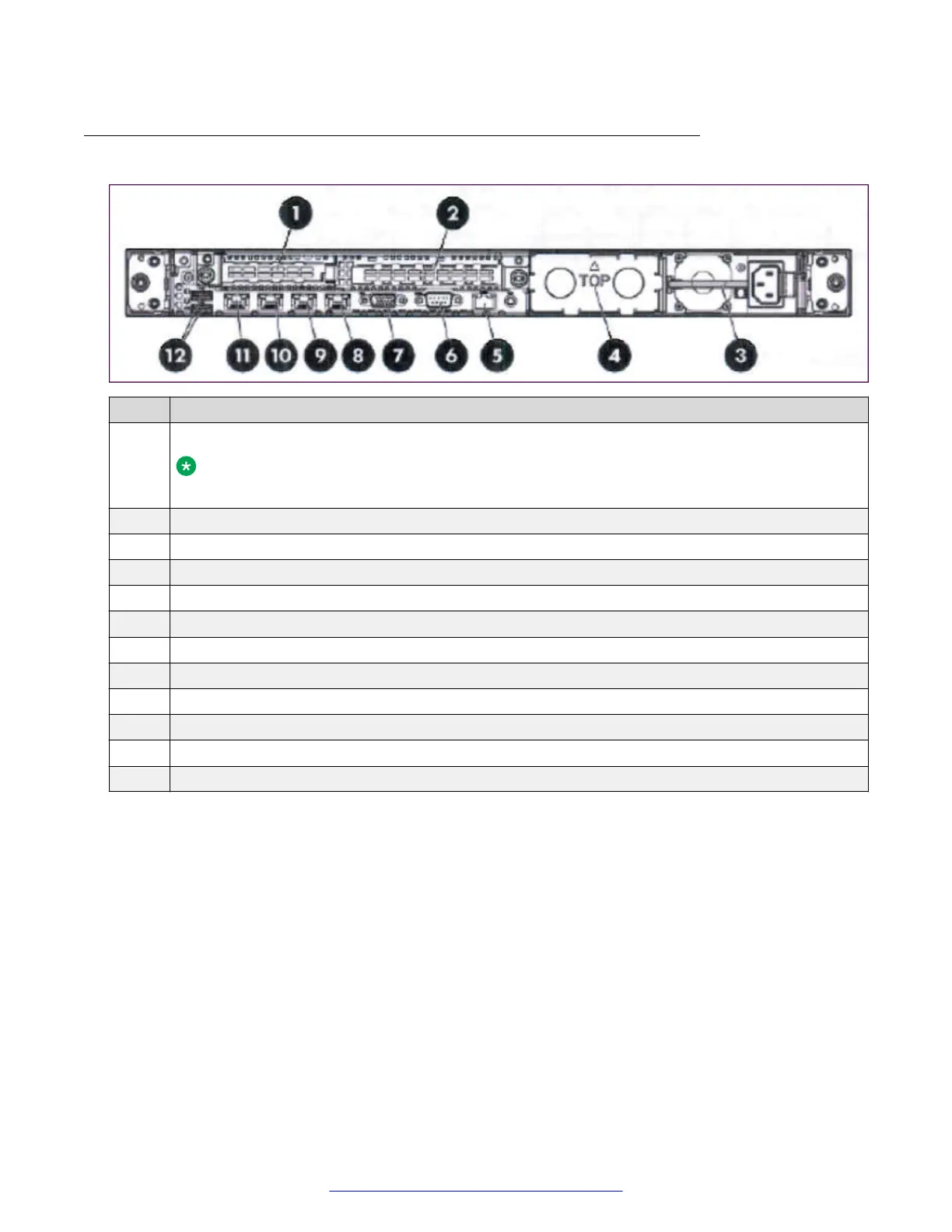

Back view of HP DL360 G7 Server
No. Description
1 Slot 1 PCIe2 x8 (8, 4, 2, 1) with 2 NIC ports.
Note:
Servers ship with a PCIe card with 2 NIC ports.
2 Slot 2 PCIe2 x16 (16, 8, 4, 2, 1), 75W +EXT 75W*
3 Power supply bay 1
4 Power supply bay 2
5 iLO 3 connector
6 Serial connector
7 Video connector
8 NIC 4 connector
9 NIC 3 connector
10 NIC 2 connector
11 NIC 1 connector
12 USB connectors (2)
*This expansion slot provides 75 W of power to an adapter, with an additional 75 W of power
supplied by external power.
Hardware overview
24 Deploying Avaya SBCE August 2015
