Assembly
AVENTICS | ECS Actuator | R417002911–BDL–001–AA 21
English
The maximum length of the push/pull cable must not
exceed 3m. Do not bend the cable tighter than 200mm.

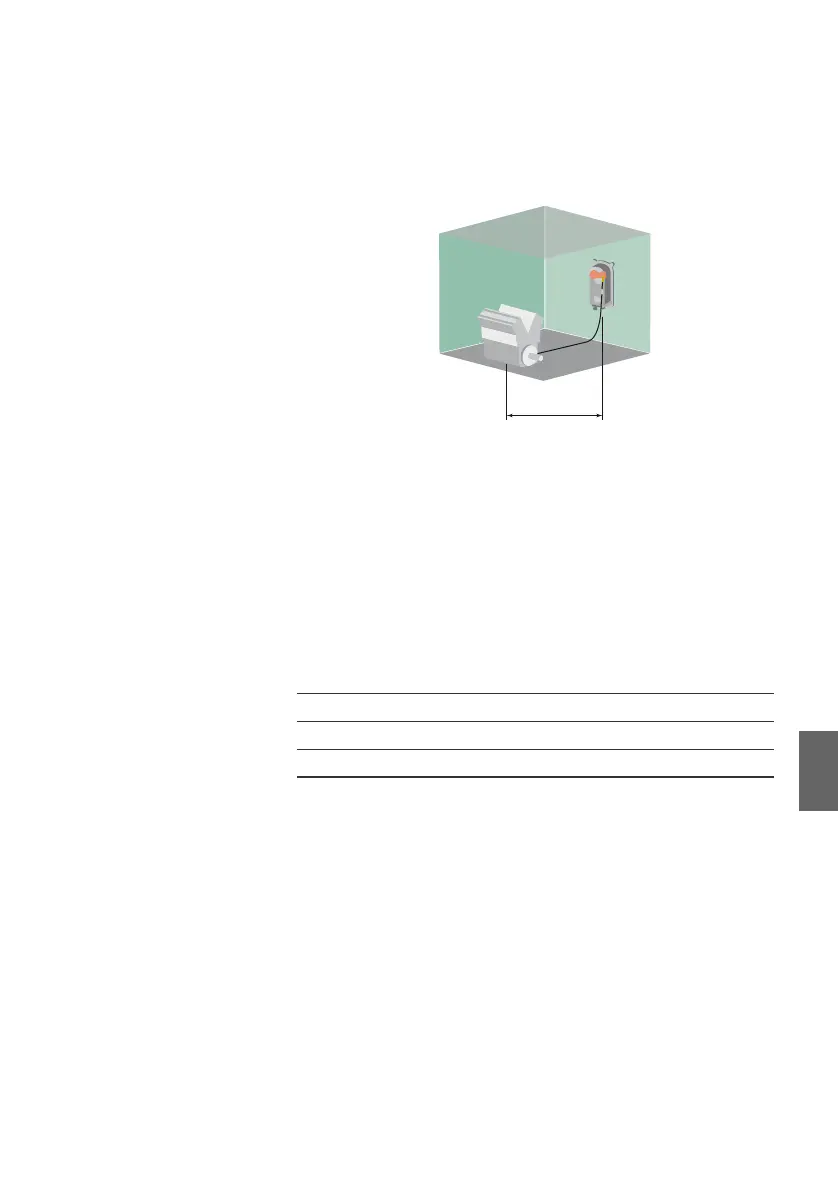

Fig. 4: Installation in the engine room
W With 12-V-systems, the connection point of the power
supply may be 5m away at maximum, 10m with 24-V-
systems. Even under full load of all consumers connected,
the power at the connection point must not fall below -25%.
Prepare the assembly of the Marex ECS Actuator:
1. Make sure that all Marex ECS components are powered off
before installing the Marex ECS Actuator.
Table 7: Max. cable lengths
Power 12V 5m max.
Power 24V 10m max.
Propulsion 250m max. total length
Push/Pull (mechanical) 3m max.
max. 3 m
