Assembly
22 AVENTICS | ECS Actuator | R417002911–BDL–001–AA
2. Drill the mounting bores with a diameter of 8.4mm. Use the
drilling template which is included in the delivery to
determine the exact position of the bores.

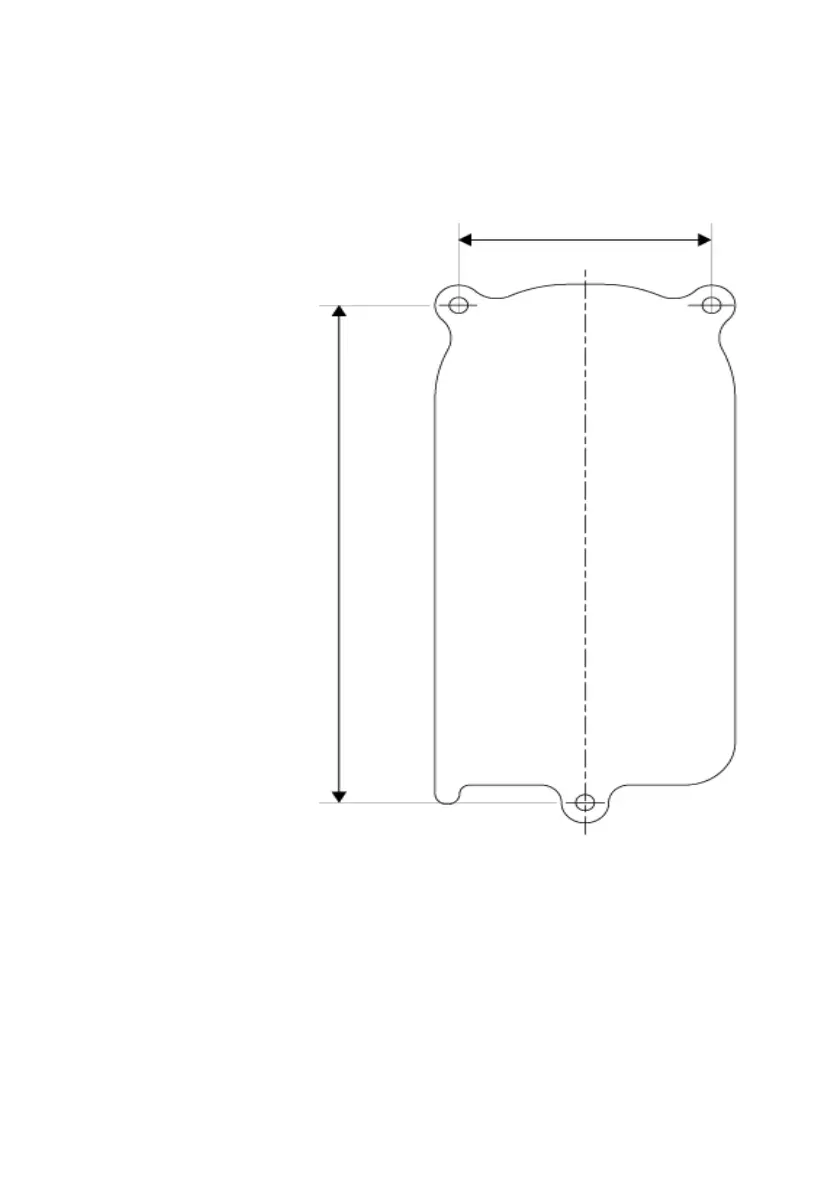

Fig. 5: Drilling template of Marex ECS Actuator
3. Mount the Marex ECS Actuator to the wall or ceiling of the
engine room (fig. 4) using the mounting material supplied
and applying the recommended tightening torque (fig. 6)7.2.
283 mm
123 mm
