S6L Network Connections 39
Example 6: Single System Expanded I/O (Mixed Stage I/O and Local 16)
112 In/64 Out
When 2x AVB Network cards are installed in the E6L engine, Local 16 I/O can be installed on the console/engine ring. Figure 7
shows a Local 16 in a system with an S6L-16C, E6L engine with 2x AVB Network cards, 2x Stage 32s, and 4x Stage 16s.
Requirements
• To use any number of Local 16s with S6L systems, two AVB-192 Network Cards must be installed in all E6L Engines.
• Local 16 requires VENUE software version 6.1 or later.
• Up to two Local 16s can be used with S6L-16C. Other S6L control surfaces support a single Local 16.
To connect components:
1 Connect S6L control surface Network port A to Network port B on the top-most AVB Network Card of the E6L engine.
2 Connect Network port A on the top-most AVB Network card of the E6L engine to Network port B on the Local 16.
3 Connect Network port A on the Local 16 to Network port B on the S6L control surface.
4 Do the following to connect Stage I/O:
• Connect
Network port A on the E6L Master 1 (lowest slot) AVB Network Card to Network port B on the first Stage 64.
• Daisy-chain the first Stage I/O to the second Stage I/O by connecting
Network port A on the first Stage I/O to Network port
B on the second Stage I/O. Repeat for any additional Stage I/O units (connect A to B).
5 Connect an Ethernet cable from Network port A on the last Stage I/O unit in the chain to Network port B on the Master 1 AVB
Network Card (AVB card in the lowest slot) on the E6L engine.
6 Proceed to Powering the System Up and Down.

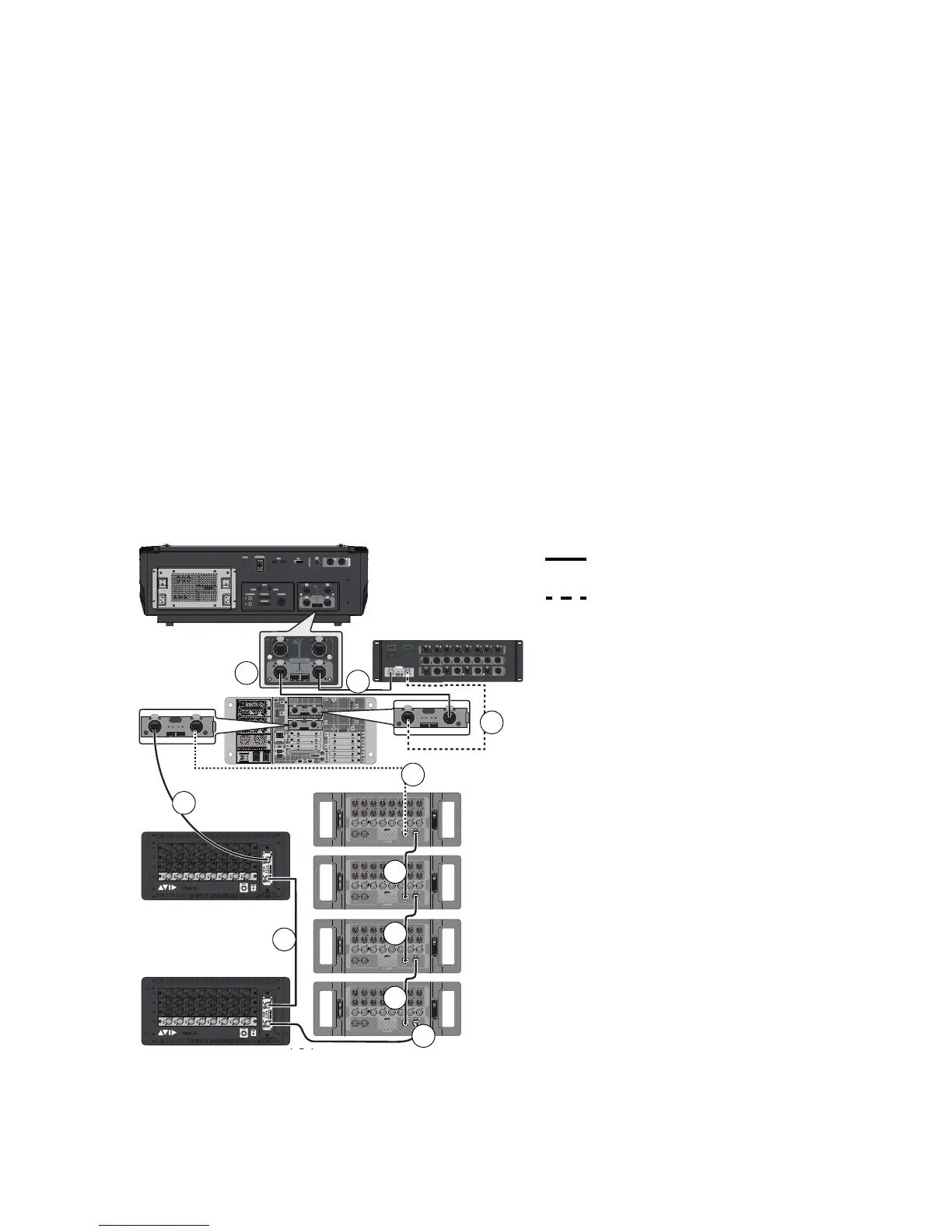

Figure 7. Expanded S6L-16 system, mixed I/O with Local 16
1.1
1.2
2
3
4
= Primary audio network connections
= Redundant audio network connections
(required)
3
3
3
3
1 2
IN
OUT
NETWORK
MASTER 1
WORD CLOCK
UTIL
EXPANSION
2
3
6
7
8
1
2
3
4
5
OKOK
A
B
AVB-192
ACT SIG ACT SIG
ACT SIG ACT SIG
A
B
AVB-192
ACT SIG ACT SIG
ACT SIG ACT SIG
A
B
AVB-192
ACT SIG ACT SIG
ACT SIG ACT SIG
A
B
AVB-192
ACT SIG ACT SIG
ACT SIG ACT SIG
A
B
INPUT
ANALOG
OUTPUT
ANALOG
OUTPUT
AES DIGITAL
INPUT
ANALOG
OUTPUT
ANALOG
NETWORK
1234 5678
INPUT
ANALOG
OUTPUT
ANALOG
OUTPUT
AES DIGITAL
INPUT
ANALOG
OUTPUT
ANALOG
NETWORK
1234 5678
INPUT
ANALOG
OUTPUT
ANALOG
OUTPUT
AES DIGITAL
INPUT
ANALOG
OUTPUT
ANALOG
NETWORK
1234 5678
INPUT
ANALOG
OUTPUT
ANALOG
OUTPUT
AES DIGITAL
INPUT
ANALOG
OUTPUT
ANALOG
NETWORK
1234 5678
Stage
32
Stage
32
ACT
SIG
NETWORK
ACT
SIG
NETW
O
R
K
POWER A
100-240 VAC 50/60Hz
POWER B
100-240 VAC 50/60Hz
2
3
4
5
1
4
4
4
4
4
