IFD500 Series Pilot Guide
4-30 Map Subsystem

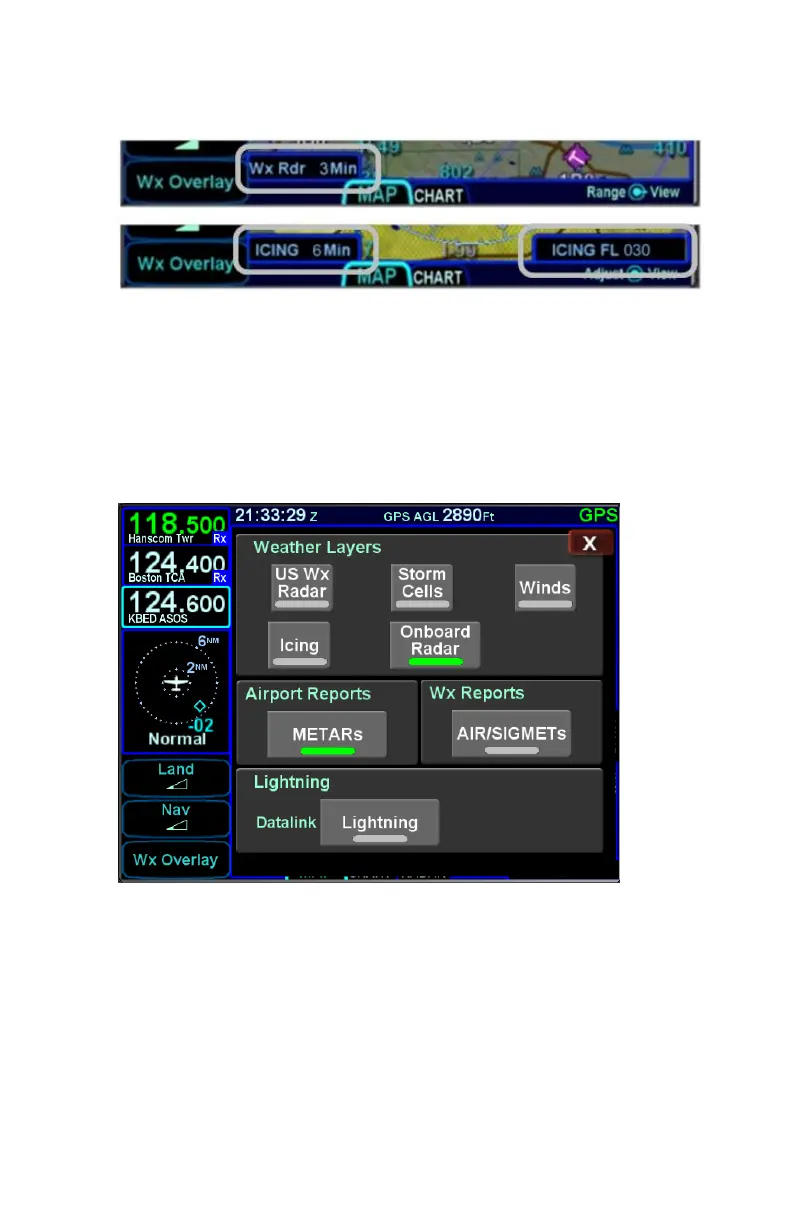

Data Age: RADAR and Icing
WEATHER RADAR SELECTION FOR MAP OVERLAY
Support for digital weather radar is an optional capability for the IFD.
When this option has been activated on an IFD, and if the IFD has
access to heading data, radar data can also be a selectable overlay
on the moving map.
Onboard Radar Selection on Wx Overlay
