IFD500 Series Pilot Guide
Navigation 6-13
VOR COURSE DEPICTION †
When the IFD is receiving selected course from an external
indicator, the Nav Source on the IFD is VLOC, and the IFD is
tuned to a VOR station, the IFD will display the inbound and
outbound radials for the selected course. The radials will be
displayed once the VOR station is decoded and will be 50nm
long.
When the aircraft is on the near side of the perpendicular course
(“To” geometry), the line will be green for the inbound radial and
white for the outbound radial.
When the aircraft position is on the far side of the perpendicular
course (“From” geometry), the line will be green for the outbound
radial and white for the inbound radial.

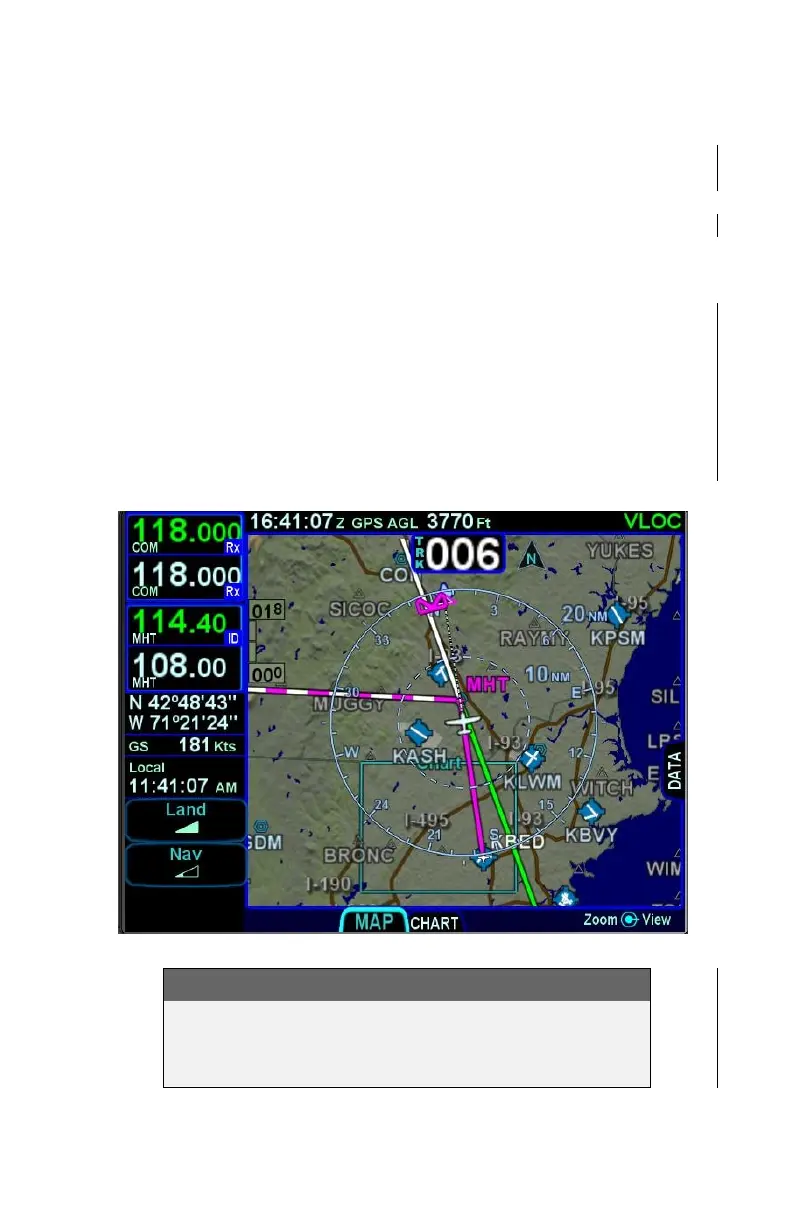

VOR Course Depiction
NOTE
If the IFD is configured to “Ignore SEL CRS for
VLOC” in Maintenance mode, the selected course
will not be depicted on the map.
