IFD500 Series Pilot Guide
SVS Subsystem 2-5

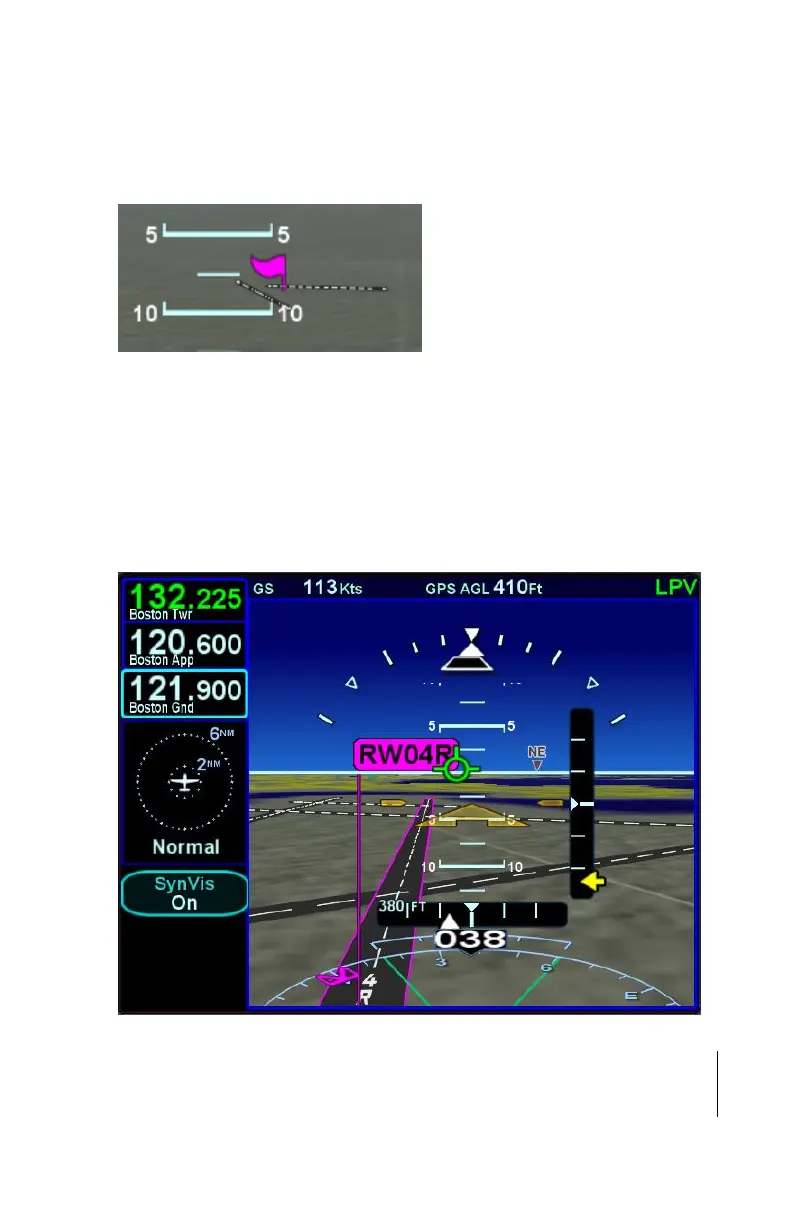

IFD receives a valid METAR, the airfield flag will be color coded
to represent the ceiling and visibility, consistent with the map.
Airport Flags
Any runway that is part of the active flight plan will be further
outlined in magenta.
Provided aircraft position is close enough to the runway, runway
numerical identification (e.g. “04”) will be visible as will centerline
markings.
SynVis Runway Depiction
The Setup Page provides a means to control whether cardinal
heading marks are shown along the horizon line.
